OnePlus 8T Battery Disconnect

Geschrieben von: Adriana Zwink

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

Keine Schätzung

Einleitung

This is a prerequisite-only guide! This guide is part of another procedure and is not meant to be used alone.

Switch off your phone.

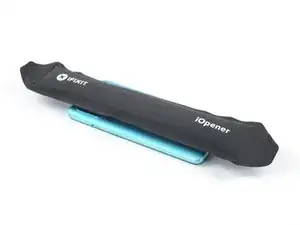

Heat an iOpener to loosen the adhesive beneath the rear glass. Apply the iOpener for at least two minutes. You might want to repeat this step several times during the rear glass removal.
A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the AMOLED display and internal battery are both susceptible to heat damage.

Apply a suction cup to the back of the phone, as close as possible to the center of the bottom edge.
If the back cover is cracked, the suction handle may not stick. Try lifting it with strong tape, or superglue the suction handle in place and allow it to cure so you can proceed.

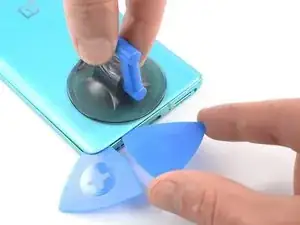

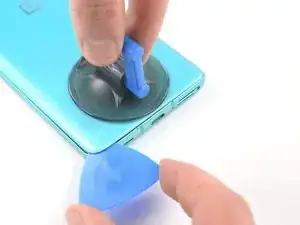

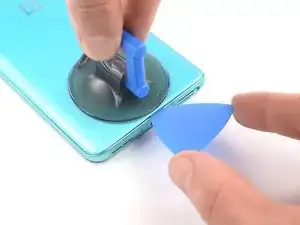

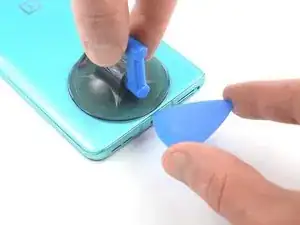

Pull on the suction cup to create a gap between the rear glass and the frame.

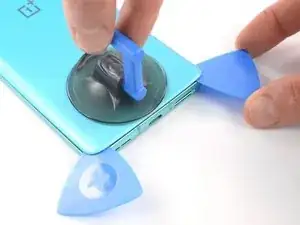

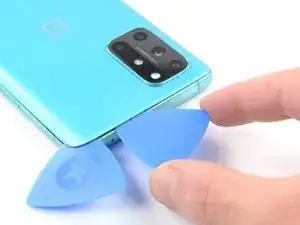

Insert the tip of an opening pick into the gap and slide it to the bottom left corner.
Leave the opening pick in its place to prevent the adhesive from resealing.

If the adhesive becomes hard to cut, it has most likely cooled down. Use your iOpener to reheat it.

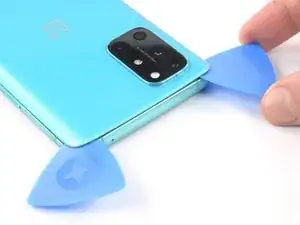

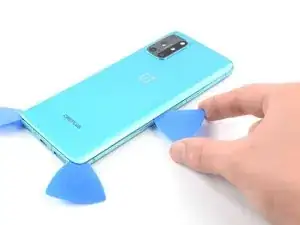

Insert a third opening pick under the bottom right corner.

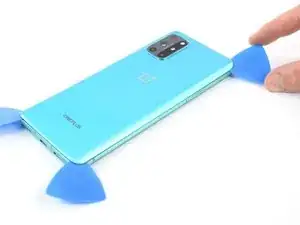

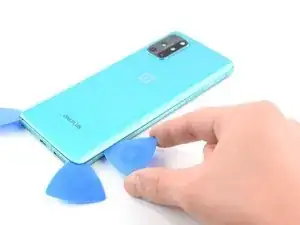

Slide the opening pick along the right edge to the top right corner.

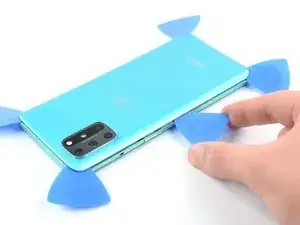

Leave the opening picks in their place to prevent the adhesive from resealing.

Note that the color wrap underneath the glass may not peel off evenly when you remove the cover. It can get a little messy.

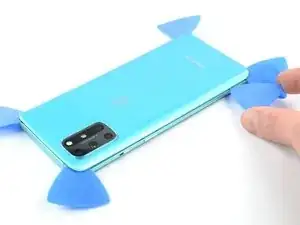

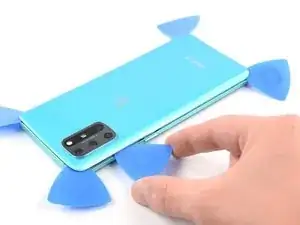

Insert a fifth opening pick under the top left corner.
Slide the opening pick along the left edge to the bottom left corner to cut the remaining adhesive.

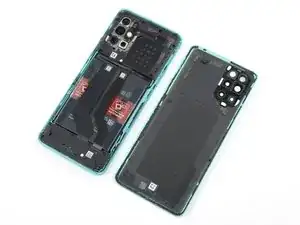

Remove the rear glass.
After installing the back cover, apply strong, steady pressure to your phone for several minutes to help the adhesive form a good bond—a stack of heavy books works well.

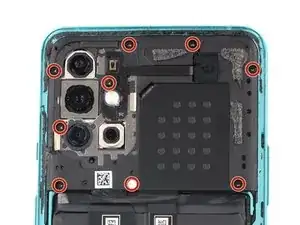

Use a Phillips screwdriver to remove the nine 3.8 mm-long screws securing the motherboard cover.

You'll have to pierce through the small round white cover to take out that screw. It's painted(?) over.

Hello Neri,
yes, there is a screw hidden under the white sticker.

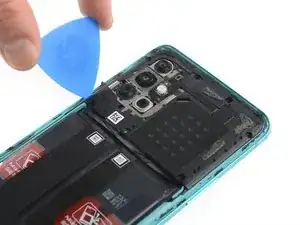

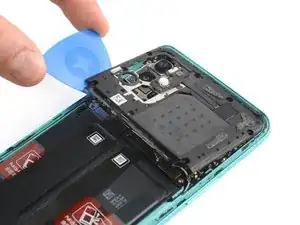

Insert the tip of an opening pick under the bottom left corner of the motherboard cover.

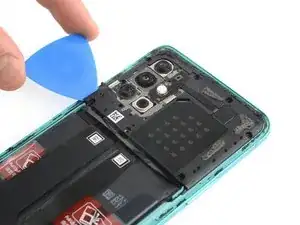

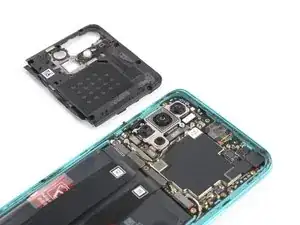

Use the opening pick to lift the motherboard cover up and release the plastic clips that hold it in place.
