OnePlus One Displayeinheit austauschen

Geschrieben von: Javier Cruz
  • Kommentare: 90
OnePlus One Displayeinheit austauschen

Schwierigkeitsgrad

Mittel

Schritte

11

Zeitaufwand

45 Minuten

Einleitung

Hier wird der Austausch der Displayeinheit gezeigt.

  1. pln4PCwsQKPt5xv2
    pln4PCwsQKPt5xv2
    GoOYFNZwEQUiebUO
    sAdoQnWEUfTRQnSO

    • Entferne den SIM Karten Einschub.

    • Entferne mit einem Plastik Opening Tool vorsichtig die Rückseite vom Gerät. Sei besonders vorsichtig um den SIM Einschub und an anderen schwachen Stellen.

    • Du spürst möglicherweise manchmal einen Widerstand von den versteckten Rasten entlang der inneren Kanten des Smartphones. Das ist nicht weiter schlimm, bewege dein Werkzeug konstant weiter in eine Richtung und springe nicht von einer Stelle zur nächsten.

    • Sobald du in einer Richtung (egal welcher) das Werkzeug halb um das Gerät bewegt hast, kannst du das Panel ganz einfach per Hand entfernen.

    • 'Es ist von äußerster Wichtigkeit, dass du vor dem Entfernen des Akkus erst den nächsten Schritt durchführst! Der Akku ist fest im Handy integriert'' und kann bei unvorsichtiger Behandlung beschädigt oder zerstört werden, sollte diese Anleitung nicht genau befolgt werden.

    It doesn't mention you have to remove SIM tray first.

    pawel -

    I used the #0 for the rear panel screws. The #00 is too small and will slip, stripping the screws if you're not extra careful.

    anonymous 2668 -

    where can i buy the battery??

    Shaun Davis -

    Has anyone answered this? I am looking too.

    Elie Daou -

    They sell it on here, although I found mine on eBay.

    Roger -

    Aliexpress for $9 (original)

    David van Ballegooijen -

    The last three hidden screws are a !&&* of a time consumer to remove. probably you would need only a certain type of tweezers - I got stuck at midway and now I cannot get go have my phone detect the sim card either probably because the six screws are removed. I can now turn the phone back on but with no service or wifi connections are detected. This phone is a disaster!

    Manan Shah -

    Ivdid that too but son in law found I had reinstalled sim card in backwards or upside down.

    wildcat75666 -

    Where did you buy the micro USB piece? Thanks a lot!

    Davide Rota -

    EBay. I bought new battery cause old ibe was dead would not charge. Just ordered new cables fit 9.00 something free shipping. Anyway hope this fixes problem cause new battery did not fix problems.

    wildcat75666 -

    I was able to open going from the microusb slot and working my way around. The corners are tough, though.

    Roger -

    in my phone the battery was glued with double sided adhesive tape, only on the right side. I pried the left side up first, and carefully removed the battery. to lift the battery I used first used a suction cup(?) followed by a plectrum like tool to lift te battery, and keep it lifted

    Eelco Busch -

    A word of caution: the back panel is harder to remove than you might think. Especially because you may be removing the *screen* by mistake. When you have a "grip" with the tool make sure the metallic border is not coming off with it, and when you have removed enough to be able to lift the panel, make sure it isn't attached by ribbons - in that case you've been removing the screen. A good idea is to gently press your finger nail against the weak plastic located between the back and the SIM slot, and going up and down and sideways until you hear a click. Then you can start from there with the opening tool. As recommended be very gentle around the SIM slot.

    Menahem Julien Raccah Lisei -

    Where do I get the plastic opening tool?

    Julie Hejducek -

  2. d1qqS6XqlAVfWJcg
    d1qqS6XqlAVfWJcg
    CabGRhrDvCvKI4gA
    tRcpReoICfm5mnQD

    • Entferne die Plastikstopfen mit einer Pinzette.

    • Darunter sind nun drei 3,175 mm Kreuzschlitzschrauben #00 sichtbar. Drehe sie heraus.

    • Entferne die restlichen sechs 3,175 mm Kreuzschlitzschrauben #00.

    The plugs are annoying to open for the first time. They're shaped like little pegs, but I was able to poke at them with screwdrivers enough to open.

    Roger -

    the best spot to start prying the cover open is at the cable outlet for the power/volume buttons (careful not to dameage the wires)

    Marius137 -

    A needle works best to remove the plugs.

    Stan Barton -

    I second this. I used a sewing pin and the plugs came out in no time!

    Liam Ong -

    Be careful not to displace the rear camera when replacing the motherboard cover.

    Liam Ong -

    when I lifted the motherboard cover the battery cable stuck on it so that I lifted both, the plastic cover and the cable - step 4 below was not necessary to perform. Be careful!

    Rene Hommel -

    anyone know what is the 6 orange screws in step 2 are called?

    e.g. M2 x 2

    I lost some screws.

    So where can I buy some replacement of these screws?

    Tyler Durden -

  3. 5V3y3JBHFk3VR4mJ

    • Hebele vorsichtig die schwarze Kunststoffabdeckung mit einem Plastiköffnungswekzeug hoch und entferne sie vom Gerät.

    At the top right of your device you see a white dot. That white dot is the warranty sticker. You need to take off that sticker in order to get to the screw that lies underneath. Then unscrew that screw. Otherwise you will not be able to pry off this cover.

    Anke -

  4. RAg6VVT6uXd3DWHx
    RAg6VVT6uXd3DWHx
    LWTjKsHB12KXOUWo
    EXseFoWeWSHHNxJ1

    • Nachdem die Motherboard-Abdeckung entfernt wurde, sehen wir, dass der Akku in Ordnung ist und durch ein schwarzes Flachbandkabel mit dem Motherboard verbunden ist.

    • Verwende einen Spudger, um vorsichtig den Akku nach oben zu hebeln, ausgehend von der Seite gegenüber dem Kabel. Sei dir bewusst, dass starker Kleber die Batterie befestigt, also sei vorsichtig und geduldig.

    • Der Akku ist nicht von einem härteren, schützenden Gehäuse umgeben, sondern ist weich und verformbar. Sei vorsichtig, um sie nicht dauerhaft zu beschädigen!

    This took a ton of force to remove from the adhesive!

    Also I was able to take off the cable before removing the battery.

    Roger -

    Is it OK to use the battery if I bent it during removal? I had to 'iron' it flat, but I think it might still be useable...

    Henry Annand -

    the best way to remove the battery is to lever the left side up from the bottom and remove it from the glue with an old credit card

    Marius137 -

    Do this! it comes up very easily this way. All the adhesive is on the right side.

    Daniel ONeill -

    Great suggestion with a card to remove the battery!

    Jeff Mack -

    Thanks for this trick saved me a lot of time

    George P -

    I second Dangerous Picture's suggestion. I found it very helpful to remove the ribbon from the dock (it was easy to do) before trying to remove the battery.

    Stan Barton -

    on my phone extensive use of glue was concentrated on just one side (right hand side). Not impossible to remove, little tricky

    Rene Hommel -

    I mistakenly removed the battery with force, and the back peeled and brought out smoke, seemingly like it's gonna explode. Help !!!

    warys Moreno -

  5. AXdCEOsEdj2WG4DD
    AXdCEOsEdj2WG4DD
    olny4fb3tOXO2MWC
    bgBxVQGIHPkPiQwu

    • Wenn der Akku frei ist, dann kannst du mit dem schwarzen Spudger das Akkukabel lösen. Heble dazu den Stecker aus seinem Anschluss hoch.

    • Du kannst den Akkuanschluss auch vorher ablösen, das macht die Arbeit leichter.

    For step 4, the connection to the battery should always be done as soon as possible so after removing the back plate to the board would be ideal.

    Otherwise, very thorough so far!

    Duc -

    Thought I was going to snap my battery in half but patience and slight pressure did the trick.

    Also agreeing the battery should be disconnected as soon as possible.

    Rasmus Beck -

    From where do I procure a new battery for it?????????

    Roderick Edric Chandra -

    très bon tuto ,aucun problème si vous suivez la procédure ,bravo et merci

    antoine v -

    There are several connectors to the motherboard. In the picture above, one connector above and, below the screw thread, three more connectors. Be careful to reconnect any connectors accidentally disconnected while disconnecting / removeing the battery. In my case the connector shown at the top of the row came unconnected.

    Jörg Thiesemann-Bihn -

    salut, pour moi le connecteur à la nappe était collé au cache en plastique qui couvrait la carte mère … mais le reste s’est bien passé.

    Merci pour le tuto !

    Didaf Wazir -

    Thanks Buddy, I replaced battery of my one plus one and when I switched it on, touch was not working. It was heart sinking panic moment...Then I came across https://forum.xda-developers.com/oneplus... post, simple trick of sliding piece of paper below battery solved and infact improved the touch response. Thanks !

    Radhakrishna Shetty -

    Kifch nikmandha

    asadzoya388 -

    When putting in the new battery, the battery ribbon cable did not line up with the dock on the motherboard, on the replacement battery I ordered from iFixIt. I was able to carefully peel back the foil covering ribbon cable, align the cable, then press the foil back in place. Now, everything seems to be working.

    I P -

  6. rEVPrAVXsbQMcL1m
    rEVPrAVXsbQMcL1m
    Bw54XObVJVdXUGhk
    QMwFa5rInSEvxswC

    • Nachdem der Akku entfernt ist, kannst du mit einem Spudger die restlichen Flachbandkabel lösen.

    • Achte darauf, dass sich je ein Kabel auf jeder Seite (Lautstärkeregelung, Einschalttaste) und oben befindet. Sie formen das Akkufach.

    the digitizer ribbon connector has a small plastic piece that blocks the connector from being removed through the slit. make sure to remove it (simple push with an opening tool). then you can remove the connector/ribbon cable.

    Michael Jubran -

    All the ribbons came off easily after I found them, save for the volume buttons. Iended up tearing the ribbon trying to maneuver it out with the motherboard itself. Do you guys have any tips for removing the volume control ribbons? They seem to be held down by tiny extrusions in the phone.

    Crazy Joe -

    Use extreme caution with the side ribbons. I've just destroyed my Volume Buttons as I tried to get the ribbon off.

    adenoid2 -

    Another method for the side ribbons (power/volume) is desoldering the connectors - since I couldn't find any promising way to detach the buttons without damage I took this route and had success. Also note that you do not need to remove the mainboard and cameras for replacing the screen - a slight tilt should be enough to access the top ribbon (which belongs to the display assembly and has to be removed) so the side ribbons can stay in place.

    Florian Knodt -

    I removed the side ribbon for the volume buttons is really easy by using the plastic tool between the two volume buttons in direction from up (backside of the phone) to down (screen of the phone). Trying to remove it from the volume down direction end of the cable almost destroyed the volume down button, so don’t try it

    Hristo Kovachev -

    I just had to replace my screen, I skipped the removal of the side ribons and that worked perfectly. So don’t consider this step as mandatory to a screen replacement.

    Erwan Velu -

  7. WwOC3D4ZFm6TgHut
    WwOC3D4ZFm6TgHut
    UekIcN2eYAKpINDO
    ijfwClWWFIJA3gKo

    • Wenn die Flachbandkabel entfernt, sind gibt es noch eine letzte Schraube. Wenn du diese entfernt hast, lässt sich die Hauptplatine leicht herausheben.

    • Diese Schraube ist die einzige mit anderen Maßen: Es ist eine 3,0 mm Kreuzschlitzschraube #00.

    After removing the final screw that holds the motherboard in place, do not just lift away the motherboard. The antenna is fixed to the back of the motherboard in the bottom right corner. Lift the motherboard from the top, leaving the bottom part of the motherboard (the part that is nearest the battery) close to the phone body. The antenna is a black wire that runs from the motherboard around the right side of the battery recess. It is held to the back side of the motherboard by a small, round, brass-coloured connector. It can be unclipped from the motherboard using a small pair of tweezers.

    Blenk -

    There is a little tape in the battery box keep the antenna in place.

    You can remove the tape and have a few centimeters of antenna free in case you accidentally disconnect it.

    It is !&&* of a fiddeling to connect it again but it is feasible

    Jan Seidel -

    The final screw is a Phillips 000

    Jan Seidel -

    After my second assembly replacement I realised it is not necessary to completely remove the motherboard. Just lift it from the top enough to navigate the top ribbon on the assembly through the chassis and therefore avoid any possible damage to the power and volume flex.

    mlin75 -

    I encountered some resistance when lifting up the motherboard (and putting it back in later), from the corner near the sim card slot. Either because of a manufacturing defect or the plastic deforming due to age, the side of the PCB was snagging against the chassis. Got it out eventually but you have to be careful.

    John Smith -

  8. Pp6A5M2gdSH6qUnR
    Pp6A5M2gdSH6qUnR
    ShIC5ZnMlJTHHhsl

    • Wenn die Hauptplatine draußen ist kannst du leicht die Rückkamera mit einem Spudger oder einer Pinzette entfernen.

    you don't need to remove the front or rear camera - once the motherboard is free, nothing else has to be done to it.

    fudgyhoops1 -

    The camera may fall off as the connector is pretty slack.

    You don't have to remove it but be careful not drop or lose it

    Jan Seidel -

  9. wosTAMu1XICoxLyo
    wosTAMu1XICoxLyo
    hYKeI2KtbWuliw61

    • Wenn die Hauptplatine entfernt ist, kannst du die Frontkamera leicht mit einer gewinkelten Pinzette oder einem Spudger von ihrem Anschluss lösen.

  10. FpfxMZtffYLlYWAG

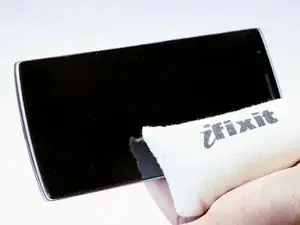

    • Nachdem die Hauptplatine und andere Teile entfernt worden sind, musst du den Bildschirm erwärmen.

    • Hier wird ein iOpener verwendet, es geht aber auch mit einem Heißluftgebläse oder einem Haartrockner.

  11. MhVRPWQZwxv5hBhq
    MhVRPWQZwxv5hBhq
    DUIDZ1xIe1FeGsea
    OhNHbbPpjAocEwdf

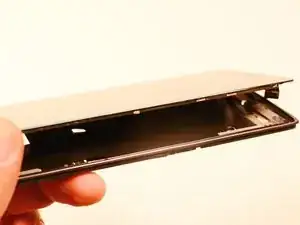

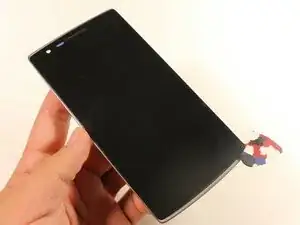

    • Wenn der Bildschirm erwärmt worden ist, kannst du ihn mit einem Plektrum vom Rahmen weghebeln. Ein Plastiköffnungswerkzeug oder ein ähnliches Werkzeug funktioniert auch.

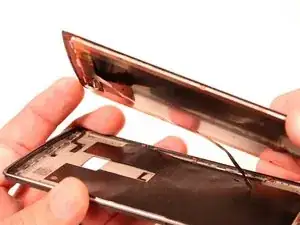

    • Hebe nun einfach den Bildschirm weg vom Rest des Gerätes und trenne ihn.

    • Schau genau hin! Der Bildschirm wird mit einem ganz dünnen Rahmen positioniert. Er befindet ringsum und ist etwa halb so dick wie der Bildschirm. Setze dein Werkzeug hier an, oder du wirst beim Zusammenbau erst den Positionsrahmen einkleben müssen und dann den Bildschirm.

    New display from aliexpress does NOT have copper strips!!

    Will it work?

    PopeMike -

    I got one from e-trade-supply without the copper and it worked!

    Michael Jubran -

    Yep, the copper is just for additional an ESD ground. There are more than enough solder points on the LCD's back plate that you don't need to worry about additional ground, it's just something added in as a precaution.

    Craig Jessup -

    Thanks for the guide, sadly one of the motherboard screws on mine is stripped out... mine was dropped into a toilet, and after replacing the battery it works great, except there is very bright areas on the screen, which I'm suspecting is trapped water or something. Can you not remove the screen with the mother board in place? I'm attempting to see if I can remove the water.

    James Fox -

    be careful not to remove the plastic bezel/frame connecting the lcd to the phone body. insert the guitar pick between the lcd glass and the plastic bezel.

    Michael Jubran -

    Why can't you just remove the battery, disconnect the display connector and ultimately remove the screen without disassembling the whole phone ?

    Piet Petrus -

    That's actually a very reasonable question ...

    The risk of damaging or misconnecting while reassembling would diminsh substantiually !

    Stefan Van pellicom -

    Watch it!!!

    There is a tiny tiny frame to position the display. It is located on roundabout half the thickness of the display you see. Place the tool there to pry open or you will have to glue the positioning frame onto the phone first and then glue the display to the frame.

    I actually used a sharp cutter to get in between before using the pick to lift the display. works totally easy but you have to watch your fingers

    Jan Seidel -

    Great guide but could do with some info on reassembly, specifically how to attach the new screen. I used this

    "1mm X 50M Double Sided extremly strong Tape adhesive For LCDGlass Mobile Phone" bought from eBay for £3

    Jon Davey -

    Before I could get the top screen ribbon through the phone body, I had to remove a grey plastic filler by pushing through from the screen side. I never bothered to reattach this filler when reassembling.

    Jon Davey -

    Bless you for this comment. I was just worrying about that when it popped out.

    Matt Ludwig -

    Will the new screen sit nicely on the body without glue? Can I just pop it on or do I need some glue? If so, how much?

    dhanny_101 -

    You need to buy some double sided adhesive strips/tape. I use this: https://www.banggood.com/3Pcs-Double-Sid...

    Cal Barnes -

    Bro how about the silver will strip attached to display..where will I get???

    dhananjay dhanu -

    I replaced the screen but don't get power to the screen. I briefly got striped lines but now nothing.

    Phone vibrates when turned on and i can see flashing led. But no display or light's on the navigation buttons.

    Sam Butt -

Abschluss

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.

Tinte & Feder

Javier Cruz

Mitglied seit: 22/09/14

2242 Reputation

22 Kommentare

This was actually a lot easier than the guide makes it sound. I would suggest adding that you will need 1mm two sided foam tape to hold the screen in place.

Christopher Tettam -

0.o i did not know i'll need foam tape too. thanks a ton for suggestion.. i wld have just startef without tape to end up with a loose phone

vikrant1011 -

Hello

Thanks a lot for this guide.

I bought the lcd assembly from ebay and tried replacing it. But there is very thin plastic ring around the assembly which on removal is bent and seems non reusable. Now the new assembly I have bought doesnot have the plastic ring around it. How to make sure that this ring is not bent or damaged ..? I hope you are able to understand my point..:) The new replacement assembly doesnot have that thin plastic copper type ring. While removing old assembly, it comes along. Am I missing on anything ..? Thanks in advance for help

manjo3311 -

I encountered the same issue. I actually removed the entire plastic frame with the old LCD. I had to gently remove it from the lcd, clean out the glue on it from both sides and on the phone body where it sits. try to straighten it out by bending it. After that I added dual sided tape on the phone body and added the frame on to it. and then only did I manage to put more dual sided tape on the upper side in order to glue the LCD onto it. I don't feel 100% comofortable with this solution so I recommend getting a case that will cover the sides of the lcd to prevent it from falling out in case the phone falls.

Michael Jubran -

If you are wondering why the phone keeps dropping your cellular network connection, check if you forgot to reconnect either or both ends of the antenna cable. One is on the bottom side of the motherboard, lower right corner and the other is on the lower right corner of the phone casing.

Michael Christiansen -

stating to remove the buttons before pulling the board would have been nice. I now have a broken power button cable assuming that when it said "the board can be removed" it meant i had nothing else to do.

I now have a dead phone.

csbenit0 -

I made the same mistake. I came up with the following solution: http://gatlin.tumblr.com/post/1320946419...

rokenrolfeisbu -

http://www.aliexpress.com/store/product/...

I just fount a very nice seller, their LCD replacement looks nice. Now my Oneplus One is alive again, the color is bright, just looks the same as before!

Matthew Gallardo -

Are steps 7 and 8 needed if I just want to replace the screen ?

Why did you remove the cameras from the motherboard?

bhumitra -

Actually: You don't need to remove the motherboard. There is a small plastic tab on top of the motherboard, where the ribbon/connector comes around the edge. Remove that, and the other ribbon/connector for the display at the bottom of the motherboard. Turn the phone around, and remove the display.

To assemble, you need either a glue or double-sided foam tape for the display

jungelassen -

The article is good but not perfect, for example I dont need to remove the camera to replace the screen! Also I was about to commit the same mistake that csbenit0 said, this is because it wasn't included it in the guide! but luckly the power button is working.

Muhamad Alfaifi -

c spadire il mio telefono comprato da vo i il modello e ono plus one si e rotto il sispley con il vetro mi puoi inviare lindirizzo x spedirlo x ripararlo

gennaromorra1951 -

mi si e rotto il tele fono comprato da voi e un onuplus one e si e rotto il displey con il vetro e possibile darmi lindirizzo x spedirlo x ripararlo

gennaromorra1951 -

Is there anyway to fix a broken power button?

Roni Akbas Deniz -

Skip the steps regarding removal of the motherboard. one you have removed the battery unplug the LCD and Digitizer cables, then heat and remove screen (remembering to remove plastic grommet holding digitizer cable in place).

As well as saving a lot of time this will also help people to avoid damaging the Volume/Power flexes - as this seems to be a common issue for people on here.

Whole repair took 10 minutes to complete, this guide definitely helped though so well done!

Sam Lees -

How did you fit the top LIF cable out from behind the motherboard, though? It seems the connector is wider than the hole...

ifixit3 -

i fixed the displayafter assemble the display was not working means its comeing just a litile bit of lightand vibrations only,nt working,,,whats the problem

Sai Ganesh -

Could I utilize this to replace my screen?

Becky Jesse -

Hi, Thanks for the really informative tutorial. I replaced my screen and it gives image but the thouch doesn't really work. (only in the bottom right corner and swiping) Any idea if this could be my fault in the assembly or did I just buy a malfunctioning screen?

Ronen -

I did everthing as described above. I got no indicator lights and no visual but the LCD shows backlight bleed (So the screen seems to have power but nothing else). Apparently I damaged sth. Any idea what that might be?

Christoph Kröppl -

Indicator lights are active now - maybe the battery is just really very empty?

Christoph Kröppl -

Well either the display was DOA or I damaged one of the 2 display connectors.

Christoph Kröppl -
