OnePlus One Hauptplatine austauschen

Geschrieben von: Justin Ogihara
  • Kommentare: 44
OnePlus One Hauptplatine austauschen

Schwierigkeitsgrad

Mittel

Schritte

8

Zeitaufwand

30 - 40 Minuten

Einleitung

Wenn du Probleme mit der Hauptplatine hast, zeigt dir diese Anleitung, wie du sie austauschen kannst. Achte darauf, dass du dabei keine Kabel oder Stecker beschädigst.

  1. pln4PCwsQKPt5xv2
    pln4PCwsQKPt5xv2
    GoOYFNZwEQUiebUO
    sAdoQnWEUfTRQnSO

    • Entferne den SIM Karten Einschub.

    • Entferne mit einem Plastik Opening Tool vorsichtig die Rückseite vom Gerät. Sei besonders vorsichtig um den SIM Einschub und an anderen schwachen Stellen.

    • Du spürst möglicherweise manchmal einen Widerstand von den versteckten Rasten entlang der inneren Kanten des Smartphones. Das ist nicht weiter schlimm, bewege dein Werkzeug konstant weiter in eine Richtung und springe nicht von einer Stelle zur nächsten.

    • Sobald du in einer Richtung (egal welcher) das Werkzeug halb um das Gerät bewegt hast, kannst du das Panel ganz einfach per Hand entfernen.

    • 'Es ist von äußerster Wichtigkeit, dass du vor dem Entfernen des Akkus erst den nächsten Schritt durchführst! Der Akku ist fest im Handy integriert'' und kann bei unvorsichtiger Behandlung beschädigt oder zerstört werden, sollte diese Anleitung nicht genau befolgt werden.

    It doesn't mention you have to remove SIM tray first.

    pawel -

    I used the #0 for the rear panel screws. The #00 is too small and will slip, stripping the screws if you're not extra careful.

    anonymous 2668 -

    where can i buy the battery??

    Shaun Davis -

    Has anyone answered this? I am looking too.

    Elie Daou -

    They sell it on here, although I found mine on eBay.

    Roger -

    Aliexpress for $9 (original)

    David van Ballegooijen -

    The last three hidden screws are a !&&* of a time consumer to remove. probably you would need only a certain type of tweezers - I got stuck at midway and now I cannot get go have my phone detect the sim card either probably because the six screws are removed. I can now turn the phone back on but with no service or wifi connections are detected. This phone is a disaster!

    Manan Shah -

    Ivdid that too but son in law found I had reinstalled sim card in backwards or upside down.

    wildcat75666 -

    Where did you buy the micro USB piece? Thanks a lot!

    Davide Rota -

    EBay. I bought new battery cause old ibe was dead would not charge. Just ordered new cables fit 9.00 something free shipping. Anyway hope this fixes problem cause new battery did not fix problems.

    wildcat75666 -

    I was able to open going from the microusb slot and working my way around. The corners are tough, though.

    Roger -

    in my phone the battery was glued with double sided adhesive tape, only on the right side. I pried the left side up first, and carefully removed the battery. to lift the battery I used first used a suction cup(?) followed by a plectrum like tool to lift te battery, and keep it lifted

    Eelco Busch -

    A word of caution: the back panel is harder to remove than you might think. Especially because you may be removing the *screen* by mistake. When you have a "grip" with the tool make sure the metallic border is not coming off with it, and when you have removed enough to be able to lift the panel, make sure it isn't attached by ribbons - in that case you've been removing the screen. A good idea is to gently press your finger nail against the weak plastic located between the back and the SIM slot, and going up and down and sideways until you hear a click. Then you can start from there with the opening tool. As recommended be very gentle around the SIM slot.

    Menahem Julien Raccah Lisei -

    Where do I get the plastic opening tool?

    Julie Hejducek -

  2. d1qqS6XqlAVfWJcg
    d1qqS6XqlAVfWJcg
    CabGRhrDvCvKI4gA
    tRcpReoICfm5mnQD

    • Entferne die Plastikstopfen mit einer Pinzette.

    • Darunter sind nun drei 3,175 mm Kreuzschlitzschrauben #00 sichtbar. Drehe sie heraus.

    • Entferne die restlichen sechs 3,175 mm Kreuzschlitzschrauben #00.

    The plugs are annoying to open for the first time. They're shaped like little pegs, but I was able to poke at them with screwdrivers enough to open.

    Roger -

    the best spot to start prying the cover open is at the cable outlet for the power/volume buttons (careful not to dameage the wires)

    Marius137 -

    A needle works best to remove the plugs.

    Stan Barton -

    I second this. I used a sewing pin and the plugs came out in no time!

    Liam Ong -

    Be careful not to displace the rear camera when replacing the motherboard cover.

    Liam Ong -

    when I lifted the motherboard cover the battery cable stuck on it so that I lifted both, the plastic cover and the cable - step 4 below was not necessary to perform. Be careful!

    Rene Hommel -

    anyone know what is the 6 orange screws in step 2 are called?

    e.g. M2 x 2

    I lost some screws.

    So where can I buy some replacement of these screws?

    Tyler Durden -

  3. 5V3y3JBHFk3VR4mJ

    • Hebele vorsichtig die schwarze Kunststoffabdeckung mit einem Plastiköffnungswekzeug hoch und entferne sie vom Gerät.

    At the top right of your device you see a white dot. That white dot is the warranty sticker. You need to take off that sticker in order to get to the screw that lies underneath. Then unscrew that screw. Otherwise you will not be able to pry off this cover.

    Anke -

  4. RAg6VVT6uXd3DWHx
    RAg6VVT6uXd3DWHx
    LWTjKsHB12KXOUWo
    EXseFoWeWSHHNxJ1

    • Nachdem die Motherboard-Abdeckung entfernt wurde, sehen wir, dass der Akku in Ordnung ist und durch ein schwarzes Flachbandkabel mit dem Motherboard verbunden ist.

    • Verwende einen Spudger, um vorsichtig den Akku nach oben zu hebeln, ausgehend von der Seite gegenüber dem Kabel. Sei dir bewusst, dass starker Kleber die Batterie befestigt, also sei vorsichtig und geduldig.

    • Der Akku ist nicht von einem härteren, schützenden Gehäuse umgeben, sondern ist weich und verformbar. Sei vorsichtig, um sie nicht dauerhaft zu beschädigen!

    This took a ton of force to remove from the adhesive!

    Also I was able to take off the cable before removing the battery.

    Roger -

    Is it OK to use the battery if I bent it during removal? I had to 'iron' it flat, but I think it might still be useable...

    Henry Annand -

    the best way to remove the battery is to lever the left side up from the bottom and remove it from the glue with an old credit card

    Marius137 -

    Do this! it comes up very easily this way. All the adhesive is on the right side.

    Daniel ONeill -

    Great suggestion with a card to remove the battery!

    Jeff Mack -

    Thanks for this trick saved me a lot of time

    George P -

    I second Dangerous Picture's suggestion. I found it very helpful to remove the ribbon from the dock (it was easy to do) before trying to remove the battery.

    Stan Barton -

    on my phone extensive use of glue was concentrated on just one side (right hand side). Not impossible to remove, little tricky

    Rene Hommel -

    I mistakenly removed the battery with force, and the back peeled and brought out smoke, seemingly like it's gonna explode. Help !!!

    warys Moreno -

  5. AXdCEOsEdj2WG4DD
    AXdCEOsEdj2WG4DD
    olny4fb3tOXO2MWC
    bgBxVQGIHPkPiQwu

    • Wenn der Akku frei ist, dann kannst du mit dem schwarzen Spudger das Akkukabel lösen. Heble dazu den Stecker aus seinem Anschluss hoch.

    • Du kannst den Akkuanschluss auch vorher ablösen, das macht die Arbeit leichter.

    For step 4, the connection to the battery should always be done as soon as possible so after removing the back plate to the board would be ideal.

    Otherwise, very thorough so far!

    Duc -

    Thought I was going to snap my battery in half but patience and slight pressure did the trick.

    Also agreeing the battery should be disconnected as soon as possible.

    Rasmus Beck -

    From where do I procure a new battery for it?????????

    Roderick Edric Chandra -

    très bon tuto ,aucun problème si vous suivez la procédure ,bravo et merci

    antoine v -

    There are several connectors to the motherboard. In the picture above, one connector above and, below the screw thread, three more connectors. Be careful to reconnect any connectors accidentally disconnected while disconnecting / removeing the battery. In my case the connector shown at the top of the row came unconnected.

    Jörg Thiesemann-Bihn -

    salut, pour moi le connecteur à la nappe était collé au cache en plastique qui couvrait la carte mère … mais le reste s’est bien passé.

    Merci pour le tuto !

    Didaf Wazir -

    Thanks Buddy, I replaced battery of my one plus one and when I switched it on, touch was not working. It was heart sinking panic moment...Then I came across https://forum.xda-developers.com/oneplus... post, simple trick of sliding piece of paper below battery solved and infact improved the touch response. Thanks !

    Radhakrishna Shetty -

    Kifch nikmandha

    asadzoya388 -

    When putting in the new battery, the battery ribbon cable did not line up with the dock on the motherboard, on the replacement battery I ordered from iFixIt. I was able to carefully peel back the foil covering ribbon cable, align the cable, then press the foil back in place. Now, everything seems to be working.

    I P -

  6. x4YLKkrFjQECEKqB
    x4YLKkrFjQECEKqB
    l25eb6CeU3XG5oGH
    WhkImEKSIsgxsWjG

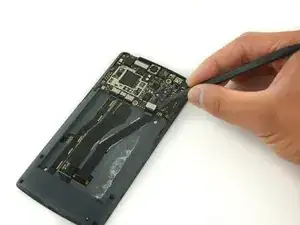

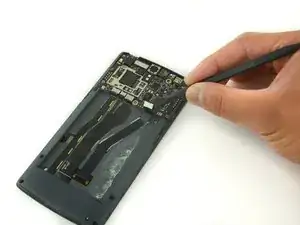

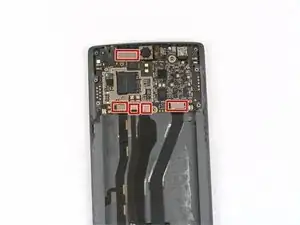

    • Hebe vorsichtig alle Verbinder mit einem Spudger hoch und löse sie ab.

    VERY IMPORTANT LAST STEP before you pry out the motherboard!!! In the bottom left corner there is one last screw to remove, its like a tiny black dot just up to the volume ribbon. Remove that otherwise you break the board doing so.

    András Jacsó -

  7. IRI2vGdCE3nYd6WD
    IRI2vGdCE3nYd6WD
    VPuEe6XvCwnThKYS

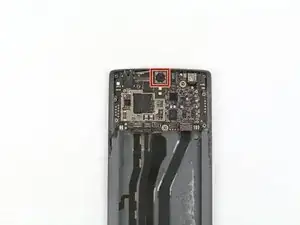

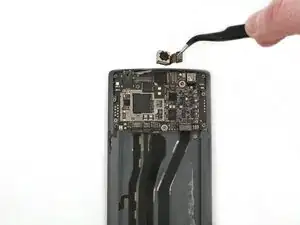

    • Hebe die Frontkamera vorsichtig mit einer Pinzette aus dem Gerät.

    There is a small screw in the lower left corner of the motherboard that also needs to be removed in this step. It’s visible here just above where the power button ribbon crosses the corner of the motherboard.

    Dale Schoeck -

  8. 11HBjbetjQb4sKfk
    11HBjbetjQb4sKfk
    h5WiDT1xjRdhHyMc
    SQKZnRbNCt6oxiRy

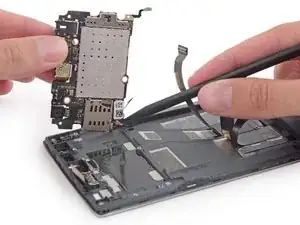

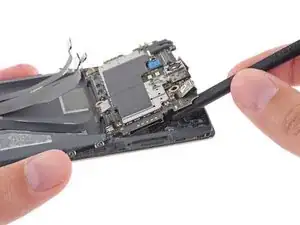

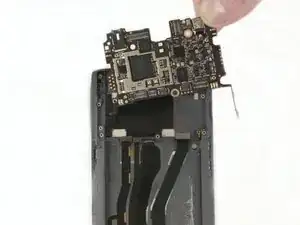

    • Hebe die Oberkante der Hauptplatine vorsichtig an und löse die Antenne vom Gerät ab.

    • Die Lautstärkeregler und der Einschaltknopf sind auf der Hauptplatine festgelötet und müssen mit ihr gemeinsam entfernt werden. Damit es leichter geht, musst du diese Tasten vor dem Ausbau der Hauptplatine sorgfältig heraus hebeln.

Abschluss

Um dein Gerät wieder zusammenzusetzen, folge den Schritten in umgekehrter Reihenfolge.

Tinte & Feder

Justin Ogihara

Mitglied seit: 18/09/17

24693 Reputation

2 Kommentare
