OnePlus One Micro USB Buchse ersetzen

Geschrieben von: Chad Jackson
  • Kommentare: 45
OnePlus One Micro USB Buchse ersetzen

Schwierigkeitsgrad

Mittel

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

  1. pln4PCwsQKPt5xv2
    pln4PCwsQKPt5xv2
    GoOYFNZwEQUiebUO
    sAdoQnWEUfTRQnSO

    • Entferne den SIM Karten Einschub.

    • Entferne mit einem Plastik Opening Tool vorsichtig die Rückseite vom Gerät. Sei besonders vorsichtig um den SIM Einschub und an anderen schwachen Stellen.

    • Du spürst möglicherweise manchmal einen Widerstand von den versteckten Rasten entlang der inneren Kanten des Smartphones. Das ist nicht weiter schlimm, bewege dein Werkzeug konstant weiter in eine Richtung und springe nicht von einer Stelle zur nächsten.

    • Sobald du in einer Richtung (egal welcher) das Werkzeug halb um das Gerät bewegt hast, kannst du das Panel ganz einfach per Hand entfernen.

    • 'Es ist von äußerster Wichtigkeit, dass du vor dem Entfernen des Akkus erst den nächsten Schritt durchführst! Der Akku ist fest im Handy integriert'' und kann bei unvorsichtiger Behandlung beschädigt oder zerstört werden, sollte diese Anleitung nicht genau befolgt werden.

    It doesn't mention you have to remove SIM tray first.

    pawel -

    I used the #0 for the rear panel screws. The #00 is too small and will slip, stripping the screws if you're not extra careful.

    anonymous 2668 -

    where can i buy the battery??

    Shaun Davis -

    Has anyone answered this? I am looking too.

    Elie Daou -

    They sell it on here, although I found mine on eBay.

    Roger -

    Aliexpress for $9 (original)

    David van Ballegooijen -

    The last three hidden screws are a !&&* of a time consumer to remove. probably you would need only a certain type of tweezers - I got stuck at midway and now I cannot get go have my phone detect the sim card either probably because the six screws are removed. I can now turn the phone back on but with no service or wifi connections are detected. This phone is a disaster!

    Manan Shah -

    Ivdid that too but son in law found I had reinstalled sim card in backwards or upside down.

    wildcat75666 -

    Where did you buy the micro USB piece? Thanks a lot!

    Davide Rota -

    EBay. I bought new battery cause old ibe was dead would not charge. Just ordered new cables fit 9.00 something free shipping. Anyway hope this fixes problem cause new battery did not fix problems.

    wildcat75666 -

    I was able to open going from the microusb slot and working my way around. The corners are tough, though.

    Roger -

    in my phone the battery was glued with double sided adhesive tape, only on the right side. I pried the left side up first, and carefully removed the battery. to lift the battery I used first used a suction cup(?) followed by a plectrum like tool to lift te battery, and keep it lifted

    Eelco Busch -

    A word of caution: the back panel is harder to remove than you might think. Especially because you may be removing the *screen* by mistake. When you have a "grip" with the tool make sure the metallic border is not coming off with it, and when you have removed enough to be able to lift the panel, make sure it isn't attached by ribbons - in that case you've been removing the screen. A good idea is to gently press your finger nail against the weak plastic located between the back and the SIM slot, and going up and down and sideways until you hear a click. Then you can start from there with the opening tool. As recommended be very gentle around the SIM slot.

    Menahem Julien Raccah Lisei -

    Where do I get the plastic opening tool?

    Julie Hejducek -

  2. d1qqS6XqlAVfWJcg
    d1qqS6XqlAVfWJcg
    CabGRhrDvCvKI4gA
    tRcpReoICfm5mnQD

    • Entferne die Plastikstopfen mit einer Pinzette.

    • Darunter sind nun drei 3,175 mm Kreuzschlitzschrauben #00 sichtbar. Drehe sie heraus.

    • Entferne die restlichen sechs 3,175 mm Kreuzschlitzschrauben #00.

    The plugs are annoying to open for the first time. They're shaped like little pegs, but I was able to poke at them with screwdrivers enough to open.

    Roger -

    the best spot to start prying the cover open is at the cable outlet for the power/volume buttons (careful not to dameage the wires)

    Marius137 -

    A needle works best to remove the plugs.

    Stan Barton -

    I second this. I used a sewing pin and the plugs came out in no time!

    Liam Ong -

    Be careful not to displace the rear camera when replacing the motherboard cover.

    Liam Ong -

    when I lifted the motherboard cover the battery cable stuck on it so that I lifted both, the plastic cover and the cable - step 4 below was not necessary to perform. Be careful!

    Rene Hommel -

    anyone know what is the 6 orange screws in step 2 are called?

    e.g. M2 x 2

    I lost some screws.

    So where can I buy some replacement of these screws?

    Tyler Durden -

  3. 5V3y3JBHFk3VR4mJ

    • Hebele vorsichtig die schwarze Kunststoffabdeckung mit einem Plastiköffnungswekzeug hoch und entferne sie vom Gerät.

    At the top right of your device you see a white dot. That white dot is the warranty sticker. You need to take off that sticker in order to get to the screw that lies underneath. Then unscrew that screw. Otherwise you will not be able to pry off this cover.

    Anke -

  4. RAg6VVT6uXd3DWHx
    RAg6VVT6uXd3DWHx
    LWTjKsHB12KXOUWo
    EXseFoWeWSHHNxJ1

    • Nachdem die Motherboard-Abdeckung entfernt wurde, sehen wir, dass der Akku in Ordnung ist und durch ein schwarzes Flachbandkabel mit dem Motherboard verbunden ist.

    • Verwende einen Spudger, um vorsichtig den Akku nach oben zu hebeln, ausgehend von der Seite gegenüber dem Kabel. Sei dir bewusst, dass starker Kleber die Batterie befestigt, also sei vorsichtig und geduldig.

    • Der Akku ist nicht von einem härteren, schützenden Gehäuse umgeben, sondern ist weich und verformbar. Sei vorsichtig, um sie nicht dauerhaft zu beschädigen!

    This took a ton of force to remove from the adhesive!

    Also I was able to take off the cable before removing the battery.

    Roger -

    Is it OK to use the battery if I bent it during removal? I had to 'iron' it flat, but I think it might still be useable...

    Henry Annand -

    the best way to remove the battery is to lever the left side up from the bottom and remove it from the glue with an old credit card

    Marius137 -

    Do this! it comes up very easily this way. All the adhesive is on the right side.

    Daniel ONeill -

    Great suggestion with a card to remove the battery!

    Jeff Mack -

    Thanks for this trick saved me a lot of time

    George P -

    I second Dangerous Picture's suggestion. I found it very helpful to remove the ribbon from the dock (it was easy to do) before trying to remove the battery.

    Stan Barton -

    on my phone extensive use of glue was concentrated on just one side (right hand side). Not impossible to remove, little tricky

    Rene Hommel -

    I mistakenly removed the battery with force, and the back peeled and brought out smoke, seemingly like it's gonna explode. Help !!!

    warys Moreno -

  5. AXdCEOsEdj2WG4DD
    AXdCEOsEdj2WG4DD
    olny4fb3tOXO2MWC
    bgBxVQGIHPkPiQwu

    • Wenn der Akku frei ist, dann kannst du mit dem schwarzen Spudger das Akkukabel lösen. Heble dazu den Stecker aus seinem Anschluss hoch.

    • Du kannst den Akkuanschluss auch vorher ablösen, das macht die Arbeit leichter.

    For step 4, the connection to the battery should always be done as soon as possible so after removing the back plate to the board would be ideal.

    Otherwise, very thorough so far!

    Duc -

    Thought I was going to snap my battery in half but patience and slight pressure did the trick.

    Also agreeing the battery should be disconnected as soon as possible.

    Rasmus Beck -

    From where do I procure a new battery for it?????????

    Roderick Edric Chandra -

    très bon tuto ,aucun problème si vous suivez la procédure ,bravo et merci

    antoine v -

    There are several connectors to the motherboard. In the picture above, one connector above and, below the screw thread, three more connectors. Be careful to reconnect any connectors accidentally disconnected while disconnecting / removeing the battery. In my case the connector shown at the top of the row came unconnected.

    Jörg Thiesemann-Bihn -

    salut, pour moi le connecteur à la nappe était collé au cache en plastique qui couvrait la carte mère … mais le reste s’est bien passé.

    Merci pour le tuto !

    Didaf Wazir -

    Thanks Buddy, I replaced battery of my one plus one and when I switched it on, touch was not working. It was heart sinking panic moment...Then I came across https://forum.xda-developers.com/oneplus... post, simple trick of sliding piece of paper below battery solved and infact improved the touch response. Thanks !

    Radhakrishna Shetty -

    Kifch nikmandha

    asadzoya388 -

    When putting in the new battery, the battery ribbon cable did not line up with the dock on the motherboard, on the replacement battery I ordered from iFixIt. I was able to carefully peel back the foil covering ribbon cable, align the cable, then press the foil back in place. Now, everything seems to be working.

    I P -

  6. bSwlXnCNgdqZ3QfR
    bSwlXnCNgdqZ3QfR
    HJJLuvMJxYjWWIuU
    DYvjf5kWXMg1SGUi

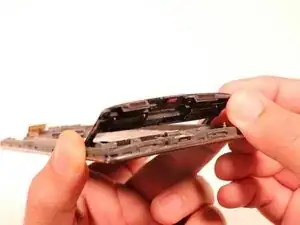

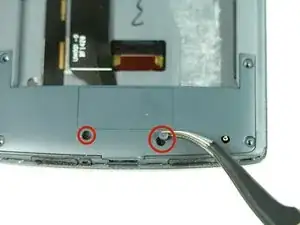

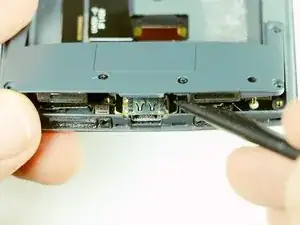

    • Wenn der Akku erstmal draußen ist können wir unsere Aufmerksamkeit auf die Rückeinheit richten. Dieses Teil ist von sechs Schrauben zusammen gehalten, mehr in der Info Notiz weiter unten.

    • Zum Glück werden überall gleiche Schrauben benutzt um die Hauptplatine zu befestigen. Es handelt sich 3,175 mm Kreuzschlitzschrauben # 00.

    • Heble mit dem Spudger die Rückeinheit heraus, denke aber daran, dass es noch dieMicro USB Buchse gibt. Du kannst auch ein Plastiköffnungswerkzeug benutzen.

    • Achte darauf, dass es noch zwei versteckte Schrauben gibt. Beide befinden sich unterPlastikstopfen, die du mit einer Pinzette herausziehen musst.

    on my 1+1, the two screws beneath the gromets, where phillips 000

    Lucid Nonsense -

  7. MGDpqu5uRHYSEfSM
    MGDpqu5uRHYSEfSM
    ISpUZvNflhOa4DLy
    AjfvMbAgamAyfDCh

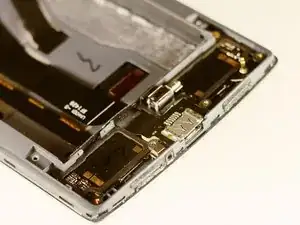

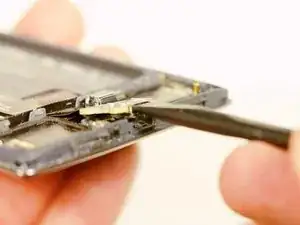

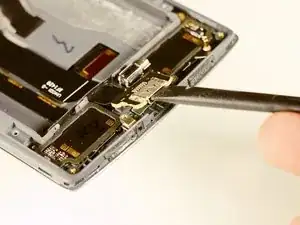

    • Jetzt hast du Zugang zur USB Buchse. Hebe sie mit dem flachen Ende des Spudgers hoch aus ihrem Verbinder und befreie sie von der Tochterplatine.

  8. oCItkHDO2FJ3m4Ub
    oCItkHDO2FJ3m4Ub
    xHvgs2gJxcG5DEeT
    l3xPQDnBPdqMMN4o

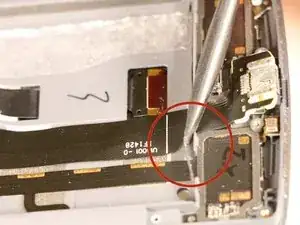

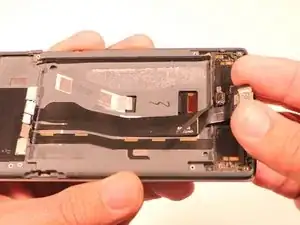

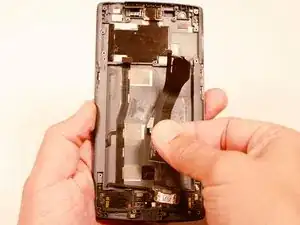

    • Nun kannst du das Flachbandkabel entfernen. Es ist noch mit einem kleinen Stückchen schwarzes Klebeband befestigt, löse es mitdem Spudger ab.

    • Die Micro USB Buchse und das anhängende Flachbandkabel sind frei und können entfernt werden.

Abschluss

Arbeite die Schritte in umgekehrter Reihenfolge ab, um dein Gerät wieder zusammenzubauen.

Tinte & Feder

Chad Jackson

Mitglied seit: 22/09/14

5326 Reputation

4 Kommentare

Thanks back up and working should get a few more years out of it

cheers

robert storrs -

Pretty easy, just be really careful when removing battery from glue ;)

Thanks a lot for this guide which is really complete !

Gael Augeat -

I was able to successfully follow these instructions. Pretty sure I damaged the battery during removal though. I intended to replace the battery anyways, so I’m not too worried about it, but it would be nice to to have some technique listed for removing it less destructively.

George Simpson -

For me USB was not charging because it seems that one of the 2 USB plugs above the battery were loose. I did replace the battery already sometime far in the past so this might have been the cause. If you just want to re-plug on the upper side and lift the port on the lower side, you don't even need to remove the battery. Just make sure that all plugs, not just USB, are tight before screwing everything back together.

Thanks a lot for this guide!

Robert Gutjahr -
