Onkyo TX-800 Power fuse Replacement

Geschrieben von: Michael Lady
  • Kommentare: 2
Onkyo TX-800 Power fuse Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This replacement guide will demonstrate how to replace a fuse in an Onkyo TX-800.

A fuse is an electrical safety device that protects the circuit board in the event that there is excessive current.

Before doing anything, make sure to safely discharge the capacitor using this guide.

  1. ix6KwcUJI5MwbjfJ
    ix6KwcUJI5MwbjfJ
    xnd5otveFW1OyKKF
    YWhJEXW3qGgwkjVY

    • Remove the two screws on both sides of the receiver. Keep these and the rest of the screws in a safe place.

  2. ejY1sGgG1WIqWN2O
    ejY1sGgG1WIqWN2O
    2IGKvJuX3cEHRhe6

    • Remove the top screw on the back panel.

  3. QHhfuxrID3Id52LM
    QHhfuxrID3Id52LM
    oRF6swHN6NrHJnv2

    • Slide off the case to expose the internal components of the receiver.

  4. sdqIQonZ6wGYiqoQ
    sdqIQonZ6wGYiqoQ
    FgoDgPVSWOBPyCBu

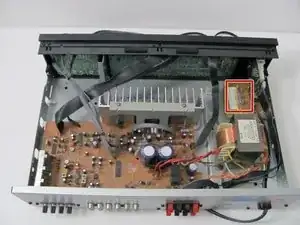

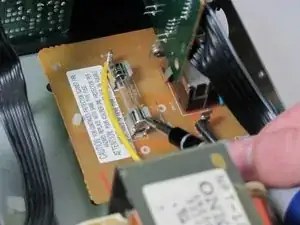

    • Locate the fuse.

  5. tHQlRTFyXD1rKlQS
    tHQlRTFyXD1rKlQS
    Ha6NSYpkLfMESaqF

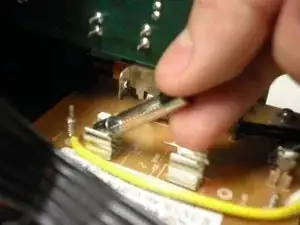

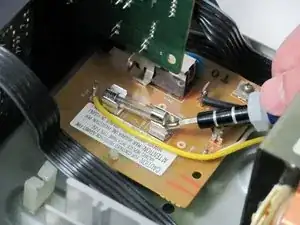

    • Gently wedge a small screwdriver in between one side of the fuse and the contact.

    • Remove the fuse with your thumb and forefinger.

  6. DiKbkGImhodODgOC

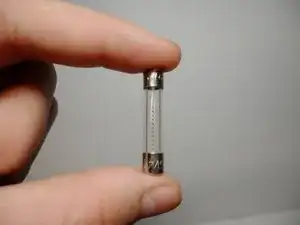

    • Examine the fuse. If the wire within it is broken, you will need to replace it with a new 125 Volt, 4 Amp fuse.
