Einleitung

Prerequisite-only guide to open a PlayStation (SCPH-1001) game console, allowing access to internal components for repair or replacement.

  1. IqaSJZ4KVmvNouFi

    • Before you begin, make sure the console is turned off and unplugged.

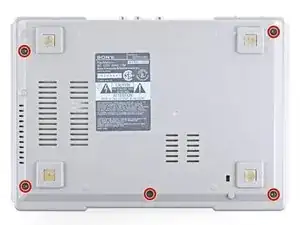

    • Turn the console upside down and remove the five 15.8 mm-long Phillips #1 screws.

    The SCPH-9001 model does not have the Parallel Port panel to remove.

    Aislinn -

  2. Ai23JydcmDHAJSKG
    Ai23JydcmDHAJSKG
    RKxO2hpTXxr4G2sp

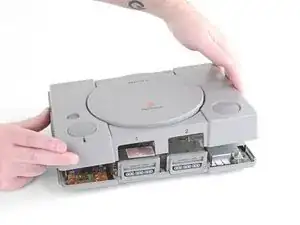

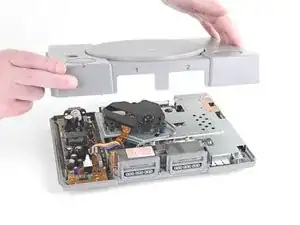

    • While holding the top and bottom halves of the console together, flip the console back over. Lift the top cover straight up to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
