Opening and repairing Petzl Tikka Plus 4-LED Headlamp

Geschrieben von: Toby
  • Kommentare: 9
Opening and repairing Petzl Tikka Plus 4-LED Headlamp

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

2 Minuten

Einleitung

  1. cWpPgu4VBRQUAItR

    • Push the catch on the top to open the battery compartment

  2. NmmJDpS1WZE2YfqT

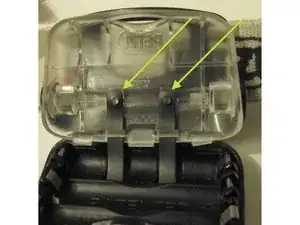

    • Remove the batteries and lift the two straps with a flat screwdriver. Pull the straps out.

  3. I5lSACMApNLcNwWx

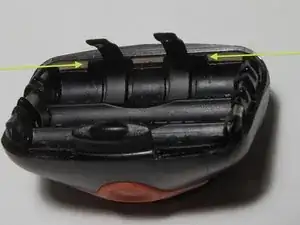

    • This is the most crucial part. Do NOT try to release the latches at the front. Insert a small screwdriver at the positions indicated in the back near the "belt hinges" to flex the rear part of the case back and free the latches of the inner part.

    An eyeglass repair kit screwdriver did the trick for me.

    John -

  4. F1hblXmFsI1dsdyO
    F1hblXmFsI1dsdyO
    xE6cEUXfEZ4VdYbF
    4mR5BjRiCKLW2Wo3

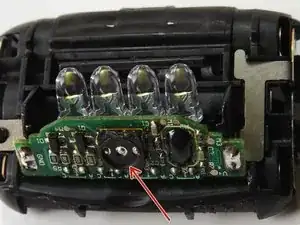

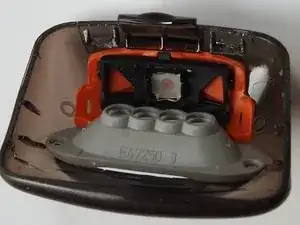

    • If all went well, the inner part should come out. In my case the push button fell into its pieces as well. You see the rubber layer and sheet metal clip of the button in the orange back of the outer knob.

    • The push button itself is a smd device of 6mm x 6mm and about 3.1mm height. The best thing would be to replace it. If you can get a spare part and can solder these tiny pads go for it. I just cleaned the dome spring with a piece of paper and reassembled it. Make sure you place the concave side of the dome spring on the three connectors.

    • Before reassembly try to insert batteries and verify that connecting the middle pole of the button to one of the outer ones switches the light on. Dont look straight into the LEDs, they're very bright!

Abschluss

To reassemble your device, follow these instructions in reverse order.
