Einleitung
The optical drive allows your laptop to read optical discs.
If your laptop cannot read discs anymore but other devices can read the same discs, your optical drive may be faulty and should be replaced.
-
-

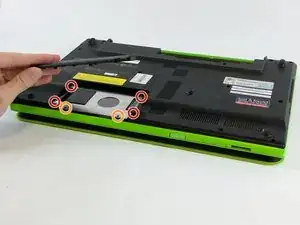

Unscrew the four screws to remove the hard drive cover.
-
Remove these two screws to loosen the hard drive.
-

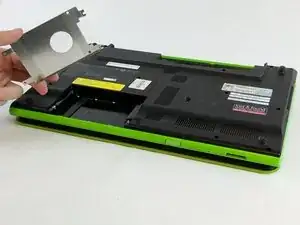

Gently slide the hard drive out.
-
-
-

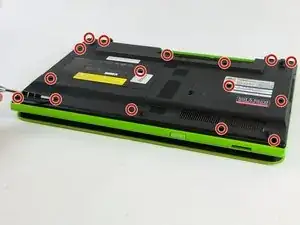

Remove all the screws that hold the plastic bottom on. There are some more screws that can't be seen in the photo.
-
-
-

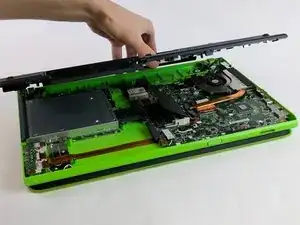

Gently pry up the plastic bottom and if it feels like it is resisting check the surrounding areas for more screws.
-
-
-

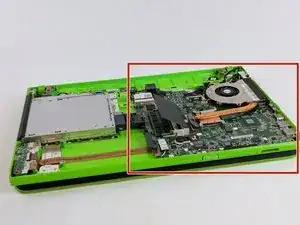

Now that the backing plate is off make sure to be careful of the Motherboard and its components from being damaged. From here on out it is recommended that you wear an anti static bracelet or at the very least touching something metal to remove any static electricity that you may have built up.
-
-
-
There will be a couple more screw holding in the CD tray and once you remove them the CD tray will simply slide out.
-
To reassemble your device, follow these instructions in reverse order.
