Optoma HD20 Color Wheel Replacement

Geschrieben von: Trever
  • Kommentare: 14
Optoma HD20 Color Wheel Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 15 Minuten

Einleitung

Use this guide to remove the color wheel from your Optoma HD20.

  1. WIVqHR2XosajwRLT
    WIVqHR2XosajwRLT
    TmhchmScJTlA2pt5

    • Twist the focal cap clockwise until it is fully extended.

    • Remove the focal cap by pulling it straight out.

    The pictures don't really do justice to how hard it is to pop the focal cap off. One actually has to pull pretty hard, I was afraid of breaking something, but it all worked out.

    eislerzoltan -

    you da best <3 ty for comment

    Weyland Chiang -

  2. wWE2cCrMiObJdQ4l

    • Use a Phillips #1 screwdriver to remove the three 7.5mm screws on the bottom of the device.

  3. DCYmASOdC2krhjVQ

    • Use a plastic opening tool to gently pry the top cover off of the device.

    • It is easier to pry off the cover from the back side just above the HDMI ports.

  4. AHZREYIPE1qwRGKX

    • When removing the cover, be cautious of the ribbon connecting the top buttons to the main circuit board. The ribbon must be disconnected before proceeding.

    • Remove the ribbon by disconnecting it from the main circuit board.

    • Lift up the clip holding it down and pull the ribbon out.

    The black part is the clip that lifts up. Then gently tug on the cable.

    The instructions are out of order here.

    dlwalter -

    Wish I had read your comment before struggling with it for what seemed like hours.

    eislerzoltan -

    Any advice for if you rip that ribbon?

    robby_g -

    Yes… Advice for when you go into this BEFORE consulting the internet and accidentally RIP it out?

    Mathew Amaral -

    I ripped the ribbon. Where can I find it’s replacement?

    Rohit Ghatol -

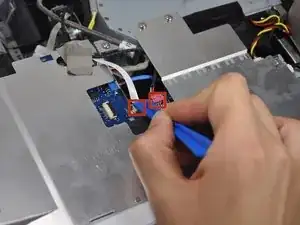

  5. VfcPJCCeTMC4OrAl

    • Use the plastic opening tool to remove the wiring.

    Removing the white ribbon wire on mine required pushing out toward the ribbon a gray/brown piece that holds the ribbon in place. Once it is moved out, it slides out easily. No lifting needed, just pushing.

    Human Front Range -

  6. dU4BflSH6juPkLHN

    • Use a Phillips #1 screwdriver to remove the 5.5 mm screws around the pin wheel.

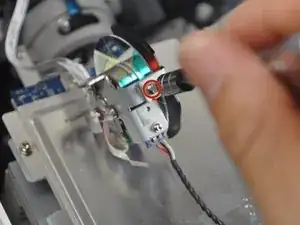

  7. xhMtCRQ4bqEgIpPy

    • Use a Phillips #1 screwdriver to remove 1 more 5.5 mm screw.

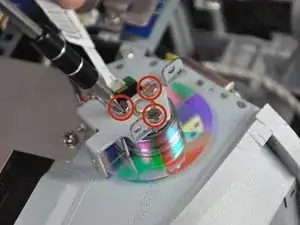

  8. FEhR24JLkedXmZOB

    • Using a flat head screw driver unscrew the back part to release the color wheel.

    • Do this carefully because these screws do not pull out.

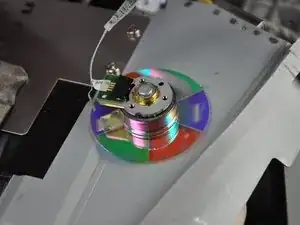

  9. al2EKvXjwG1fDcnp

    • Once unscrewed, remove the color wheel, and replace the part.

Abschluss

To reassemble your device, follow these instructions in reverse order.
