Ordro HDV-D395 Back Case Replacement

Geschrieben von: Mostafa Abdulaleem
  • Kommentare: 0
Ordro HDV-D395 Back Case Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 Minuten

Einleitung

If the buttons in the back case of your camcorder are broken, you can replace them by following these steps.

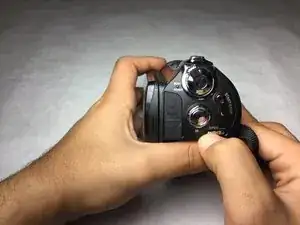

  1. 1ZRXymjigjOPZMvc
    1ZRXymjigjOPZMvc

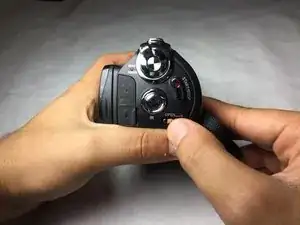

    OWiXZOELMxA6uVGe

    • Pull the slider labeled open, on the bottom right, to unlock the battery.

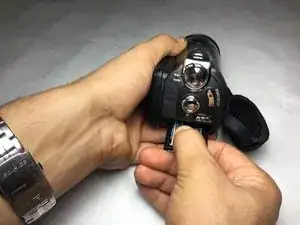

  2. sG2GSDBuOCmeNYav

    • Pull battery out of slot.

  3. vaFHLtnJAyT2GfXL

    • Unfold the screen from the side of the camera.

  4. WuZ2KU3iqP6SoQfr

    • Twist the screen so that the screen is facing downward.

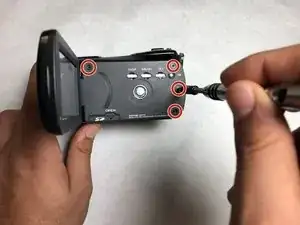

  5. G3jItLV1ibEbhVjR
    G3jItLV1ibEbhVjR
    dUTJvO5pEvCLvkOK

    • Unscrew the four screws on the side (length 2.9 mm) with a JIS #000 screwdriver.

    • Unscrew the three screws on the bottom (length 7.7 mm) with a JIS #000 screwdriver.

  6. uXyAxYZijqRaeMZP

    • Pull apart the camera into two pieces by pulling the side with the screen away from the main body of the camera.

  7. oB3SWSiRRML5yyN3
    oB3SWSiRRML5yyN3

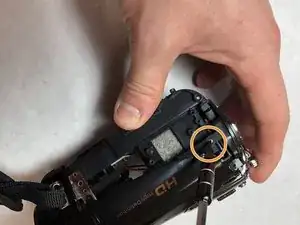

    cNOGeqhZ2TfbZAMU

    • Unscrew the two screws (size 4.75 mm) with a PH #00 screwdriver.

    • Unscrew the screw (size 7.65 mm) with a PH #00 screwdriver.

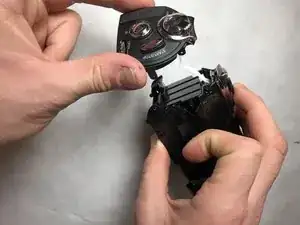

  8. DV5MrKbHtQXAEU6Q

    • Take the back case off by pulling it away from the main body.

    • Be careful not to tear the white strap that connects the back case to the main body.

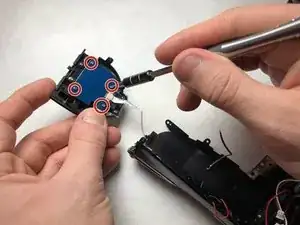

  9. rdYVUweSFYRA6PRo

    • Unscrew all four screws (length 4.13 mm) on the inside of the case with a PH #00 screwdriver.

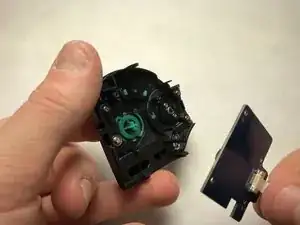

  10. wTOS5WjmBialASbg

    • Pull the board away from the back case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
