Oregon Scientific Meep! 4.0 Battery Replacement

Geschrieben von: Jess Forte
  • Kommentare: 0
Oregon Scientific Meep! 4.0 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

Using this guide, you will be able to open your Oregon Scientific Meep! and remove your faulty battery, which can be replaced with a new one.

  1. 6A2ymCnNeRClZVFu

    • Use a screwdriver to remove the four 7.0 mm Philips #00 screws from the back of the device.

  2. Gdlk6mGRgd4c64m6

    • Use a plastic opening tool to detach the clips on the inside of the device.

  3. oGjpWwRUlWGDkJXp

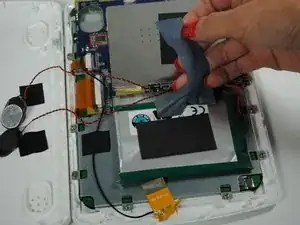

    • Remove the black tape holding the battery in place.

  4. dBDrdofkkJdpMbVp

    • Use a spudger to separate the battery from its adhesive.

  5. qqFIf4u4P1alrkiT
    qqFIf4u4P1alrkiT
    ZDmGixkxeMVTTDqN

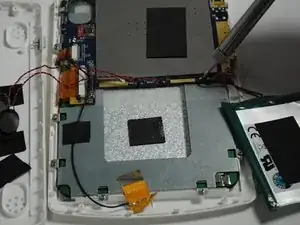

    • Use a soldering station to separate the battery from its connecting wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.
