Einleitung
Follow the steps in this guide to replace the broken microphone of your Oregon Scientific Meep! 4.0 tablet.
Werkzeuge
-
-
Use a screwdriver to remove the four 7.0 mm Philips #00 screws from the back of the device.
-
-
-

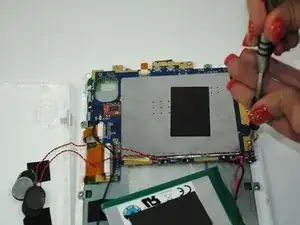

Use a screwdriver to remove the three 7.0 mm Philips #00 screws and unscrew the motherboard.
-
-
-

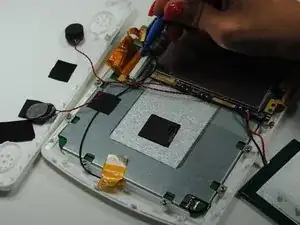

Use a plastic opening tool to release the three ribbon cables attached to the motherboard.
-
-
-

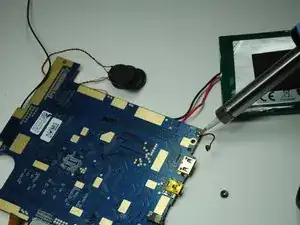

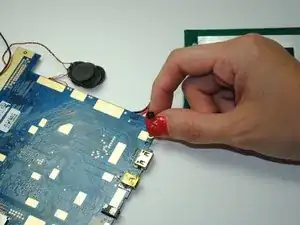

Lift up the motherboard and use a soldering station to remove the microphone from its wires.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
