Einleitung

By following the steps below, you will be able to remove and replace the speakers of your Oregon Scientific Meep! 4.0.

  1. 6A2ymCnNeRClZVFu

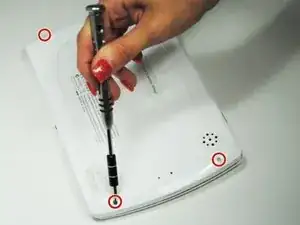

    • Use a screwdriver to remove the four 7.0 mm Philips #00 screws from the back of the device.

  2. Gdlk6mGRgd4c64m6

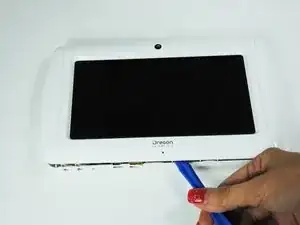

    • Use a plastic opening tool to detach the clips on the inside of the device.

  3. 6TTgnBsmPjt5oFNS
    6TTgnBsmPjt5oFNS
    ErFuy4ZvLmPwPWZn

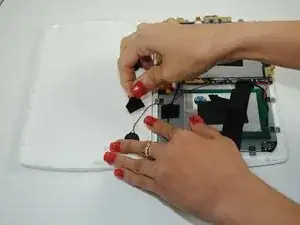

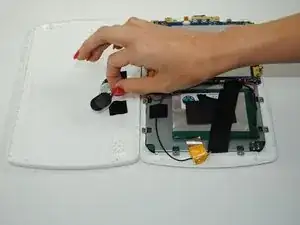

    • Remove the electric tape holding the wires of the speakers in place and gently pull the speakers out of their slots in the device.

  4. noB3gjiqXfWda6eZ
    noB3gjiqXfWda6eZ
    2MsFrY3E5cPJFGiN

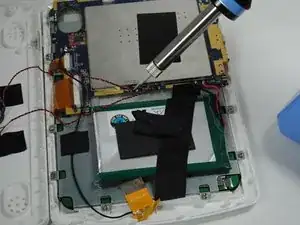

    • Use a soldering station to separate the wires from the speakers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
