Einleitung

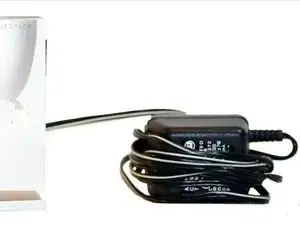

The A/C Power Adapter enables the projector to be on continuously. Replacing this item could fix a malfunctioning projector.
-
-

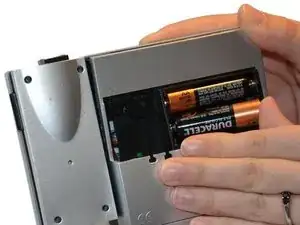

To access the A/C Power Adapter connection, remove the battery cover, located on the back of the clock.
-
-
-

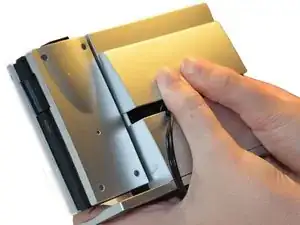

To remove the battery compartment cover, slide the cover up towards the top of the clock while applying slight pressure.
-
-
-

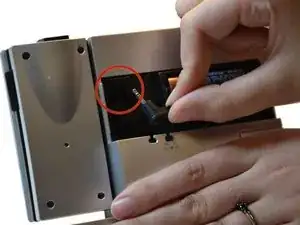

To plug in the A/C Power Adapter, insert the tip into the socket, located to the left of the batteries, and press firmly.
-
-
-

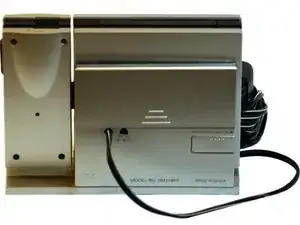

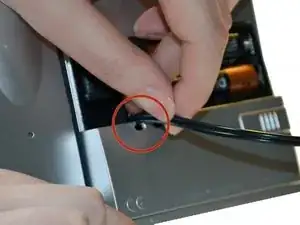

Once the A/C Power Adapter tip is inserted in the socket, guide the cord through a notch directly below.
-
To reassemble your device, follow these instructions in reverse order.
