Origin EON17-S mSATA SSDs Replacement

Geschrieben von: Caelan Langdon
  • Kommentare: 0
Origin EON17-S mSATA SSDs Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 - 40 Minuten

Einleitung

This guide will show you how to access and remove the mSATA SSD from both locations in the Origin EON17-S.

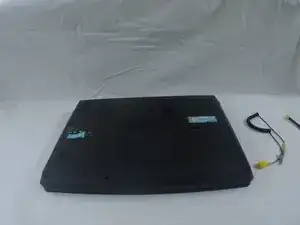

  1. FhMFTgfjBMtKCITW

    • Opening your computer can be dangerous; give it at least 10 minutes to cool down after shutdown and ensure the power supply and battery are disconnected.

    • Disconnect all peripherals.

    • Disconnect the power cord.

    • Lay the computer upside-down.

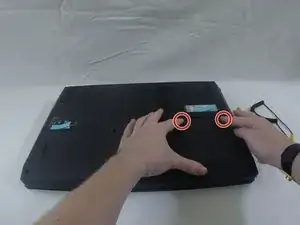

  2. tDBapihJfbVlVEjT
    tDBapihJfbVlVEjT
    wnDIJxi25NntgECT

    • Push both locking tabs inward. One is spring loaded and will need to be held while removing the battery.

    • Remove the battery by pulling up on the tab.

    • To replace the drive in mSATA bay 1, continue to Step 3.

    • To replace the drive in mSATA bay 2, proceed to Step 7.

    • If you are unsure which drive you are replacing, follow all of the remaining steps.

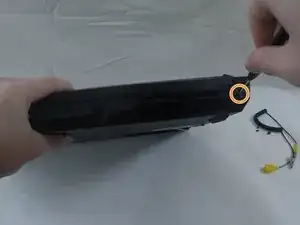

  3. gybpWgckAlZmZbXF
    gybpWgckAlZmZbXF
    jqNT2VyUAGjRsRXa
    UtpJ3ROsWJxtEpIj

    • Performing the following actions incorrectly can damage your hard drive and could result in lost data. Consider backing up your hard drive(s) before proceeding.

    • Remove the component cover by removing the six screws with a 3/32" screwdriver.

    • Remove the screws from the bottom of the computer.

    • Remove the screws from the back of the computer.

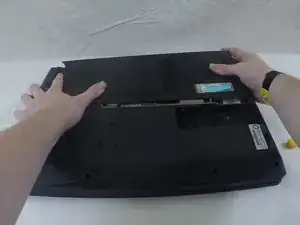

  4. VNPFRMXAOZJ6wZ1a

    • Remove the cover by gently pulling back and up.

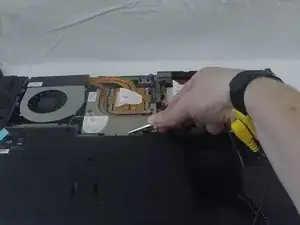

  5. iCKEL1FqOP1UgCHj

    • An electrostatic discharge could damage your computer. Use an electrostatic wrist strap when working inside the computer.

    • Put on the electrostatic wrist strap and attach the alligator clip to a sturdy piece of metal inside the case.

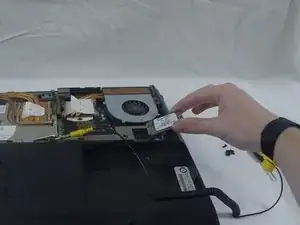

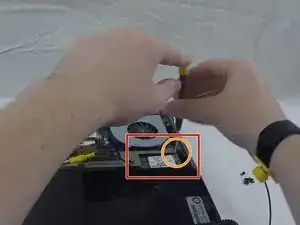

  6. DguCXtGObOhExK1U
    DguCXtGObOhExK1U
    iBEtSNLoI5ZfqQ1c

    • You will see the mSATA drive in the lower right hand corner of the component area.

    • Remove the screw on the far right side of the drive.

    • The drive will rise up to an angle.

    • Remove the drive by pulling in the direction the drive is positioned.

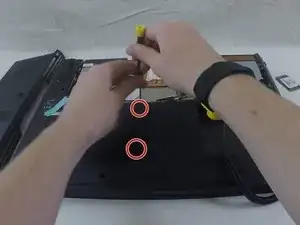

  7. CAFVYWwptOdgU1KY
    CAFVYWwptOdgU1KY
    P1GSuQ3ZEO1Mhc1w

    • Unscrew the two screws holding the hard drive cover to reveal the second mSATA bay.

    • There are two snaps on this cover, pull firmly but carefully to remove it without breaking them.

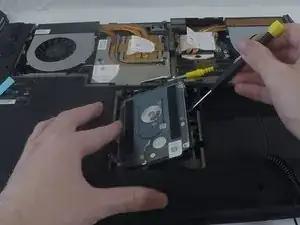

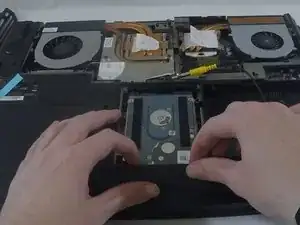

  8. AsdFUVUXxrY1C6AY
    AsdFUVUXxrY1C6AY
    QJMgrcctXmxaP1dN

    • Removing the hard drive is necessary to get to the second mSATA bay.

    • Remove the hard drive by sliding it towards you.

    • Once it is free of the port, use a screwdriver to gently pry it from the bay.

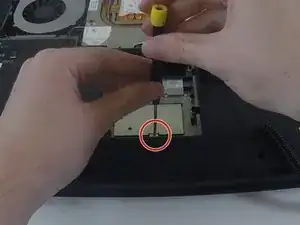

  9. yuS6ou51PtUO2wBh

    • Remove the small, silver, rectangular plate below the hard drive bay.

    • Remove the small screw at the front of the plate.

    • Pull the plate up and out.

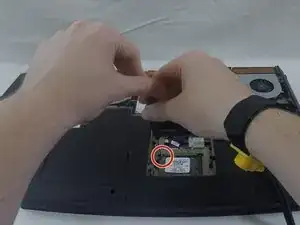

  10. 43wRvWtrEHlKiVHZ
    43wRvWtrEHlKiVHZ
    OYV1ZGAkosEhUhtU

    • Remove the small screw on the upper left of the hard drive.

    • The drive will rise up at an angle.

    • Remove the drive by pulling in the direction the drive is currently positioned.

Abschluss

To reassemble your device, do anything you did in reverse.
