Einleitung
If you have issues with using the joystick, either due to a broken or unresponsive joystick, the joystick module may need to be replaced. This guide will show you how to replace the joystick module.
Ersatzteile
-
-
Use Phillips #00 screwdriver to remove the three screws found on the gimbal stabilizer to detach handle from gimbal.
-
Carefully detach handle from gimbal and disconnect the cable that connects the two.
-
-
-

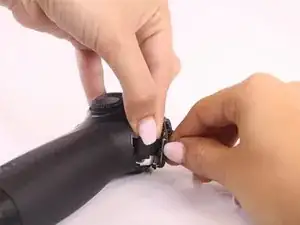

Locate the hex screws found at the top base of the handle, and unscrew using the 1.5mm hex screwdriver.
-
-
-
Remove the quick release PCBA by locating the connecting wires and release the ribbon cable with tweezers.
-
Use the spudger to pry open and remove the face plate, starting at the back of the handle.
-
-
-
Locate four screws directly on top of handle.
-
Unscrew the silver, bottom two screws, that are closest to the face plate using the 00 screwdriver.
-
Unscrew the black, top two screws, located furthest from the face plate, using the 0 screwdriver.
-
Remove the remaining two screws found on the front of the faceplate.
-

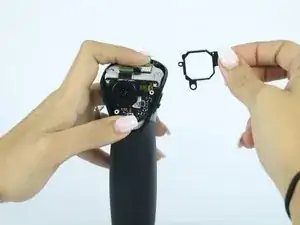

Remove the rest of the face plate shell.
-
-
-

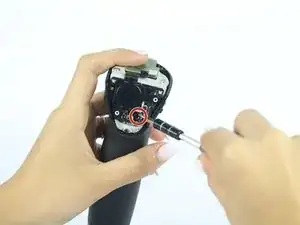

Remove the top left screw on the joystick panel with 00 screwdriver.
-

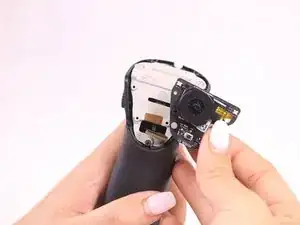

Lift the faceplate holding joystick module.
-
-
-

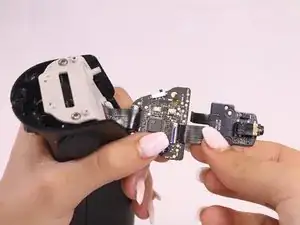

Hold down the larger of the two ribbon cables, and pull on the circuit board with a constant and careful down and out motion.
-
-
-
Gently remove joystick module by pulling it through the circuit board and inserting the new module.
-
To reassemble your device, follow these instructions in reverse order.
