Osmo Mobile Handle Disassembly

Geschrieben von: Ustena Safa

Kommentare: 19

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 Minuten

Einleitung

Learn how to take apart the Osmo Mobile handle in order to gain access to other repairs such as the joystick, Bluetooth apparatus, trigger buttons and the charging port.

Werkzeuge

Schritt 1

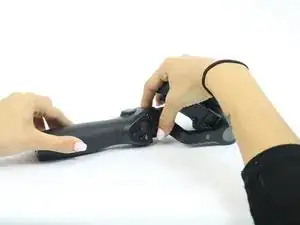

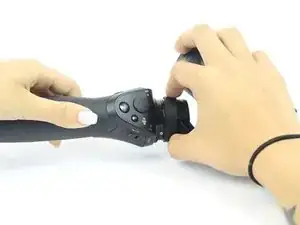

Remove gimbal from base handle by loosening round plate found at the top of the handle.

This step isn't clear. How is the ring removed? Twist? Pry?

Jo Dee Lee - 30/09/18

Same question for me

Guitt97ii - 30/09/18

Tried for hours. Seems it’s glued on?

Jo Dee Lee - 01/10/18

ok, the top cap is screwed on. I used a double sided tape around it to have a better grip and just twisted it. The cap has thread lock in it.

Jo Dee Lee - 01/10/18

You passed this step?

Guitt97ii - 01/10/18

U passed this step???

Guitt97ii - 10/10/18

No solution for this step?

Guitt97ii - 02/10/18

Schritt 2

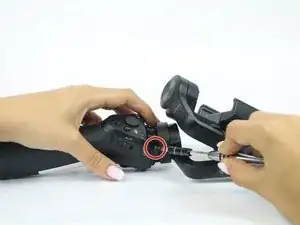

Use Phillips #00 screwdriver to remove the three screws found on the gimbal stabilizer to detach handle from gimbal.
Carefully detach handle from gimbal and disconnect the cable that connects the two.

Schritt 3

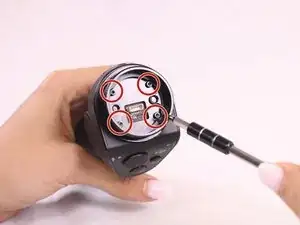

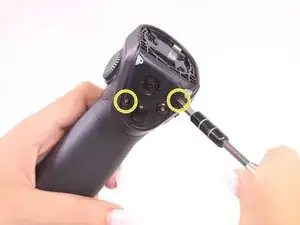

Locate the hex screws found at the top base of the handle, and unscrew using the 1.5mm hex screwdriver.

Schritt 4

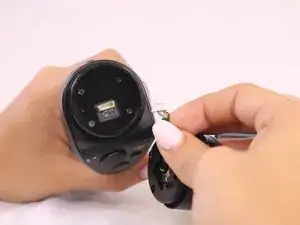

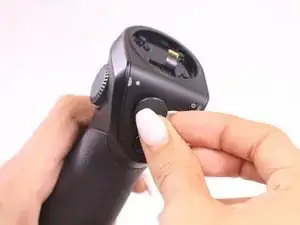

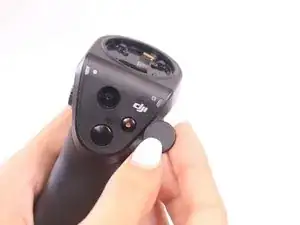

Remove joystick by gently pulling away from handle

Schritt 5

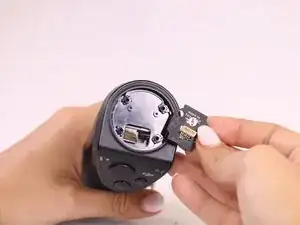

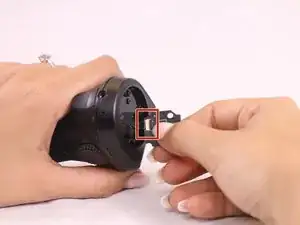

Remove the quick release PCBA by locating the connecting wires and release the ribbon cable with tweezers.

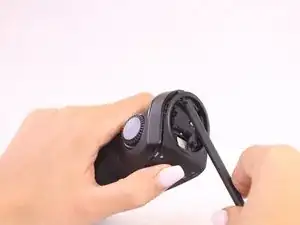

Use the spudger to pry open and remove the face plate, starting at the back of the handle.

Schritt 6

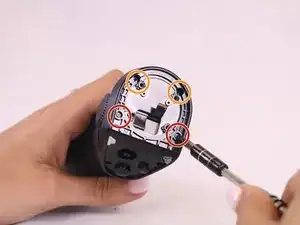

Locate four screws directly on top of handle.
Unscrew the silver, bottom two screws, that are closest to the face plate using the 00 screwdriver.
Unscrew the black, top two screws, located furthest from the face plate, using the 0 screwdriver.
Remove the remaining two screws found on the front of the faceplate.

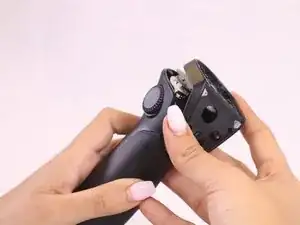

Remove the rest of the face plate shell.

hola alguien sabe donde puedo adquirir la face plate shell de refaccion?

gracias

jose - 09/09/19

I know. - Nowhere. You need buy another gimbal (non-working) for a parts. By the way, it will be good to make a manual for other disassembling of a gimbal - I mean rotating parts. Some info of this can be found in this video on Youtube: https://www.youtube.com/watch?v=-5Xi-b8s...

But not too much :(

nik_gmp - 27/12/19
