Oster 3905 Outer Shell Replacement

Geschrieben von: Melissa
  • Kommentare: 0
Oster 3905 Outer Shell Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

30 Minuten

Einleitung

Prerequisite only.

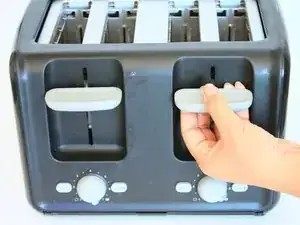

  1. wQvKW2mnRMOyl3WZ

    • Firmly grip your hand around the slot lever.

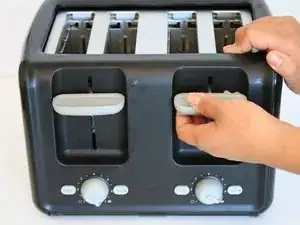

  2. 3uKar4sLpjZBpNSY

    • Stabilize the toaster by placing your hand on top.

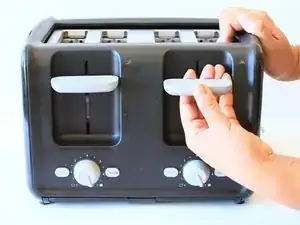

  3. dUtdXOudieotxRcc
    dUtdXOudieotxRcc
    B6mndQPAALOB4Ogk

    • Forcefully pull the slot lever away from the toaster by keeping parallel to the table.

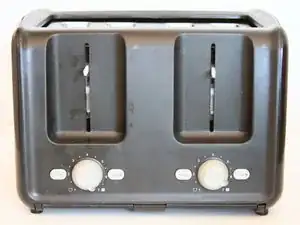

  4. 3HyiogBBxXVkhVDi

    • Both slot levers can be removed.

  5. htXNCWCDFHtO3nal

    • Place the toaster upside down so the bottom is facing the ceiling.

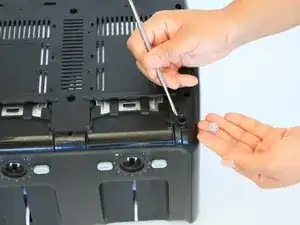

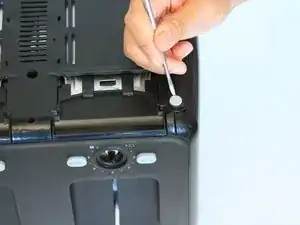

  6. dqTTAImhTGblZi3R
    dqTTAImhTGblZi3R
    21RK2aRLQb5Urjnu

    • Take off both rubber feet using a small metal spudger.

    • Wedge a spudger under the feet and pull up to pop off.

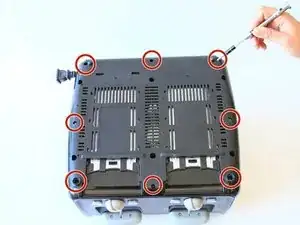

  7. 2kET52AqcBAhC3Cs

    • Use a PH#2 screw bit to remove eight 12mm screws that are located around the perimeter.

    • There are two screws under the rubber feet.

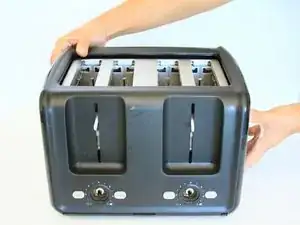

  8. df1xAxTxDD3hivQm

    • Place the toaster right side up.

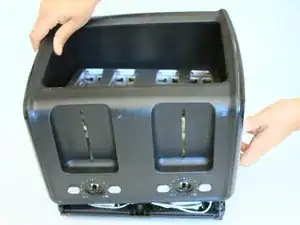

  9. llSMmqURAJZfBEPc
    llSMmqURAJZfBEPc

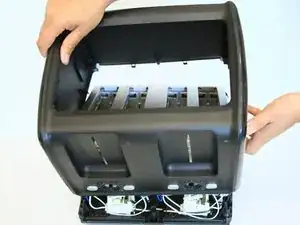

    LrOkSN4dLGGXloJY

    • Grab the outer shell firmly and pull up towards the face of the toaster.

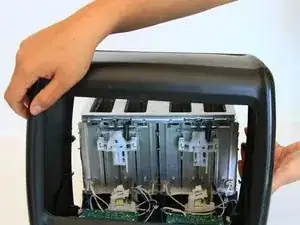

  10. L2s1ec4aHCDcGxMv

    • For this part, you might need to wiggle the toaster to get the outer shell off.

    • The shell will not completely come off until the motherboard is removed in the next step.

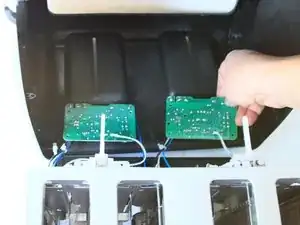

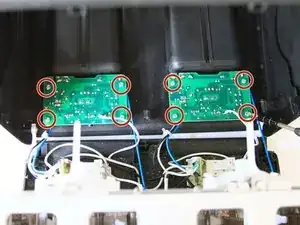

  11. c1MDVCIlIpSDXLJp
    c1MDVCIlIpSDXLJp
    2C5fCOiEenQTFF31
    R5FXynN11Jy1sjQ4

    • Use a J1 screw bit to unscrew eight 8mm screws from the motherboard.

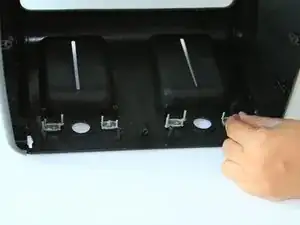

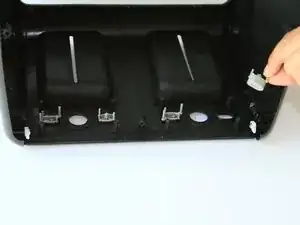

  12. nHAOjlI1yeeSikl2
    nHAOjlI1yeeSikl2
    N6wCWQLunBWaPrQ3

    • Take out the grey “cancel” and “bagel” buttons from the shell.

Abschluss

To reassemble your device, follow these instructions in reverse order.
