Einleitung
This repair is challenging because the wire that acts as the spring is difficult to bend into the correct shape.
Werkzeuge
-
-
Using the Phillips-head #2 screwdriver, unscrew the three 1cm Phillips-head screws on the plastic base of the toaster to separate the outer metal shell from the plastic base.
-
-
-
Push the plastic push-down handle down and pull the plastic handle straight from metal arm.
-
-
-
Loosen the outer metal shell from the plastic base by holding the plastic base while pulling up on the metal shell.
-
-
-

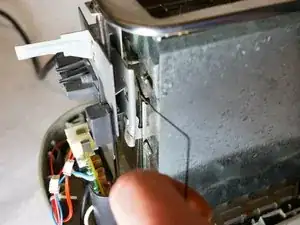

Disconnect the cable clips from the circuit board using the tweezers to free the outer metal shell from the plastic base.
-
-
-

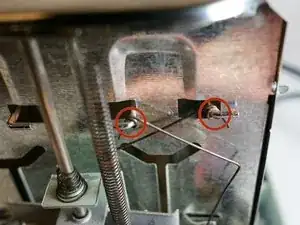

Press down on the toaster handle to access to the grabber spring located behind the large metal plate.
-
-
-

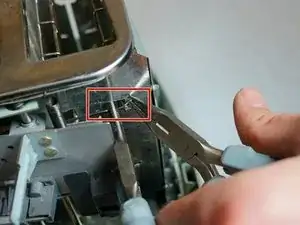

Use the large needle nose pliers to unwind the grabber spring from one side of the carriage to remove.
-
Repeat this step for the opposite side.
-
To reassemble your device, follow these instructions in reverse order.
