Use this guide to replace your old or damaged Drinking Lid Seal.

  1. cmRqNPsGAIKMOBVH
    cmRqNPsGAIKMOBVH
    opiLHrD4TSKlAAYy
    • Grip the blender base with one hand and blender bottle with the other hand.

    • Rotate the blender bottle a quarter turn counterclockwise .

    • Lift the blender bottle out of the blender base. The blade assembly should still be attached to the blender bottle.

  2. jfsmfsn2TFaTMvSL
    jfsmfsn2TFaTMvSL
    elHsdFyvWZflWBHC
    otST15IEfw2wFPQH
    • Grip the blade assembly with one hand and blender bottle with the other hand.

    • Rotate the blade assembly counterclockwise until it is completely unscrewed from the blender bottle.

    • Lift the blender bottle to separate it from the blade assembly.

  3. LjobGsOYKMOTX1b5
    • After removing the blade assembly from the blender bottle, ensure that your drinking lid assembly has its seal placed in the seal bed.

  4. qSiMbUqRYLZEXOmE
    qSiMbUqRYLZEXOmE
    WGpkWnZDOQfN3Mnu
    O4QphGdyOkYebxEQ
    • Grab the blender bottle with one hand and the drinking lid assembly with the other.

    • Place the drinking lid assembly onto the blender bottle and twist it clockwise until it is tight around the blender bottle.

  5. wfpfvY1ZYAbruaWO

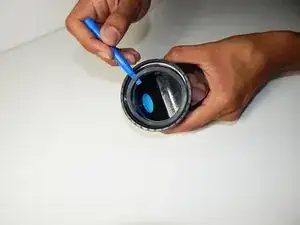

    • After separating the drinking lid assembly from the blender bottle, position the plastic opening tool on either side of the seal in the drinking lid assembly.

    • Wedge the tool between seal and seal seat wall.

  6. k4aZT1vtwm4XEj3g
    k4aZT1vtwm4XEj3g
    N6AYJfwpRxDABwwd

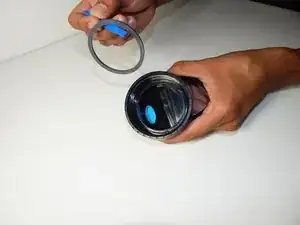

    • Gently pry the seal up while lifting seal out of the seal seat.

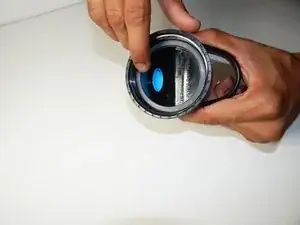

  7. xtAlKTPODEUUWmhq
    xtAlKTPODEUUWmhq
    YLPysksIVRhDWEpQ

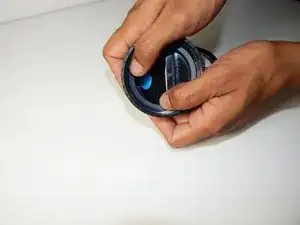

    • Press new seal into seal seat with finger.

    Taking out the seal is simple, finding a replacement nearly impossible. Where can I get one?

    Nicole Mezic -

Abschluss

To reassemble your device, follow these instructions in reverse order.
