Oster Expressbake CKSTBRTW20 Inner Chamber Replacement

Geschrieben von: Megan Saunders
  • Kommentare: 0
Oster Expressbake CKSTBRTW20 Inner Chamber Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

20 Minuten

Einleitung

The inner cooking chamber may get dirtied or broken with use. This guide will show how to remove the inner chamber in order to properly replace it.

  1. fESYlVnCF16Oxiwi

    • Remove the bread pan.

  2. J4QOxeqOBA221FZ4
    J4QOxeqOBA221FZ4
    UVWGT245LglAIHVY
    aOaIuHkoyVyFvnHa

    • Remove the eight 22mm Phillips #1 screws from the grey lining.

    • Remove the grey liner.

  3. cvQcKh6t55HpeeGv
    cvQcKh6t55HpeeGv
    4pcUiknXH3B2RPxI

    • Remove the two 11mm Phillips #1 screws from the back of the device.

  4. PoQILLhnSPXKduoi
    PoQILLhnSPXKduoi
    tMgqjkftjjvEZtrU

    • Pop off the top case using a spudger.

    • Keep the spudger away from the control panel.

    • Be aware of wires connecting the microcontroller to the panel when removing the top lining.

  5. VuPE5lBC3jkXfmn6
    VuPE5lBC3jkXfmn6
    X3sbSyYNigXuDx3F
    TM1FQq4jScfC5iT1

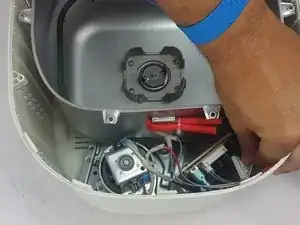

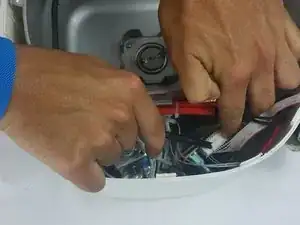

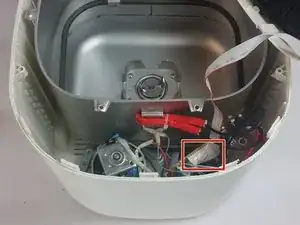

    • Disconnect microcontroller and top lining.

    • Ground yourself prior to disconnecting in order to avoid harming the inner electronics.

  6. UGDMtycqOqeqgg16
    UGDMtycqOqeqgg16
    HAAU6OHP3L5OLmsk
    OTMYIaCGSC4qb1AV

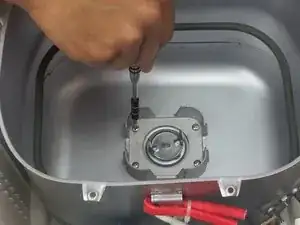

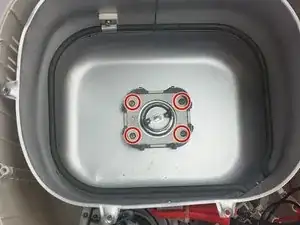

    • Remove the four 11mm Phillips #1 screws holding from the guard and inner lining.

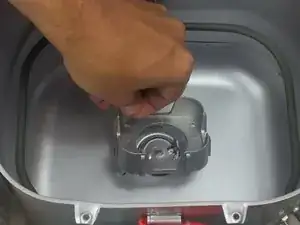

    • Remove small rectangular guard from bottom of liner

  7. dUDEfTOlrsFxYbC6

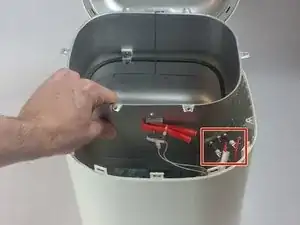

    • Remove the inner liner.

    • The inner liner will be connected to the outer chamber with wires.

  8. LNBVArirCa5VpIEg
    LNBVArirCa5VpIEg
    oyyuIDIIbYD6xu3i
    eHJRGHDY1NDyaPXG

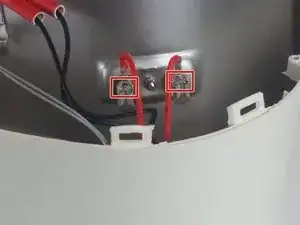

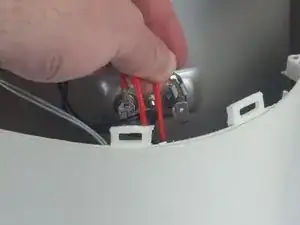

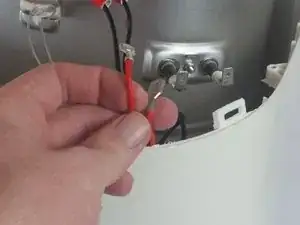

    • Disconnect the red wires from the inner liner.

  9. LPHSVfMN1iQaAh6Z
    LPHSVfMN1iQaAh6Z
    buLqXFXPTpikbCDD

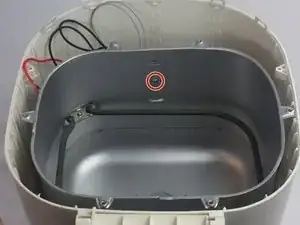

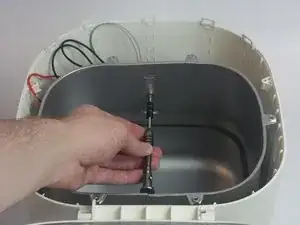

    • Remove the single 11mm Phillips #1 screw thats holding and inner lining in place.

  10. vtoUGYESwIkWZY3O
    vtoUGYESwIkWZY3O
    bZmNSyCI435p24ED
    D56vRQZT4H1RYf3x

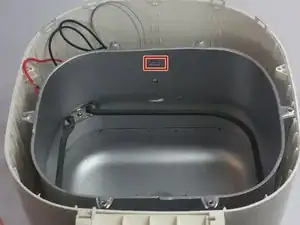

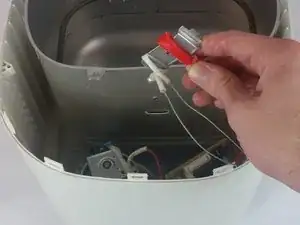

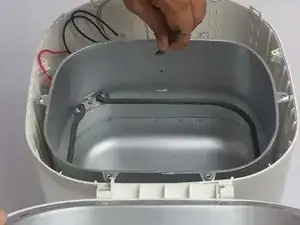

    • Use a spudger to push out the connector found on the inner lining.

  11. TAHPrQB4yUUXdiTB
    TAHPrQB4yUUXdiTB
    ZWPDECKmdtPwBD4V

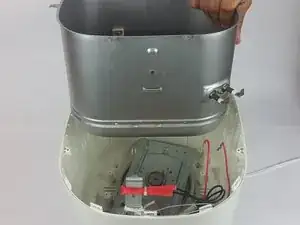

    • Remove lining.

Abschluss

To reassemble your device, follow these instructions in reverse order.
