Oster Expressbake CKSTBRTW20 Top Panel Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

The buttons may get stuck or broken with use. This guide will show how to remove the buttons in order to properly replace them.

  1. fESYlVnCF16Oxiwi

    • Remove the bread pan.

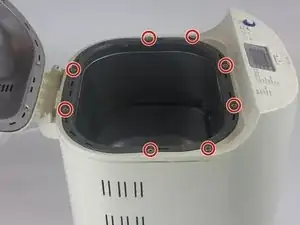

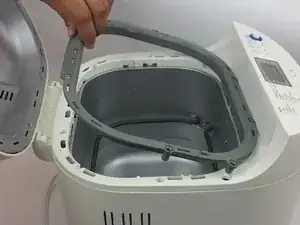

  2. J4QOxeqOBA221FZ4
    J4QOxeqOBA221FZ4
    UVWGT245LglAIHVY
    aOaIuHkoyVyFvnHa

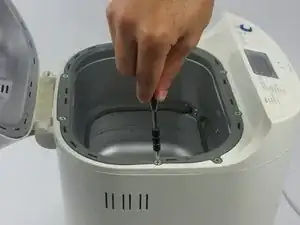

    • Remove the eight 22mm Phillips #1 screws from the grey lining.

    • Remove the grey liner.

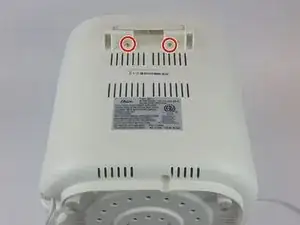

  3. cvQcKh6t55HpeeGv
    cvQcKh6t55HpeeGv
    4pcUiknXH3B2RPxI

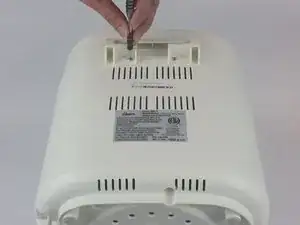

    • Remove the two 11mm Phillips #1 screws from the back of the device.

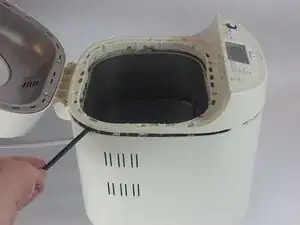

  4. PoQILLhnSPXKduoi
    PoQILLhnSPXKduoi
    tMgqjkftjjvEZtrU

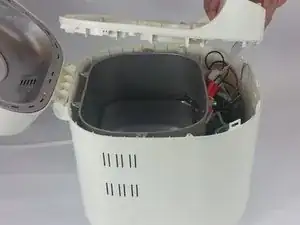

    • Pop off the top case using a spudger.

    • Keep the spudger away from the control panel.

    • Be aware of wires connecting the microcontroller to the panel when removing the top lining.

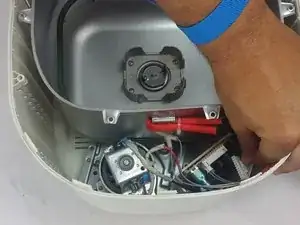

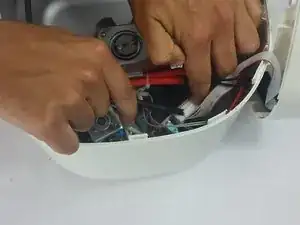

  5. AmQ1GOxrVMfaXYwF
    AmQ1GOxrVMfaXYwF
    gSMYOdKE4qAEut4f
    e4Lfd3a5u4igRZoy

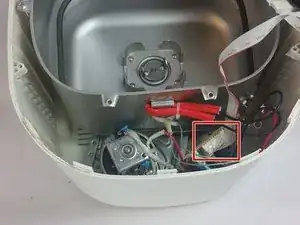

    • Disconnect microcontroller and top lining.

    • Ground yourself prior to disconnecting in order to avoid harming the inner electronics.

  6. CkHVBL6WTOSjVaRh
    CkHVBL6WTOSjVaRh
    bBPOZALJ11QBh5tO

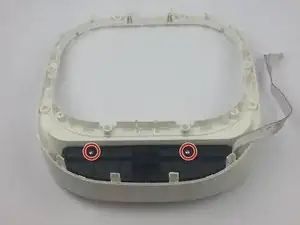

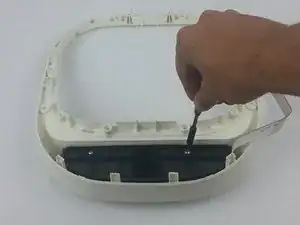

    • Remove the two 11mm Phillips #1 screws from the top cover.

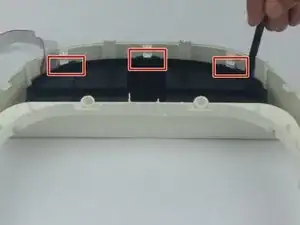

  7. xO52lVwBKhXsawVE

    • Use spudger to pop the control panel out.

  8. TNngh2sJmXiZavbK
    TNngh2sJmXiZavbK
    JegdOJcIlW25CTsb
    UwHWMCet5gOMn3cV

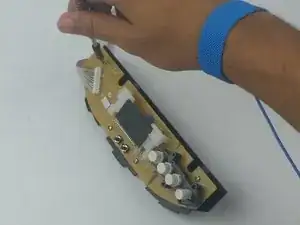

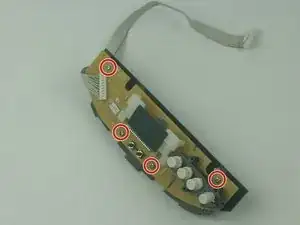

    • Remove the four 11mm Phillips #1 screws from the control panel.

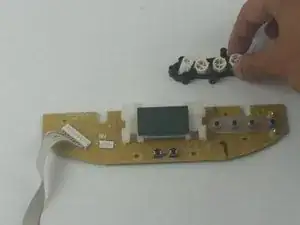

  9. aENwv2acRlTrkPt2
    aENwv2acRlTrkPt2
    FWS6aAT6YhNGyYaW
    VbSkTvdWJ1tmCjVr

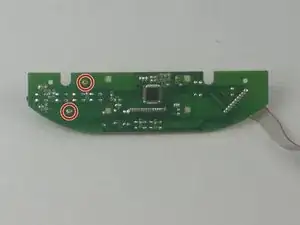

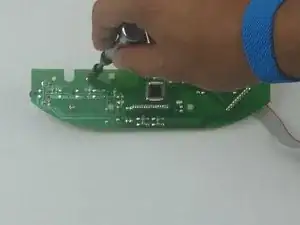

    • Remove the two 11mm Phillips #1 screws from the button panel.

    • Flip the screen assembly over and remove the button panel.

  10. iOpJpolxxSyvTTli
    iOpJpolxxSyvTTli
    RZHTLOhtqYEjPbTr

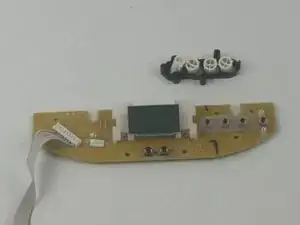

    • Remove and replace buttons as necessary.

Abschluss

To reassemble your device, follow these instructions in reverse order.
