Oster Expressbake CKSTBRTW20 Top Panel Removal Replacement

Geschrieben von: Megan Saunders
  • Kommentare: 0
Oster Expressbake CKSTBRTW20 Top Panel Removal Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

This guide will show you how to properly remove the top panel of your Expressbake Bread Maker in order to remove and replace any inner components.

  1. fESYlVnCF16Oxiwi

    • Remove the bread pan.

  2. J4QOxeqOBA221FZ4
    J4QOxeqOBA221FZ4
    UVWGT245LglAIHVY
    aOaIuHkoyVyFvnHa

    • Remove the eight 22mm Phillips #1 screws from the grey lining.

    • Remove the grey liner.

  3. cvQcKh6t55HpeeGv
    cvQcKh6t55HpeeGv
    4pcUiknXH3B2RPxI

    • Remove the two 11mm Phillips #1 screws from the back of the device.

  4. PoQILLhnSPXKduoi
    PoQILLhnSPXKduoi
    tMgqjkftjjvEZtrU

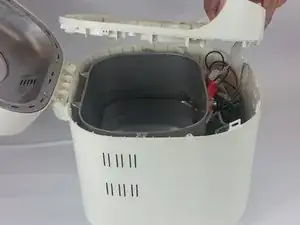

    • Pop off the top case using a spudger.

    • Keep the spudger away from the control panel.

    • Be aware of wires connecting the microcontroller to the panel when removing the top lining.

Abschluss

To reassemble your device, follow these instructions in reverse order.
