Einleitung

The top viewing glass may get cracked or broken through time. This guide will show how to remove the inner panel in order to replace the viewing glass.

  1. SZxDaBL3kTcmlNUX
    SZxDaBL3kTcmlNUX
    VYEKhQwHq2CngqEF

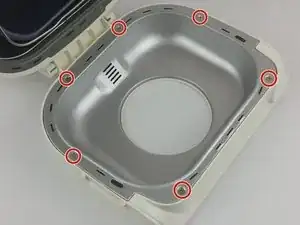

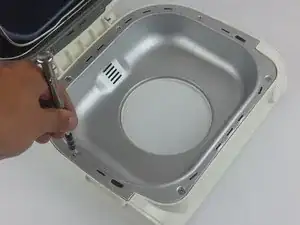

    • Remove the six 55.4mm Phillips #1 screws from the top panel.

  2. nlb5gGkYS1Nmkp4k

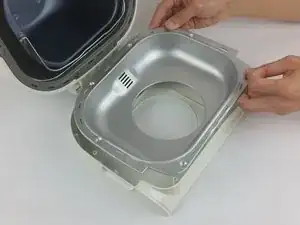

    • Lift the inner lining away from the device.

  3. vMIesdDZrOLClOuU
    vMIesdDZrOLClOuU
    6HyoHfTFxVNfRWAy

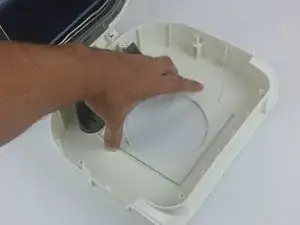

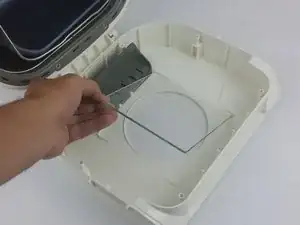

    • Remove the viewing glass and replace.

Abschluss

To reassemble your device, follow these instructions in reverse order.
