Osterizer Blender 14 Speed All Metal Drive Disassembly

Geschrieben von: Kaia Williams
  • Kommentare: 0
Osterizer Blender 14 Speed All Metal Drive Disassembly

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

45 Minuten

Einleitung

This blender is a staple of a majority of common households. It consists of a motherboard and motor that allows the blender to work. For this repair guide, our main focus is to disassemble the motor from the rest of the blender.

  1. 41UdaNOCI4j5WKNw
    41UdaNOCI4j5WKNw
    kEw3FsaDVHtFGSaA

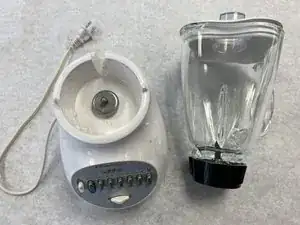

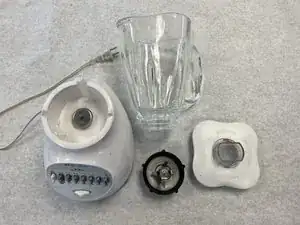

    • Take the blender and place the top, cup, and blades aside

    • Blades of the blender are sharp, so when setting aside do not cut yourself

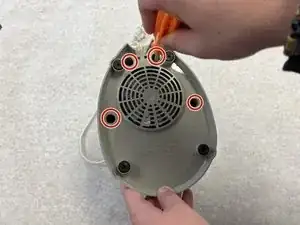

  2. 4rGMQYRvLxyRstQw
    4rGMQYRvLxyRstQw
    ktUCsOvSVPpEraow

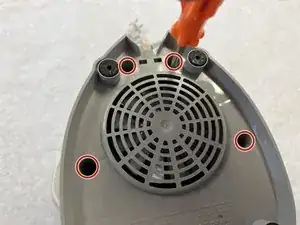

    • Flip over the base containing the motor of the blender

    • Use the Phillips Head Screwdriver to remove the 4 screws as pictured

  3. fH4Ir6ceuagiS45d

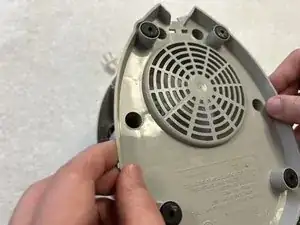

    • Remove the bottom panel

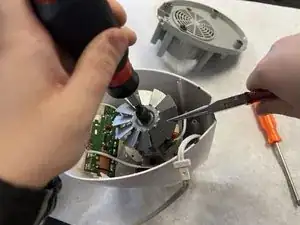

  4. hRJBKqjDMQvbOnbR

    • Use an 11mm screwdriver to remove the screw from the fan blade

    • Remove the fan blade

  5. dH5KuKm2d4wovHi2

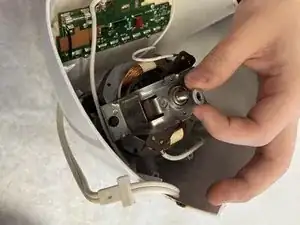

    • Locate the washer beneath the fan and remove it from the motor

    • To remove the washer, twist it in a counterclockwise motion

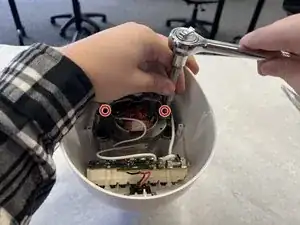

  6. hvcble4SLN3WgCIL
    hvcble4SLN3WgCIL
    hfY2jTULRoL6lJZa

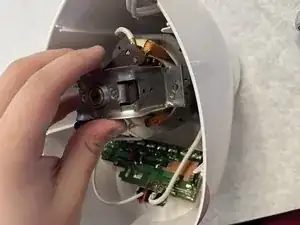

    • Use a 6.5mm wrench and extender to remove the 2 screws holding the top of the motor in place

  7. i1yhIWbSWeZPxiaP
    i1yhIWbSWeZPxiaP
    kh2JkgeXHMCZ6fCU
    NhcOx26nAJJPQSpT

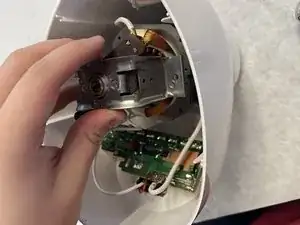

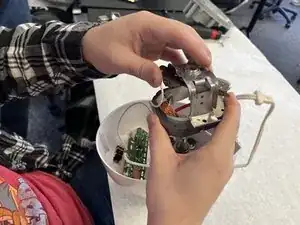

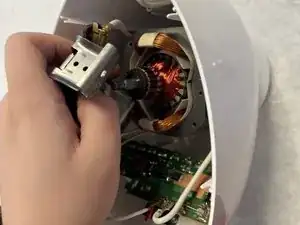

    • Take out the motor and copper wires from the blender

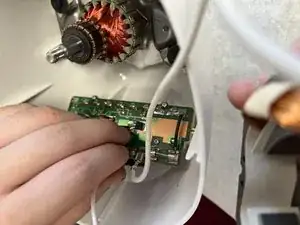

  8. 2m6ZpjA1qQ2uMkUt
    2m6ZpjA1qQ2uMkUt
    3wMuTq2wTPyD6jfb
    oiMkgVEpGFknPjEN

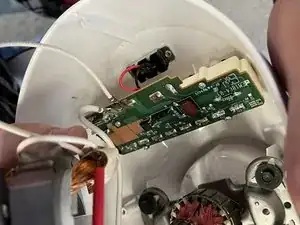

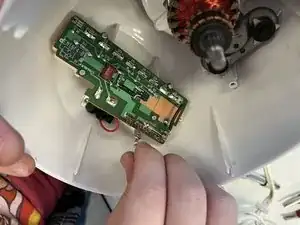

    • Disconnect the 2 white wires that connect the motor to the motherboard

    • These 2 wires have silver tips

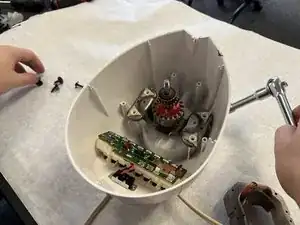

  9. XeMH4COyJB2qMjOL
    XeMH4COyJB2qMjOL
    6uVMLPxRxxlsydpq
    K1rZToYkWR6wTCKc

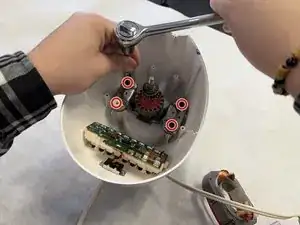

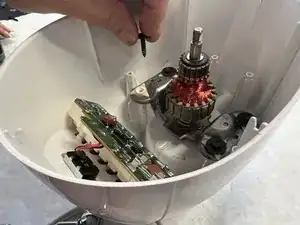

    • Remove the 4 bolts connecting the motor to the blender wall using a socket wrench

  10. pw6oHXPP3y6KMUW1

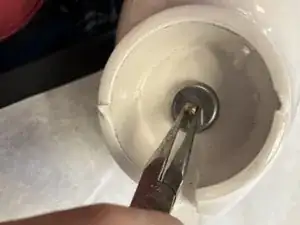

    • Flip the blender back over to the original position and remove the metal disk located at the top of the blender using pliers

  11. lotX1Ctn1ZdKWj1S
    lotX1Ctn1ZdKWj1S
    JnxFYE6JW3yGTRfW

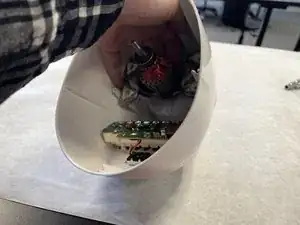

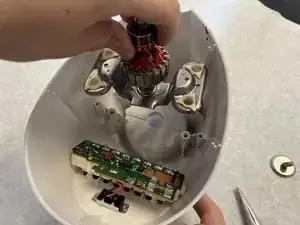

    • Fully remove the motor from the blender

Abschluss

To reassemble your device, follow these instructions in reverse order.
