P-Tex Repair

Schwierigkeitsgrad

Difficult

Schritte

10

Zeitaufwand

45 Minuten

Einleitung

Running over rocks or hard pieces of debris can cause deep or wide scratches that create unwanted friction between the board and the snow. Gouges that are too large to be filled in with a normal wax job will need to be patched with a plastic filler known as P-Tex.

If the gouge is deep enough that the core material is exposed, you should bring these repairs to a snowboard shop.

  1. NmIRuxeMH3ATFdfl
    NmIRuxeMH3ATFdfl
    TqKEbXDHTKpa65Sc
    Qe4OfUF1M6xQFBMj

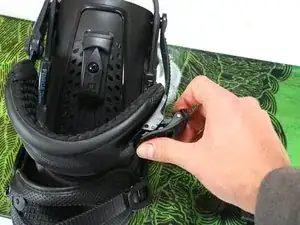

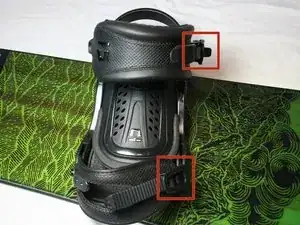

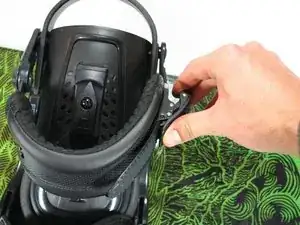

    • Release the binding straps by lifting up on the buckle and pulling towards the direction of the end of the ladder.

    • Not all binding straps will release the same way. If you are having trouble releasing your binding straps, please refer to your owner's manual.

  2. NpCPXWGhhOPoK55N
    NpCPXWGhhOPoK55N
    tuUYVuR4RtvDDehl

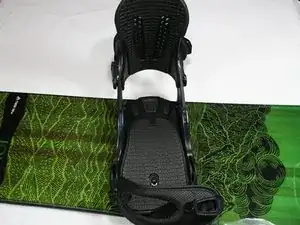

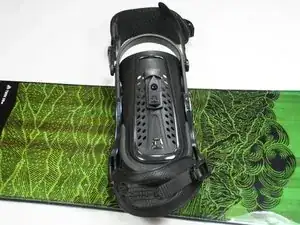

    • Move the straps and the highback plate out of the way in order to have clear access to the foot pad screw.

    • The highback plate is the vertical support plate located on the heel side of the binding.

  3. qsKBeQKkCeR26Nrl
    qsKBeQKkCeR26Nrl
    oE3tpWRreDtKqGXx

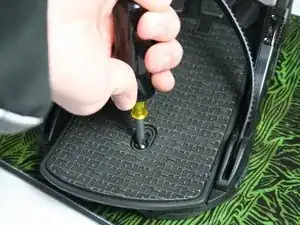

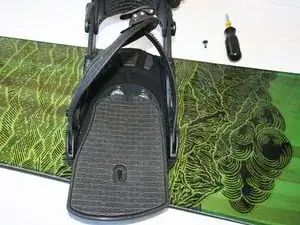

    • Use a #2 Phillips screwdriver to remove the panhead, 10mm wide, M4 x 12mm screw located in the middle of the foot pad.

  4. FJiaxBRDI61eTVrr
    FJiaxBRDI61eTVrr
    cuYFNqETIlZGPWBv
    kHMP3SgndZOxf62d

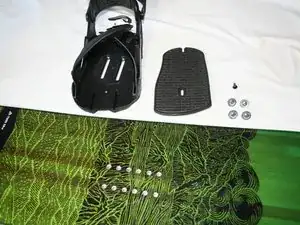

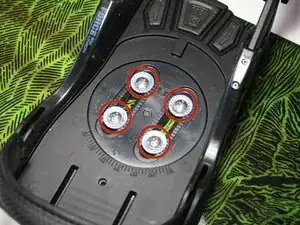

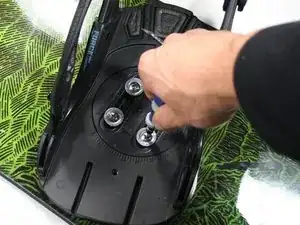

    • Use a #2 Phillips screwdriver to remove the four ovalhead M6 x 12mm screws that attach the base plate of the binding to the board.

    • Lift or slide the binding off the board and set the screws aside.

    Hello!

    Do you hace any suggestions on fixing the baseplate if it is broken? It has structural damage: the aluminum framing has splintered. Is there a way to fix it or is my only option to just buy new bindings? :(

    Thanks!

    Jeni Chan -

  5. 25aTL3RLolLRQykV
    25aTL3RLolLRQykV
    yuuEXKBnO4MHLylB
    2A2cKNmbBEbxUSKw

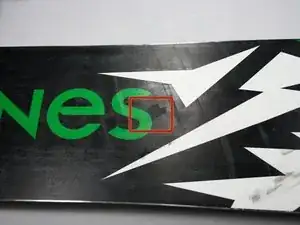

    • Turn the snowboard over so the bottom of the board is facing up.

    • Set the snowboard down on a stable work surface so that it does not rock or move.

    • We recommend using a table that is small enough to fit between the curves on either side of the board, or placing blocks of wood to raise the board from the table.

    • Assess the damage. If there are loose strands of material around the hole, slice them off carefully with a razor blade.

    • Remove any extra wax with a metal scraper.

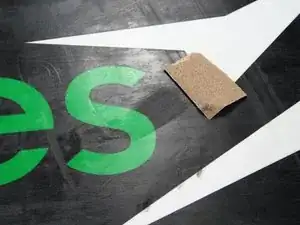

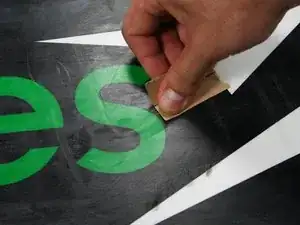

    • Use 150 grit sandpaper to roughen up the inside of the gouge.

  6. hOykYiWKB3TTIG4w
    hOykYiWKB3TTIG4w
    5sEe3CookIhBVhUF

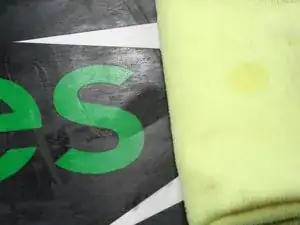

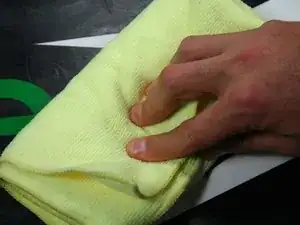

    • Clean the gouge with a few drops of citrus based cleaner such as Orange-Sol (rubbing alcohol will also work), and a small wire brush to get rid of any dirt or rocks. Let the cleaner dry completely—about 20 minutes to an hour.

  7. OW1akMX2YKOWPYHL
    OW1akMX2YKOWPYHL
    t6Uth5dQRqxIO5kr

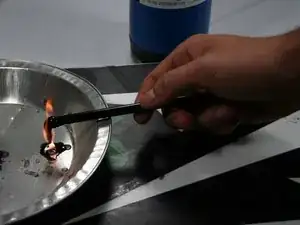

    • Using a propane torch or a butane lighter, heat up one tip of the P-Tex candle over a metal pan.

    • Use caution not to burn yourself - the flame is extremely hot.

    • Wait until the candle is flaming, which may take a couple of seconds.

    • Black carbon flakes will appear in the burning tip. DO NOT let them get into your base or the P-Tex will bond poorly.

    • Let the candle drip onto a metal pan and roll the molton tip around until the candle is carbon free.

  8. F6G3FRFEEYkaTK2w
    F6G3FRFEEYkaTK2w
    BIoxWaOKTNShYIYa

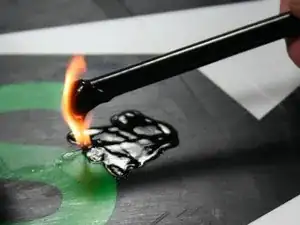

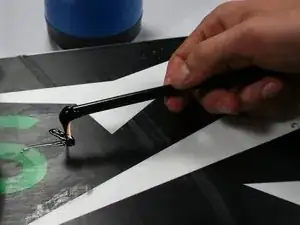

    • It is important that the P-Tex is flowing and not dripping. Dripping will allow more impurities to enter the bonding surface and inhibit adhesion.

    • Move the molten P-Tex candle to the gouge. Hold it close to the surface and let it flow continuously into the gouge surface.

    • The P-Tex will shrink as it cools, so overfill the gouge.

    • Let the P-Tex cool for about 15 minutes.

  9. 2nYX2KFcYjBR36Gv
    2nYX2KFcYjBR36Gv
    EUCocLj3muPM6WMm
    DCI65CVWJddyCeEu

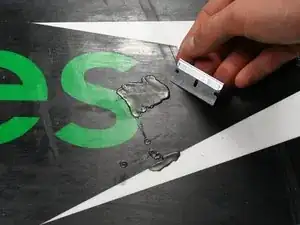

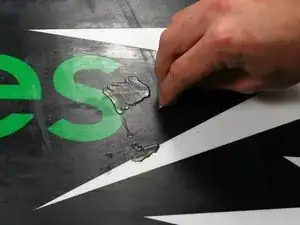

    • Take a sharpened metal scraper or razor blade and hold it at a 45° angle. Pull the razor using short, overlapping strokes (about a half inch at a time) to remove all material that is protruding above the base of the snowboard. Use whatever direction works best.

    • The razor is sharp and can cut you if you are not careful.

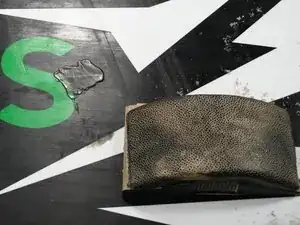

    • You can also wrap sandpaper around a block and rub the area to flatten it completely.

  10. xUe63MQqrmlyNJoC

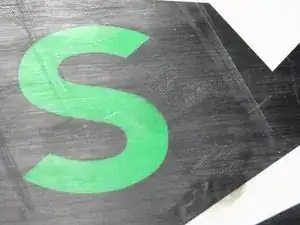

    • When the P-Tex is smooth and flush with the base, your repair is finished. Take a couple of seconds to admire your work.

    • Wax your board before use.
