PDP Afterglow Fener Battery Replacement

Geschrieben von: Murat Terzi
  • Kommentare: 2
PDP Afterglow Fener Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

Keine Schätzung

Einleitung

First we are going to take apart the headset to get inside to where the battery is. Then we are going to remove our old battery and put in our new one.

  1. 64TCJ2Nj5DN3OVfg
    64TCJ2Nj5DN3OVfg
    tUJIyVo4xoGItmxd

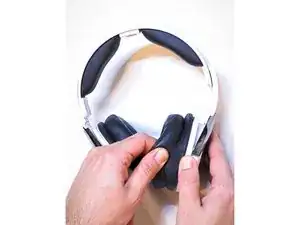

    • Gently pull off your left and right ear pad. For further instructions on how to carefully do this please go to this guide.

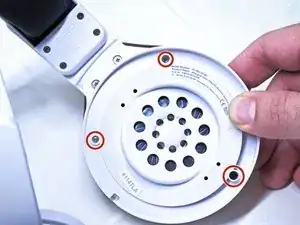

    • For each of the red circled screws, take your J000 screwdriver and unscrew the screws.

    Purchased the battery…plug doesn't fit and battery is too big to fit in the headset

    josey thompson -

  2. VbHchUQY4GbDXbPR
    VbHchUQY4GbDXbPR
    Nl2FUGcxy1h2WPL6

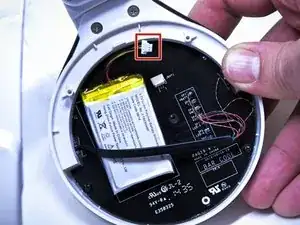

    • This shows what your device looks like on the inside behind the part that you just removed from the headset.

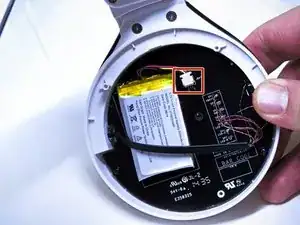

    • In the red square is the connection between the battery and the headset.

    • Gently pull the wires that are connected to the white part in the red square.

    • Now that your battery is not connected to anything you can take it out of the headset.

Abschluss

To reassemble your device, follow these instructions in reverse order.
