PDP Afterglow Fener Speaker Replacement

Geschrieben von: Thomas Williams
  • Kommentare: 0
PDP Afterglow Fener Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

2

Zeitaufwand

Keine Schätzung

Einleitung

First we are going to take apart the headset to be able to access the speaker. Then we are going to unsolder the wires, take out the broken speaker, put in the new speaker and then solder the wires to the new speaker. WARNING soldering skills needed.

  1. RmLWvXdfUrmvM3ZP
    RmLWvXdfUrmvM3ZP
    FF6m5FlssZZRLGwj
    YVjPSFwlsvPJErHH

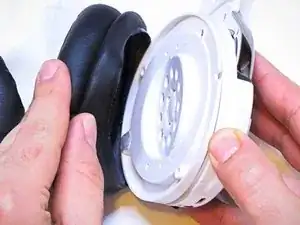

    • Gently pull off your left and right ear pad. For further instructions on how to carefully do this please go to this guide here.

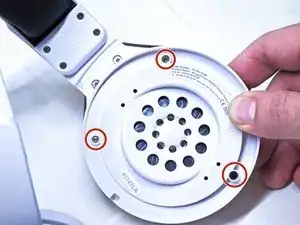

    • For each of the red circled screws, take your J000 screwdriver and unscrew the screws.

    • This is a picture of what your headset looks like now that you have done the first two steps.

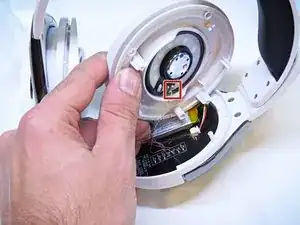

    • Remove the wire connected in the red box by gently pulling it off.

  2. YnNvxmFnepUJPk6e
    YnNvxmFnepUJPk6e
    pG2ZZyLDb1KQbtTO
    T2u4cD3l2vvRpegS

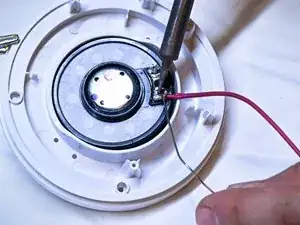

    • Take your soldering iron and unsolder the wire from the speaker.

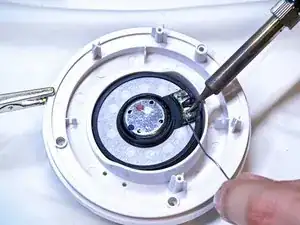

    • The red square is the left tip and the orange square is the right tip.

    • Before wiring your new speaker in, clean the left and right tips with your soldering iron.

Abschluss

To reassemble your device, follow these instructions in reverse order.
