PS Vita Slim Back Camera Replacement

Geschrieben von: Daniel Woodard
  • Kommentare: 2
PS Vita Slim Back Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

Note::: taking apart your device may void the warranty on the device, please proceed with caution and consider having it sent in first if possible to be worked on by the company. This guide will help you replace the back camera of the PSVita Slim in case anything has gone wrong with the device. This guide should be simple and easy to follow. As long as you take your time and you are careful you should be able to complete the replacement process with ease.

  1. MWUymU6oT1rGeD6u

    • Taking apart your device may void the warranty on the device, please proceed with caution and consider having it sent in first if possible to be worked on by the company.

    • Please make sure the system is completely powered off and all SD storage cards are removed before starting the removal process

    • All 6.35mm screws were removed using a J00 bit from the iFixit pro toolkit.

    • There are four screws on the back of the device, remove them as shown.

    I actually broke a 32GB storage card because I didn’t remove it first before I open the chasis. Beware of this!!! REMOVE YOUR CARD FIRST!!!

    Daniel Wang -

  2. dNixpdkvqXrEXvRX
    dNixpdkvqXrEXvRX
    6FOyLDiaHJn3JbMJ

    • There are two screws on the bottom, near the charging port, remove them using the J00 screwdriver on the 6.35mm screws from the iFixit pro toolkit.

    • Finally, remove the top screw under the dust cover using the J00 screwdriver on the 6.35mm screws from the iFixit pro toolkit.

  3. oB5eopNayEQgQNdm
    oB5eopNayEQgQNdm
    AFU4gg4k5bwrPruG
    JjhdMGePJxTZe1sZ

    • The next step will require the opening tool.

    • Please carefully separate the back from the front completely. You will need to disconnect the small ribbon cable on the inside before completely removing the back. Otherwise you may end up hurting the ribbons on the inside.

    • While separating the back, carefully pry all the way around the back. You will hear popping noises while going around and this is a good sign.

    • Upon removing the back panel you will need to slowly and carefully remove the ribbons connecting the hardware to access the needed parts to be repaired.

  4. nQrlvZtdJYWOSKtU

    • Once the ribbons have been removed, then the back is fully removed and you can access the hardware within.

    Don’t forget to remove the battery at this point. The little corners of the connector that poke out a bit are there for you to pry the connector up. Be careful pulling the battery connector out by the wire, you could damage the wire where it is attached to the connector.

    Landon Burnette -

  5. S2sqeDPvNGgXaAfd
    S2sqeDPvNGgXaAfd
    cfYfnrQacjncJPfP
    m3ooFMuOgxKp1c4O

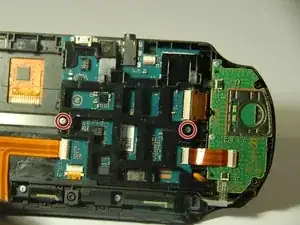

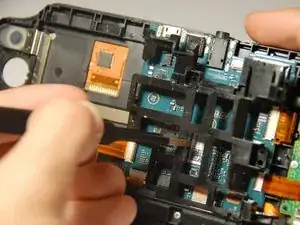

    • The back camera is fastened to the motherboard via a ribbon cable .

    • So first we must remove the casing, remove the two 6.35 mm screws using a J00 screwdriver.

    • After the screws have been removed, carefully remove the black casing.

  6. IeCPZXCCKyXbJtKX
    IeCPZXCCKyXbJtKX
    ZwXOMcRyNESYaHEF
    SCQQpLWqrSXqQH56

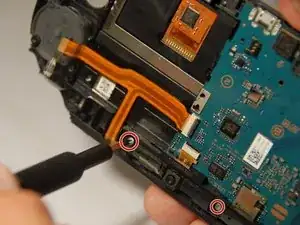

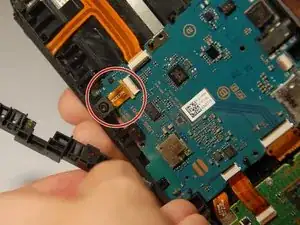

    • With the black casing removed, next we need to remove the top camera frame casing.

    • You will need to remove the two 6.35 mm using a J00 screwdriver.

    • After the screws have been removed you can then carefully remove the camera frame casing. You can also now see the camera itself.

    • You can now remove the camera, but you must be careful to not damage it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
