PS Vita Slim Joystick Replacement

All 6.35mm screws were removed using a J00 bit from the iFixit pro toolkit.

There are four screws on the back of the device, remove them as shown.

There are two screws on the bottom, near the charging port, remove them using the J00 screwdriver on the 6.35mm screws from the iFixit pro toolkit.

Finally, remove the top screw under the dust cover using the J00 screwdriver on the 6.35mm screws from the iFixit pro toolkit.

Upon removing the back panel you will need to slowly and carefully remove the ribbons connecting the hardware to access the needed parts to be repaired.

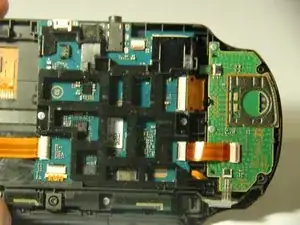

Once the ribbons have been removed, then the back is fully removed and you can access the hardware within.

There are 3 ribbons holding the section together. Remove them carefully.

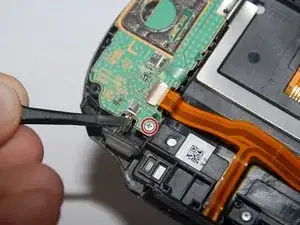

Next unscrew the two screws holding down the casing. They will both still be 6.35 mm screws and will be able to be taken out by a J00 bit from the iFixit pro toolkit.

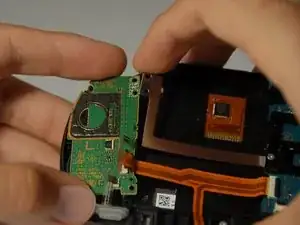

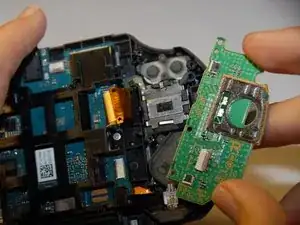

Now carefully left the metal piece holding down the green casing, it will be the last resistance. Lift out the green casing now.

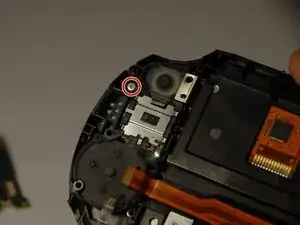

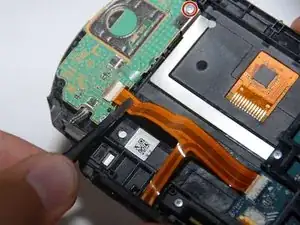

Once the casing has been removed there will be one more screw to be removed. It will be a 6.35 mm screws that requires a J00 screwdriver from the iFixit pro toolkit.

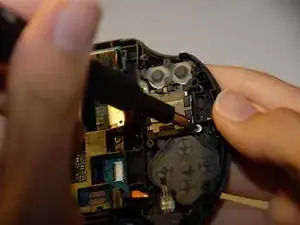

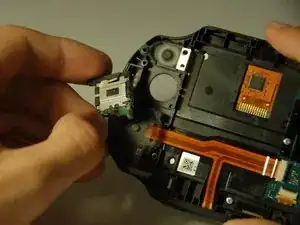

Now simply and carefully take out the joystick out.

With the joystick taken out you can now do what is needed on the left joystick, or even replace it.

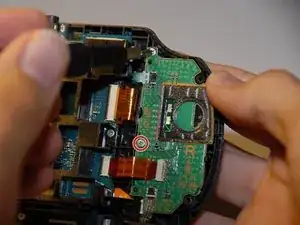

Proceed to remove the two screws holding the casing down. They will be 6.35 mm screws and can be removed using a J00 bit.

Once the casing is off, there will only be one more screw to take off. It will also be a 6.35 mm screw that uses the J00 bit from the iFixit pro toolkit.

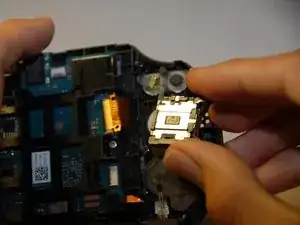

Now simply remove the joystick from the device .

Once the joystick is removed you can do what is needed to the right joystick part, or even replace it if needed.
