PSP 1000 UMD Door Replacement

Geschrieben von: Henry Lee
  • Kommentare: 11
PSP 1000 UMD Door Replacement

Schwierigkeitsgrad

Moderate

Schritte

18

Zeitaufwand

15 - 20 Minuten

Einleitung

A common issue for the PSP is the UMD door becoming shaky or loose. This guide will show you how to maintain or repair the UMD door.

  1. QacnKmgPd5vO4EVM

    • Turn the PSP over so its back is facing you.

  2. KfhYCVXbuwocyXOJ
    KfhYCVXbuwocyXOJ
    ET6LQanHrAYARDNK

    • Locate the battery casing button on the rear-left side of the PSP.

    • Press down the button and remove the battery cover.

  3. ISXv3lrW12xLWbnR
    ISXv3lrW12xLWbnR
    2m4TOHnIVUoYXWUA

    • Using your finger, remove the battery upwards from the system as shown.

    The use of the opening tool is completely unnecessary. There is a finger actuated opening latch button that says “PUSH” on it. Simply press down with your thumb then slide your thumb down and away, dragining the battery door with it. It will then come off. Assuming the system still has its original plastics, they may have become brittle enough that the opening tool could damage the release button or the plastic cover.

    Franklin Allen -

  4. ckGKHpFUTpAy5N3R
    ckGKHpFUTpAy5N3R
    vJp1HKCLNP1L5iB6

    • Remove the four screws shown with a Phillips #00 screwdriver.

    • You will have to peel back the guarantee sticker to access the screw on the lower left.

    Much luck to you if you have a tiny, metal screwdriver like I did, the screws might be stuck in there and may require some force.

    Squib -

    you need to peel back the warranty sticker in order to access both the lower left and lower left screws

    Frederick zzstu Geib -

    This is a bit misleading, you should only remove the two black screws in the battery compartment. The silver ones can stay.

    Damian Cartwright -

    The two left hand screws won’t come out of mine

    XULF -

    iFixit screwdriver bits aren't thin enough to reach the two screws on the right near the memory stick slot.

    Fliggle_Slaps -

    Can't edit previous comment so here's a new one:

    Standard or older iFixit screwdriver bits aren't thin enough to reach the two screws on the right near the memory stick slot. You'll need precision bits that have longer tips to reach these deep screws.

    Fliggle_Slaps -

  5. aGllC1mxt3FxwjJx

    • Remove the screw from the bottom side of the PSP. Keep it separated from the rest of the screws.

    • Remove screws from back righthand side within the holes.

  6. Ii3a5ygvVCa2DQTW
    Ii3a5ygvVCa2DQTW
    QOKFQYHjjpjkCpkW

    • Gently separate the outer plastic casing from the rest of the system as shown.

  7. mRetS1vLqaIMHxsm

    • The Button Board, at the base of the LCD Screen, is held by two clips.

    • Pry these clips over the nubs using a PSP opening tool. This will release the clips.

    • The Button Board is still attatched to the PSP by a ribbon cable!

  8. XAPlWSPYTBnk4kHW
    XAPlWSPYTBnk4kHW
    y2ZMPu6hFaIMHeEZ
    CM3B1OCMvLaoaYgU

    • The Button Board Ribbon Cable is held down with a latch. Lift the latch open, away from the ribbon cable.

    • Pull the cable away from the latch.

  9. D2bNuCiDSWWwWXII
    D2bNuCiDSWWwWXII
    PWVvGylIhKJX1y1B

    • The LCD Screen is held by the LCD Frame with similar clips. Slide a thin tool between the clip and the screen and gently pry them apart while beginning to lift the screen.

  10. YPeEx2CAOyTrMhpe

    • The LCD screen is still attached with ribbon cables. Gently lift up the LCD screen so you do not break them.

  11. MfU6sZYZNswQWfrR
    MfU6sZYZNswQWfrR
    haRHpeyReVrZbE3Y
    OVxu3pWnw5aI5CSv

    • The thin Ribbon Cable opens from the opposite side in which the Ribbon Cable enters. Open up the latch towards the Ribbon Cable. The latch will pull up and release the ribbon cable. Put your tool behind the black part, then pry up the black piece of plastic.

    • The wide Ribbon Cable opens from the same side in which the Ribbon Cable attatches, and opens away from the cable.

    • Both of these latches are the black pieces.

    • Gently pull the ribbon cables away from the latches. The LCD screen can now be removed.

    • When reassembling - be careful which way you push the latches. The small one is very easy to break.

  12. AdqNb3eUYAR1eA4X

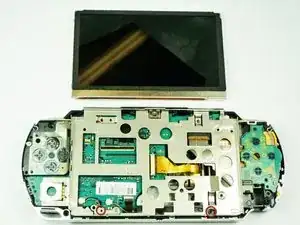

    • Now that the LCD is removed, unscrew the two screws in red.

  13. 52ojuexPEntGPUHb

    • First Start by turning the PSP over, UMD Drive up.

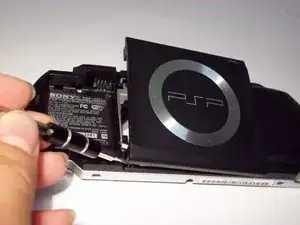

    • Then using a small flat-head, Pry the lower left corner up.

    • The right side will come out after the left latch is free. Some jiggle work might be needed, no excessive force.

    • FIRST, with the psp facing up, unscrew the black screw on the bottom right hand of the umd door adjacent to the right side speaker for easier prying of the umd door in the next step.

  15. XffAONgZAJUIMo3y
    XffAONgZAJUIMo3y
    J3BBMhBJMYTOEe6J

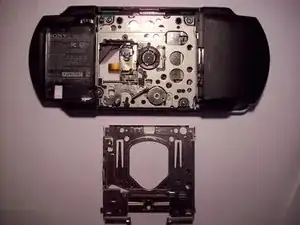

    • Hold the tray on the left side and slide it to the right.

    • Remove the tray.

  16. W6OSWoGm3oArotBp
    W6OSWoGm3oArotBp
    RukOAFXRARXjwGJ6
    k4Z3fvRnFyEpiu5U

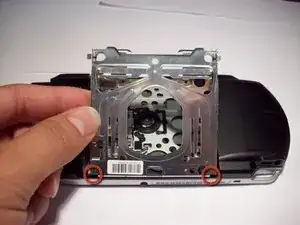

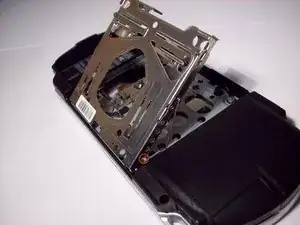

    • Because the problem was that the door was loose, clean all parts of dirt or debris.

    • Align the tray to the 2 hinges at the bottom and slide the tray to the left, back into place. The latch should still be above the UMD frame.

    • Apply light pressure to the left side while lowering the tray to its original position.

  17. kLHDLR6LIBA4NGcF
    kLHDLR6LIBA4NGcF
    bIVRRVduvZUWwDaV

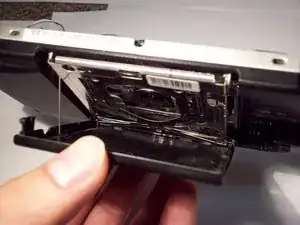

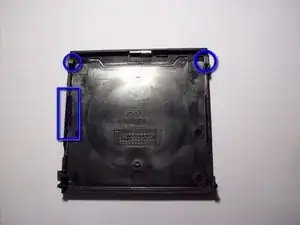

    • This next part is a bit tricky. Notice the slot for the spring arm and the slot for the UMD tray in the the corners.

    • Turn the PSP upside-down, so that the bottom is now facing up.

    • First slide the UMD tray into the slots on the UMD cover. Once these are in, align the spring into its slot.

  18. DhWYdSTdRBRaBSGM
    DhWYdSTdRBRaBSGM
    3Vyxng1AKXmuxeas

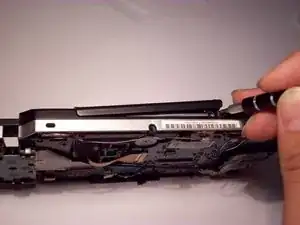

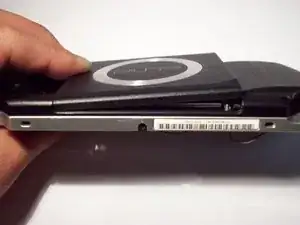

    • Carefully close the PSP door, keeping the UMD tray and spring in their slots.

    • Insert the left side of the door first, then the right hinge.

    • This can be done using either your hands or a flat-head.

    I try to do reshell, and one of the spring on the umd door i forcely take it out and I notice that I can shape it back as original shape.

    Midnight Nexus -

Abschluss

To reassemble your device, follow these instructions in reverse order.
