PSP 2000 Logic Board Replacement

Geschrieben von: espinks
  • Kommentare: 7
PSP 2000 Logic Board Replacement

Schwierigkeitsgrad

Difficult

Schritte

13

Zeitaufwand

15 - 30 Minuten

Einleitung

Is your logic board acting illogical? Fix it!

  1. XO6sdwqRCRycqiIA
    XO6sdwqRCRycqiIA
    4mRegB1VDoLKyWtR
    xTyAXH3XLXD1Om1M

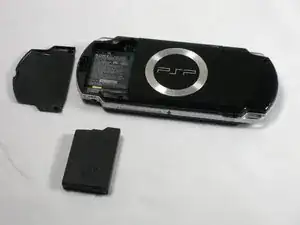

    • Place PSP face down, so that the UMD Drive is facing upwards.

    • Locate the battery door and open.

    • Remove the battery from inside.

  2. Dikdo3qUVr2t1ZtY

    • This step requires the removal of the warranty sticker. Removing the sticker will void the warranty. According to the FTC removing this will not void your warranty.

    • Locate the sticker in the battery compartment labeled: "En: Warranty Void if Seal Damaged."

    • Remove the sticker using the PSP Opening Tools.

    • Under the sticker is a 5mm Phillips screw needed in the next step.

  3. RtxXG3POPjorw1TF
    RtxXG3POPjorw1TF
    tnMbdLQBL4qTOENO

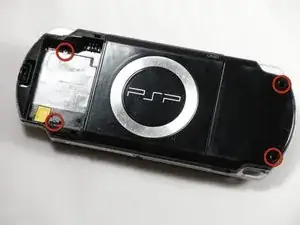

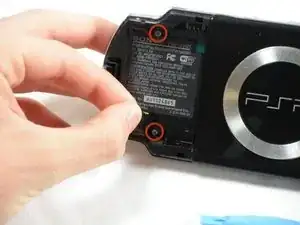

    • Remove four 5 mm Phillips from the case.

    • If the screws stick in the case, you can use a magnetized screwdriver to draw them out.

  4. h1nV2UQrXMyUapF1
    h1nV2UQrXMyUapF1
    qtbUK1Df5oACJZna

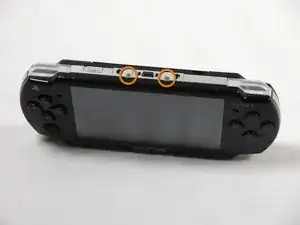

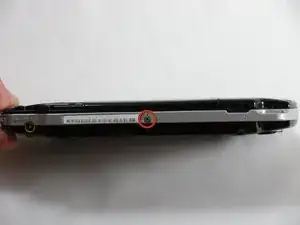

    • Remove the following screws from around the bezel:

    • Two 4 mm Phillips

    • One 5 mm Phillips

    • The two shorter 4 mm screws are on the top of the PSP; the longer 5 mm screw is on the bottom.

    Beware that some models of PSP 2000 (mine is a limited edition Crisis Core FF7 silver version, so I suppose it is related to it being a japanese PSP) have 2 minute TORX screws (T1? T2?) instead of the 2x 4mm Phillips pointed in orange around the USB port.

    Mighty Sashiman -

  5. ahAccPrwEVo2ZT1M
    ahAccPrwEVo2ZT1M
    NOktUSHuGnXItXUT

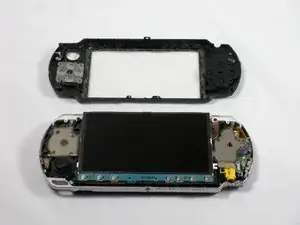

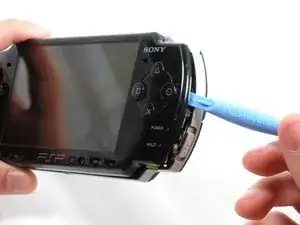

    • Gently pry the front bezel away from the casing using a PSP opening tool.

    • Start on the right hand side of the PSP bezel, and carefully work the tool around the side.

    • If you want to clean the control buttons or D-pad, you can easily pop them out once the faceplate is off and wipe them clean.

  6. fg3PHuHeHOFiGxEp
    fg3PHuHeHOFiGxEp
    CXeGrqO4NpcsVEUH
    eFKUMBU2fNchJRFr

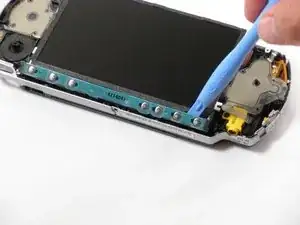

    • Remove the home bar by gently prying on the left and right sides of it with the opening tools. Lift the bar out of the device.

    • A ribbon cable connects the home bar to the logic board. Be careful not to damage the cable when removing the bar.

  7. qDeeW61mKA1fBXQs
    qDeeW61mKA1fBXQs
    DLyAgIMf2gQwJg5R
    IfB5EGOmIkujyCbe

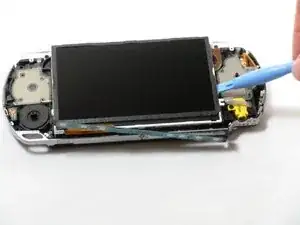

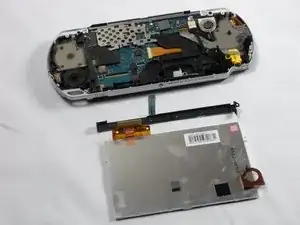

    • With the home bar out of the way, gently pry up the display using the opening tools.

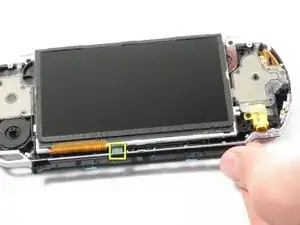

    • There is another ribbon cable attached to the bottom of the LCD. Be careful not to damage either of the connectors when removing.

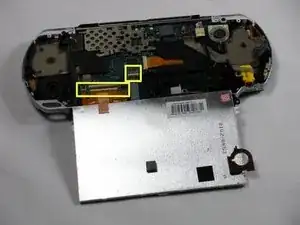

    • Lift the black tabs of the ribbon cable connectors using a opening tool. Pull the ribbons out towards the bottom of the PSP to disconnect.

    • Gently lift out the display.

    There are 2 ribbons connected to the screen. Both of them have to be disconnected in order to remove the screen.

    Ovismue Veholkin -

  8. 61TC321GMUIIVoaw
    61TC321GMUIIVoaw
    APwUHsGVQoUFvEKd
    LFdZ3esCMBMwTUkx

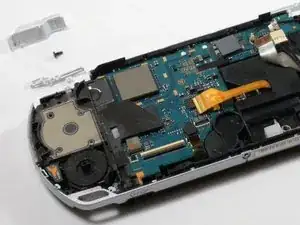

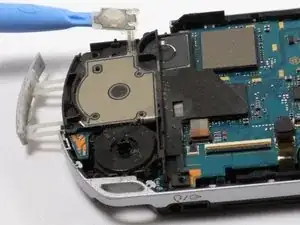

    • Remove two 4.5 mm Phillips screws from the left-hand side of the PSP.

    • Slide off the left trigger along with the plastic bracket underneath.

    • Carefully pry off left trigger button using opening tools.

    • The button is adhered to the body. It can be re-adhered with hot glue after being pried-up, if necessary.

  9. bC3QB5IXbMD3jCU3
    bC3QB5IXbMD3jCU3
    lNPQyaBLmAO1Hy1G

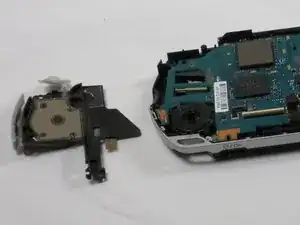

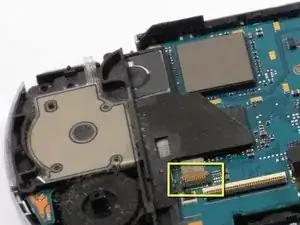

    • Use an opening tool to lift up the brown tab on the connector and remove the cable horizontally.

    • Gently remove the memory card slot by pulling it straight out.

  10. VTKP6FaMDoWSyu3F
    VTKP6FaMDoWSyu3F
    ZiBF6wpCQqEU3IwI

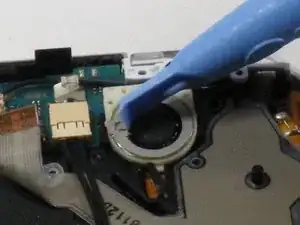

    • Use the opening tools to press the tab on the left-hand side of the speaker to release it.

    • Be careful not to puncture the speaker in the process.

    • Remove the speaker by twisting it counter-clockwise (to the left, like a screw).

  11. fyJ1u4rarPYSPJEG

    • Remove the following four connections:

    • Two ribbon cables -- flip up latch and remove horizontally.

    • One wire clamp -- use an opening tool to pry it up vertically.

    • One wiring harness -- use your fingers, a PSP opening tool, or tweezers to disconnect the connector horizontally.

    • The ribbon cable near the wire clamp has a brown tab that should be lifted using an opening tool prior to removal. Be careful to not damage the ribbon or connector.

  12. UuN2CPlks1WxpINk
    UuN2CPlks1WxpINk
    YPVna2JI3ZYyW6Nc

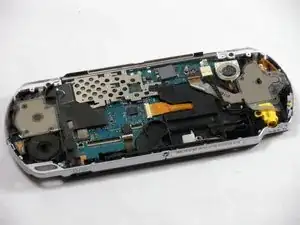

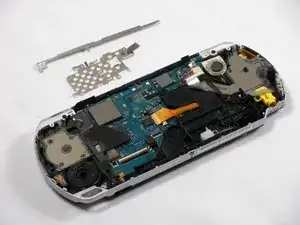

    • Remove metal shields by gently lifting them with an opening tool.

  13. QVJoSjVbCJXAyAZk
    QVJoSjVbCJXAyAZk
    sjJEBAHSeJeMHRpK
    aLRVBfoXDkwh2AbR

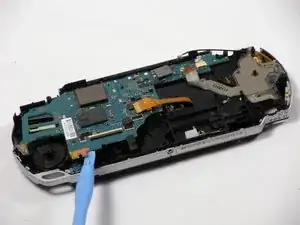

    • Double-check to make sure that all connections to the board are unplugged in order to avoid damage to your PSP.

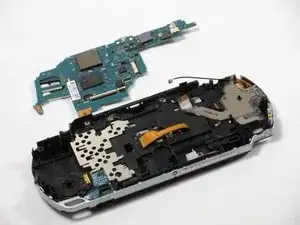

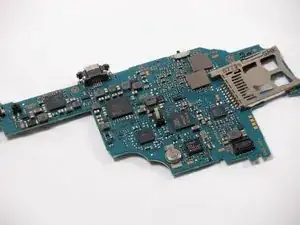

    • Using an opening tool, delicately raise the logic board from its base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
