PSP 300x Motherboard Replacement

Geschrieben von: mbnewsom
  • Kommentare: 11
PSP 300x Motherboard Replacement

Schwierigkeitsgrad

Easy

Schritte

36

Zeitaufwand

15 - 20 Minuten

Einleitung

Below you will find descriptive instructions on the proper way to remove the PSP 300x Motherboard Replacement.

  1. TrUmfMIuTdKnA1Cn
    TrUmfMIuTdKnA1Cn
    yJW4ra1RPAwB3mYP
    EGjqqfqlRcpevFHa

    • Place the PSP face down and locate the battery cover on the left side of the device.

    • Lift and remove the battery cover to reveal the battery.

    • Remove the battery.

  2. WwNswCUCuutjhWcd

    • Peel back the warranty sticker that is behind the battery with a spudger or your fingernail.

    This will end your warranty, so do it on your own risk!

    Paweł Kasztura -

    Even though warranties are long expired on these things.

    Vincent C. -

    “IF” your on this Site “I FIX IT(tm) to lean how to repair something on your own… you “Should NOT” be too concerned about warranty any longer, as if you were .. for your iPhone or Pad etc… you would have taken it to the supplier.. No??

    Barry Goian -

  3. 2jvKwbGyeHYdH5m1
    2jvKwbGyeHYdH5m1
    FJxVn2bSqXKi5LsX

    • Unscrew all four screws from the back of the PSP with the Phillips #00 Screwdriver.

    • Two are located behind the battery's warranty sticker.

    • Two are located on the right side of the PSP.

  4. FwFsxefOstRBZYIX

    • Next, unscrew the two screws located at the top of the PSP.

  5. nfaMmtCKKxRYKXNX

    • Then, remove the single screw from the bottom edge of the PSP (which is positioned next to the barcode).

    “DON’T” forget to put your screws separately on a mag mat (Or sticky tape) so to 1) Not loose them & 2) Remember where they go as they may be of differing sizes. (Refer time the pictures also helps, but you can take a pic on your camera as you go to remind you also.

    Barry Goian -

  6. GTBGyfJfojtdYbvv
    GTBGyfJfojtdYbvv
    kKwEelLMbuDXtkYh

    • Slide the spudger in between the outer casing of the PSP, beginning at the "R" shoulder button, and gently pry off the casing.


    • Remove the front casing completely.

    J’ai récemment fait cette réparation et le boîtier avant ne voulait pas venir à condition d’enlever les deux vis sur le boîtier arrière au niveau du joystick et de la croix directionnelle. Il manque donc selon moi une partie mais je peux me tromper !

    Valentin Boileau -

  7. kPPaDKXEVdHNgprG
    kPPaDKXEVdHNgprG
    AqKsqoNF52X4xGZQ

    • Push the homebar to the right to release the tab located on the right side of the LCD screen.

    • DO NOT completely remove the homebar, as it is still connected by ribbon cables.

    The homebar has a little tab screwed in place under the screw that alsoholds the lanyard trim-piece on. You will need to unscrew that screw first and pry the lanyard piece up, to get the homebar out from under it.

    B McG -

  8. 4WAUklqmaXUvNYCq
    4WAUklqmaXUvNYCq
    ZFVuoZUWml4KWWAw
    UieJHEQIlwqLhKrh

    • Slowly lift the LCD screen off the PSP starting at the top edge corner.

    • Again, the LCD screen is attached by ribbon cables, so do not remove it completely.

    • Orientation of PSP is flipped in photo.

    Attention à cette partie où l’écran est un peu bloqué dans le coin inférieur droit, il faut donner un peu de jeu vers la gauche pour le décaler et le retirer plus facilement.

    Valentin Boileau -

  9. vjBnOvyiI4Dxdfys
    vjBnOvyiI4Dxdfys
    CDNo2xUiuaKMafjq

    • Flip the small brown locks on the four ribbon cable connectors up using a spudger or fingernail.

    • Pull all four ribbon cables out.

    • Now remove the LCD screen and homebar from the PSP.

    For anyone struggling to get the screen’s smaller ribbon cable back in, don’t be too afraid to use tweezers to pull on the little tabs. It has to go in a good half way (of the darker area) in order for you to latch it without it falling back out.

    Tom -

  10. ddDGZPpasOQFHP2s

    • Remove the metal tab that lies above the LCD screen.

    • Upon reassembly, make note that the stamped lettering faces down, and the large tab fits just above the motherboard to the right hand side of the left trigger.

  11. qeUINJnHGNHUKgwc

    • Remove the screw securing 'L' trigger to the PSP.

  12. CQLOKP2o2orLfCia

    • Remove the white plastic piece that holds the 'L' trigger in place.

  13. fjv4oAIlGfx3fMZT

    • Remove the 'L' trigger from the PSP.

  14. CCtrClZg3HquPYTr

    • Remove the screw securing the 'R' trigger.

  15. RX1sLDUChGFj1s4D

    • Remove the white plastic piece that holds the 'R' trigger in place.

  16. UJQKsmmvUpHJV6dR

    • Remove the 'R' trigger from the PSP.

  17. XJfOdmZtCLVA3STI

    • Remove the screw from the bottom left edge of the PSP.

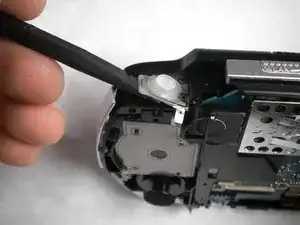

  18. dOsOLHqwPiS3GuWc

    • Being careful not to break the ribbon cable, use the spudger to peel the adhesive button of the the 'L' trigger off the PSP.

    Being careful not to break the ribbon cable, use the spudger to peel the adhesive button of the 'L' trigger off the PSP.

    buzinon -

  19. O6kieFgm3Z6ITjOh
    O6kieFgm3Z6ITjOh
    UVRbaNeZHeTto2IF

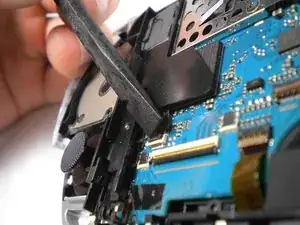

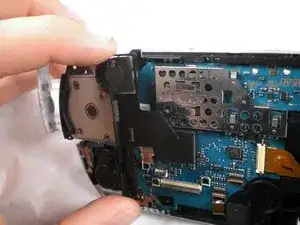

    • Using a fingernail or spudger, flip up the retaining bracket on the d-pad and 'L' trigger ribbon cable.

    • Lift the black plastic bracket along with the d-pad contact pad, disconnecting the ribbon cable as you lift.

    Be careful - the memory card should be taken out by now. If not, the d-pad assembly will not come out. You can safely remove it if you forgot though.

    Kris -

  20. DPZPmFJ1EOUtVIbX

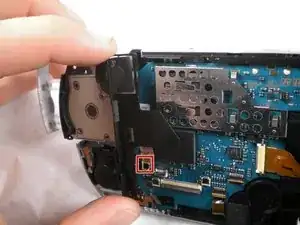

    • Remove the cable from the connector and remove the entire black piece from the PSP.

  21. TrdEKgA2sH1HCUbh

    • Remove the screw holding the analog stick in place.

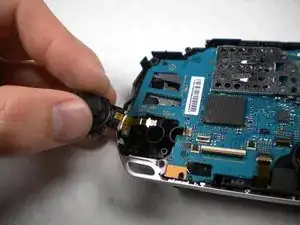

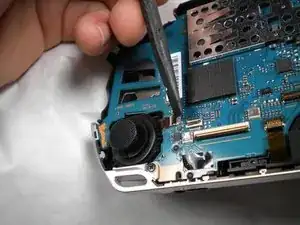

  22. StVF1FvCh4PUaJhr
    StVF1FvCh4PUaJhr
    SWRV6FwiXbFAAIDr

    • Flip up the lock on the analog sticks ribbon cable.

    • Remove the analog stick from the PSP.

  23. 6Jh3ySgdNf5cXjg1

    • After removing the LCD Screen, the Button Pad should be easy to remove.

  24. 2NwOfHOHt21hfJJh

    • Flip up the lock and detach the ribbon cable above the power jack.

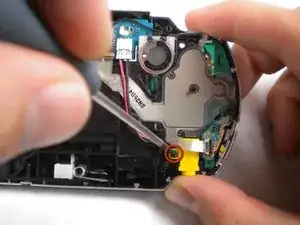

  25. WKeq4Gf4bAsdjTTN

    • Remove the screw from the power jack.

  26. WYGBuEvnBvymfAAb

    • Carefully bend back the black tab holding the power jack in place and start pulling the jack up to release it from this clip.

    The plastic tab in this step is very fragile. Use care when bending the plastic tab back.

    Kris -

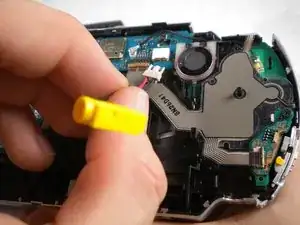

  27. NDtyM43ENjxuqESq

    • Pull the plug connecting the power jack to the motherboard.

    • Remove the power jack.

  28. BP6mKc3MoP5hUp1C
    BP6mKc3MoP5hUp1C
    FOkeuxTQN4CMRqU6

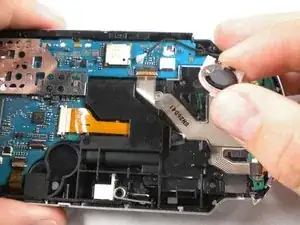

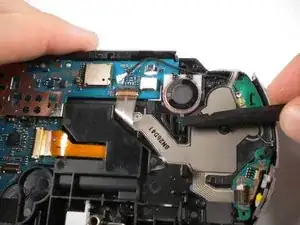

    • Push the black tab at the bottom of the speaker to pop the speaker out of place, and remove the speaker.

    • The speaker is spring loaded, so be sure to keep an eye on it in case it starts doing flips into the air when you push the tab. Be careful not to lose or damage it!

    • Make sure the new/replacement speaker does not spring out during reassembly.

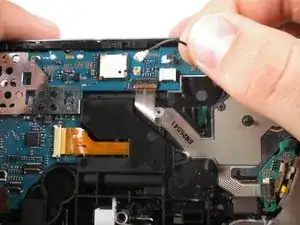

  29. 2h4TLLp2CgJSsnBL

    • Remove the cable carefully by lifting upwards from port attached to the motherboard .

  30. kXko5JAvPIBmkKLh

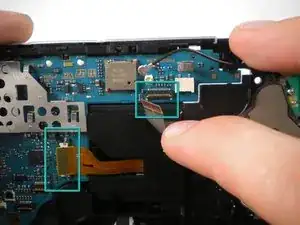

    • Flip up both of the locks and remove both cables as shown

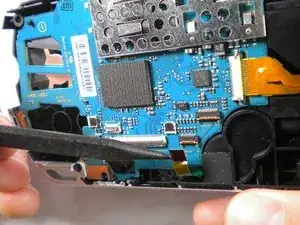

  31. lXqiVVUIHFx2wDFB

    • Flip up the lock and remove the ribbon cable located at the bottom edge of the PSP.

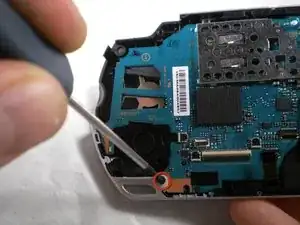

  32. KWXKyI4R6CsKyodR

    • Use a Phillips #00 screwdriver to remove the bottom left screw attached to the PSP

  33. IPprWoOPM2tTA6rH
    IPprWoOPM2tTA6rH
    fcXkIhRoUDnAmOIF
    FaZU35wdAAt6vSHd

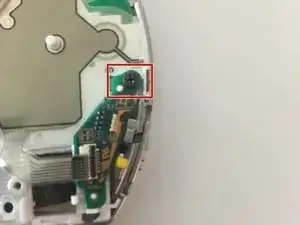

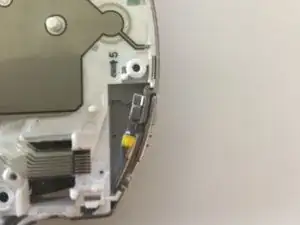

    • Remove the screw located at the top of the power switch panel.

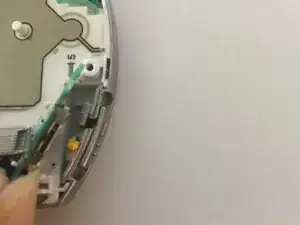

    • Gently lift and remove the panel from the switch side

  34. 2gWNmmsWivpMQKPr

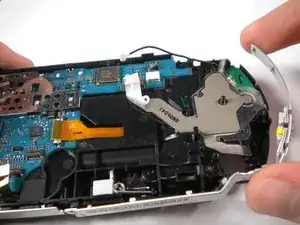

    • Remove the silver rim on the right side of the PSP.

  35. v5VjlPiRhkLjPfOO

    • Remove the silver rim on the left side of the PSP.

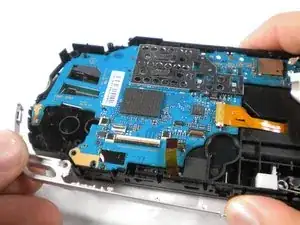

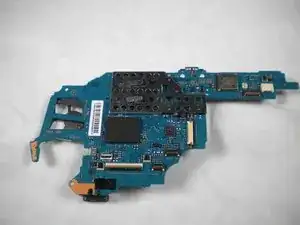

  36. PSVewAcArCwBJ22M
    PSVewAcArCwBJ22M
    QuatAMsFPQJVSEmD

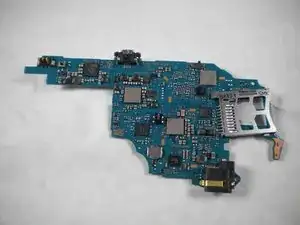

    • Remove the motherboard from the PSP

Abschluss

To reassemble your device, follow these instructions in reverse order.
