PSP E1000 UMD switch Replacement

If you haven't indication for inserted disk the problem probably is in UMD switch.

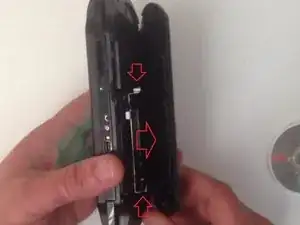

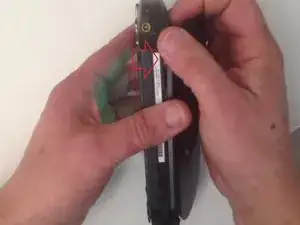

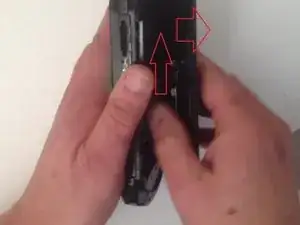

Unhook the door metal plate and disassemble UMD door.

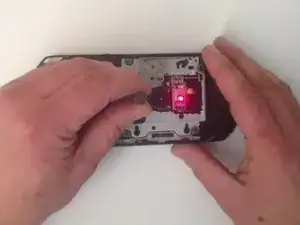

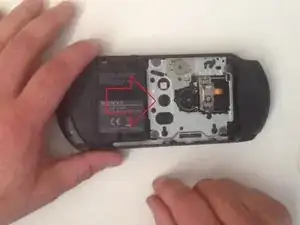

With a screwdriver I short the UMD switch to test the laser.

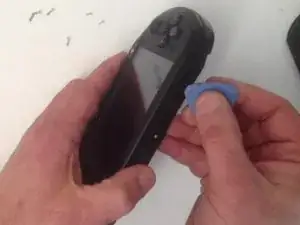

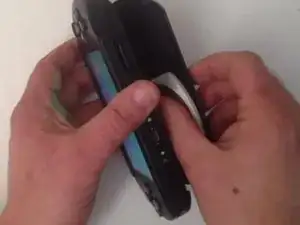

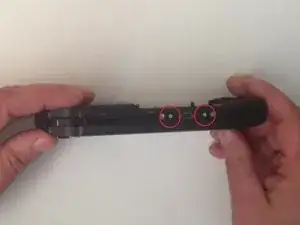

Now let's disassemble it.

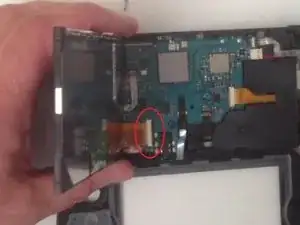

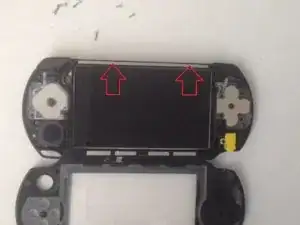

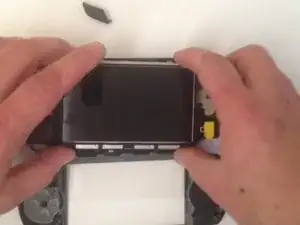

Disconnect and remove the display.

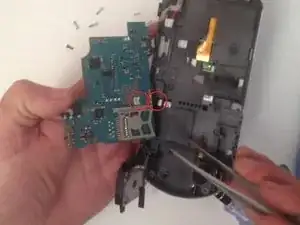

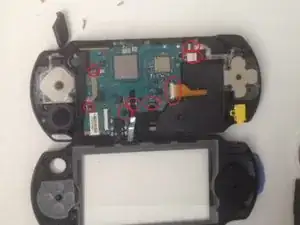

I must disconnect 7x cables and unscrew a screw.

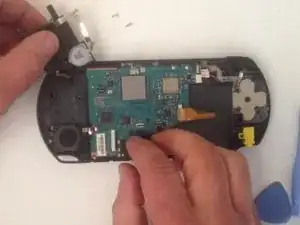

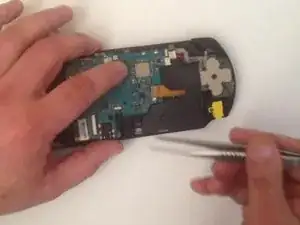

Now I disconnect the battery connector and here is the mainboard.

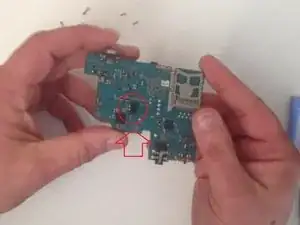

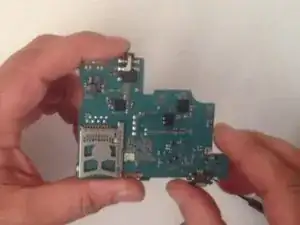

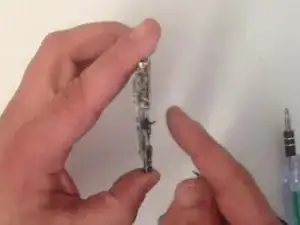

I used soldering station to remove the old one and put the new one (UMD switch).

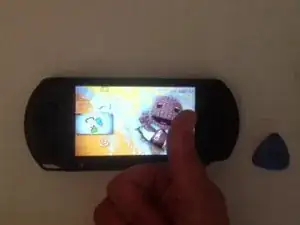

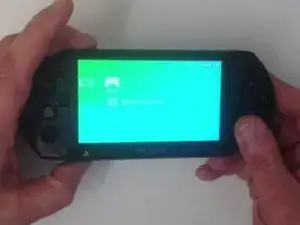

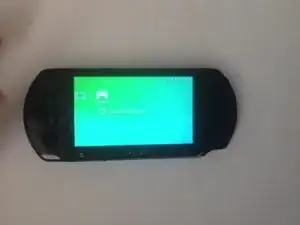

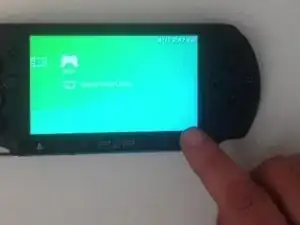

Let's assemble and test it.
