Einleitung
Use this guide to put a fresh analog joystick into the PSP Go!
Werkzeuge
Ersatzteile
-
-
Unscrew the four Phillips screws on the back of the PSP Go.
-
Rotate the PSP so you can see the top of the device.
-

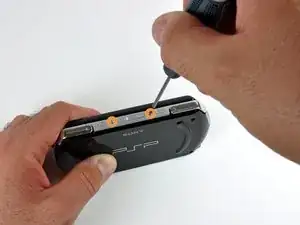

Unscrew the two Phillips screws next to the volume buttons.
-
-
-

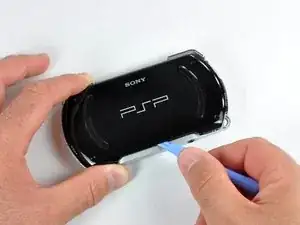

Use a plastic opening tool around the perimeter of the back cover to loosen it on all sides.
-

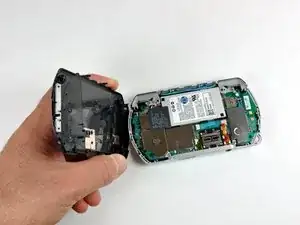

Open the back cover by gently lifting the right side, and rotating it to the left side (as if you were opening a book).
-
-
-
Remove the two Phillips screws holding the bottom plate.
-

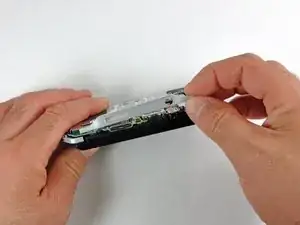

Gently lift the bottom plate away from the device.
-
-
-
Use a #00 Phillips screwdriver to remove both screws holding the analog joystick in place.
-
-
-

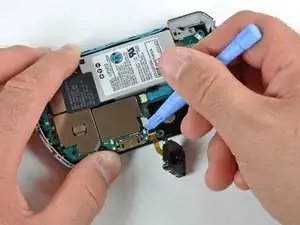

Use a plastic opening tool to gently flip up the analog joystick's cable connector.
-

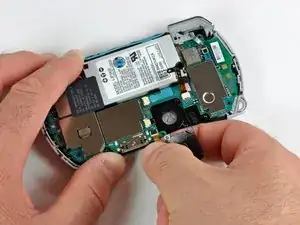

Use your fingers or tweezers to gently pull out the analog joystick cable from its connector.
-
To reassemble your device, follow these instructions in reverse order.
