PSP Go Headphone Jack Replacement

Geschrieben von: Miroslav Djuric
  • Kommentare: 0
PSP Go Headphone Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

Use this guide to replace your PSP Go's headphone jack!

  1. LhA1YVTFVpuSaY5i
    LhA1YVTFVpuSaY5i
    iqxlosSvmM4KTYNl

    • Unscrew the four Phillips screws on the back of the PSP Go.

    • Rotate the PSP so you can see the top of the device.

    • Unscrew the two Phillips screws next to the volume buttons.

  2. nMEVBYIvPaGa4lSm
    nMEVBYIvPaGa4lSm
    g3JkOmU5wiX4ln1G

    • Use a plastic opening tool around the perimeter of the back cover to loosen it on all sides.

    • Open the back cover by gently lifting the right side, and rotating it to the left side (as if you were opening a book).

    • Be careful not to rotate the back cover from the bottom, as you will break the plastic screw holes on top of the device.

  3. ABedZDx5FKLfOJIa

    • Pull the top cover upwards gently from its housing.

  4. rAwimXtEyG2gOjBh
    rAwimXtEyG2gOjBh
    GhWZ2JCkjVofsNyD

    • Remove the two Phillips screws holding the bottom plate.

    • Gently lift the bottom plate away from the device.

  5. aNmck1AbrP2jUfWb

    • Remove the black Phillips screw holding the headphone jack in place.

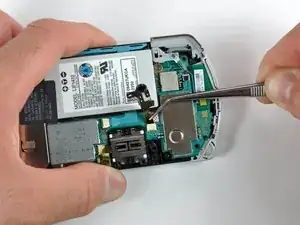

  6. t5M1wVgnUxaYmUFd

    • Use a pair of tweezers and grasp the black plastic portion of the headphone jack cable.

    • Slowly pull out the cable. If it's hard to pull, wiggle it slightly side-to-side while pulling it.

    • Plugging the new headphone jack into place will require some force. Make sure not to break the connector while performing this procedure. Grasp the black plastic portion of the cable and wiggle it into the logic board connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
