PSP Go Trigger buttons Replacement

Geschrieben von: Walter Galan
  • Kommentare: 0
PSP Go Trigger buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

This guide shows you how to remove the PSP Go's trigger buttons.

Note: The procedure is exactly the same for the both left and right trigger buttons.

  1. LhA1YVTFVpuSaY5i
    LhA1YVTFVpuSaY5i
    iqxlosSvmM4KTYNl

    • Unscrew the four Phillips screws on the back of the PSP Go.

    • Rotate the PSP so you can see the top of the device.

    • Unscrew the two Phillips screws next to the volume buttons.

  2. nMEVBYIvPaGa4lSm
    nMEVBYIvPaGa4lSm
    g3JkOmU5wiX4ln1G

    • Use a plastic opening tool around the perimeter of the back cover to loosen it on all sides.

    • Open the back cover by gently lifting the right side, and rotating it to the left side (as if you were opening a book).

    • Be careful not to rotate the back cover from the bottom, as you will break the plastic screw holes on top of the device.

  3. ABedZDx5FKLfOJIa

    • Pull the top cover upwards gently from its housing.

  4. YMaqDnkZWwfSsUvS

    • The top cover will most likely come off during the repair, so might as well take it off now. Pull it upwards gently from its housing.

  5. DCEpeklKyWnMPmra

    • The procedure is exactly the same for the left trigger button.

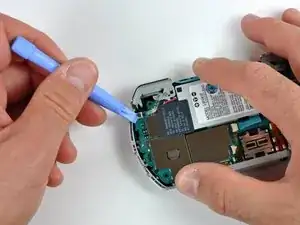

    • Use a plastic opening tool to gently flip up the left trigger connector.

  6. 1fZNBIQdNjVLNQx6
    1fZNBIQdNjVLNQx6
    THMmWtVMmfO1RipI

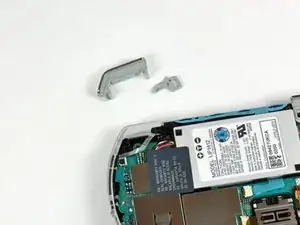

    • Unscrew the lone Phillips screw holding the trigger in place. Remove both trigger and retaining plate from the PSP Go.

    • If necessary, repeat steps 2 and 3 to remove the right trigger button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
