Pac-Man Connect and Play A or B Button Replacement

Geschrieben von: Bobrobot1
  • Kommentare: 0
Pac-Man Connect and Play A or B Button Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

  1. siKgMJIJIs2gsWsU
    siKgMJIJIs2gsWsU
    fx2ySi2OhkJ2AhYI
    4CBQ24cy2TP2fyes

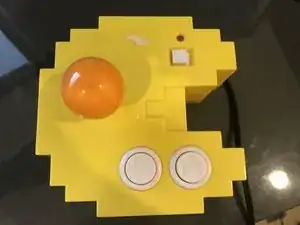

    • Begin by flipping the device over and removing the back cover

    • Ensure the device has no power, and isn't plugged into a television set.

  2. aZtfipYCCyP1yiS4

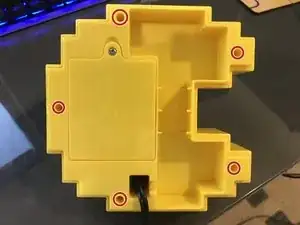

    • Remove the 5 Phillips head screws

  3. rvFoGsCNxldCV3cU
    rvFoGsCNxldCV3cU
    qqgQryBcdOx25jRj

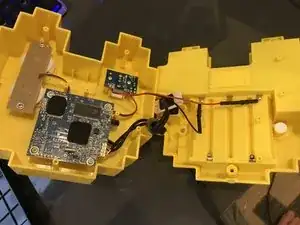

    • You can now open the device.

  4. fFEhlG2cKyy124Kn
    fFEhlG2cKyy124Kn
    eLOVreXYRN51TyiP

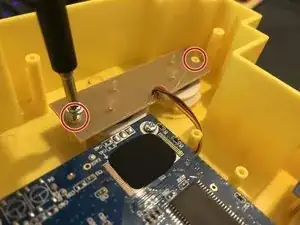

    • Remove these 2 Phillips Head screws

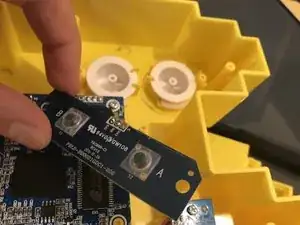

    • Pull back the button board

  5. YglIgNaOpG2llYx1

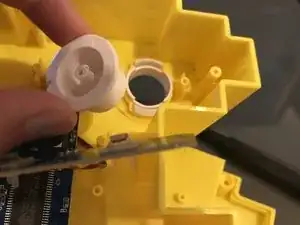

    • You can now remove either (or both) buttons

Abschluss

To reassemble your device, follow these instructions in reverse order.
