Palm Centro Back Housing Replacement

Geschrieben von: Chelsea Barackman
  • Kommentare: 0
Palm Centro Back Housing Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

Follow this guide if you need to replace the back case of your Palm Centro or if you need to access the internals of your device.

  1. yHZSDRcAUriIKSXA
    yHZSDRcAUriIKSXA
    D6yGOOgDk2ioBeAw

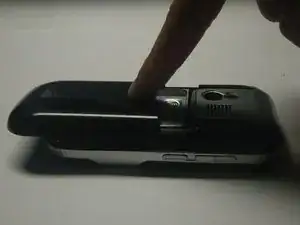

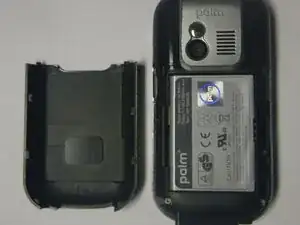

    • Press and slide open the battery cover.

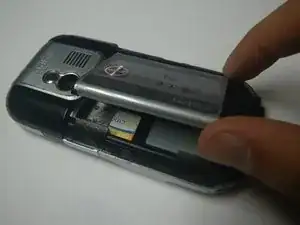

  2. F2chW3VmD5lLQHHc

    • Caution: Turn cell phone off before removing battery!

    • Press battery to the right.

    • Then lift up battery pack to remove.

  3. I36kJJhwGSwC5hcc

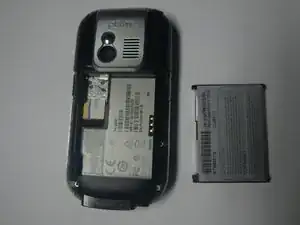

    • Phone with battery removed

  4. KZwsZhQRSjSrsLNQ

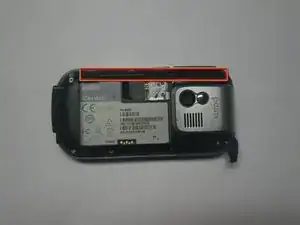

    • Remove the touchpad pen from the top left corner on the back to reveal the last of 6 screws to be removed.

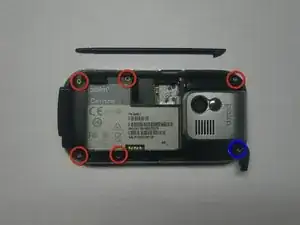

  5. OSnPHCFIPDFKaX3N

    • Lift the rubber cap at the top right to reveal the sixth screw.

    • Caution: There is a small Palm sticker under the rubber cap. Tampering with or removing this sticker will void your warranty!

    • Remove the six screws using the T5 Torx screwdriver.

  6. yfYSQZ4BTqRCvuuC
    yfYSQZ4BTqRCvuuC
    vrMC6OFoLRPZmdlL

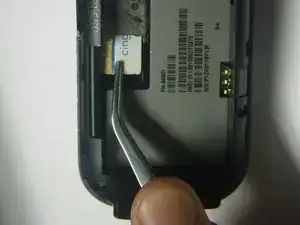

    • Remove the SIM card so housing can be separated.

  7. 5ZeScpalMVMFcgmR
    5ZeScpalMVMFcgmR
    KJiKuDoBZWHWX5cY

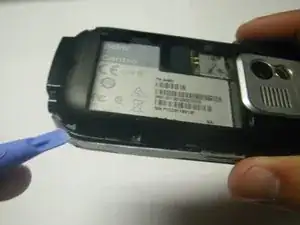

    • Use a plastic pry tool to separate the bottom of the case to remove the small plastic insert.

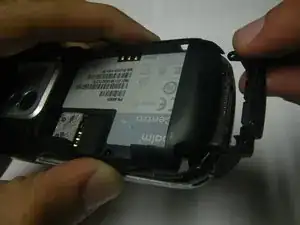

  8. vIPI1TFIoaEBvvXq
    vIPI1TFIoaEBvvXq
    1lwBuZ1MSVqyyQWy

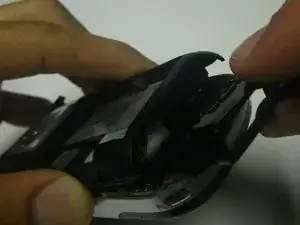

    • Remove the small plastic insert at the bottom of the phone.

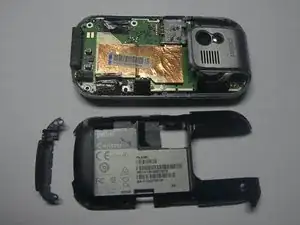

  9. RBmHxM1XqfKpK6Cj
    RBmHxM1XqfKpK6Cj
    ktMHDfwBMAirwCfR

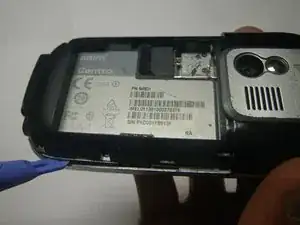

    • Continue with plastic pry tool all the way around the phone to remove the back housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
