Palm P101UNA Charger Outlet Replacement

Geschrieben von: ironwill13791
  • Kommentare: 0
Palm P101UNA Charger Outlet Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

  1. Qb5VnvQZnFD3rFF6

    • Push in the button at the bottom of the phone, and lift the back cap off.

  2. leiG2ChXPJNqKNAK

    • Remove the battery by pulling out the little tab.

  3. gcORxDV2S11NUuJe

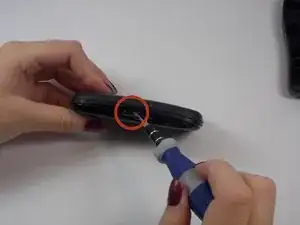

    • Turn phone over on its left side and remove single phillip's head screw using the Phillips #0 screwdriver.

  4. BNWp5f5KEtHScAnO

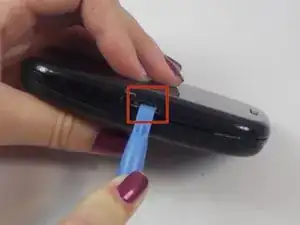

    • After screw is removed take the plastic opening tool and apply slight pressure to even out bends in the metal

  5. amtkF3tTZfDofMrX

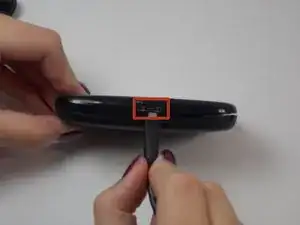

    • Insert charger to check adjustments to metal outlet

Abschluss

To reassemble your device, follow these instructions in reverse order.
