Palm P101UNA Flash Bulb Replacement

Geschrieben von: ironwill13791
  • Kommentare: 0
Palm P101UNA Flash Bulb Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will teach you how to replace the flash bulb on the back of the phone.

  1. Qb5VnvQZnFD3rFF6

    • Push in the button at the bottom of the phone, and lift the back cap off.

  2. leiG2ChXPJNqKNAK

    • Remove the battery by pulling out the little tab.

  3. BC31oN6IGBlUmFqd

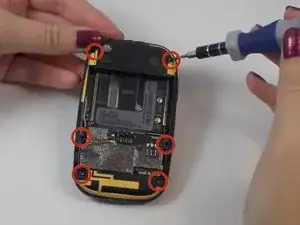

    • Using the 1.5mm hex screwdriver, remove the 6 hex screws from the inner-most casing.

  4. G6qRyJ2XFfdm2PNP

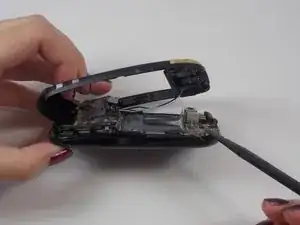

    • Using the spudger, remove the inner case from the phone.

  5. ZMv1bQgpGMGIaW1B
    ZMv1bQgpGMGIaW1B
    LwRNstxS4ZV6vNlR

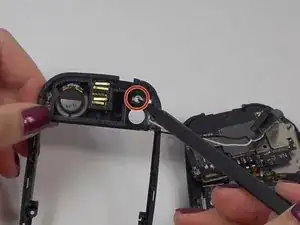

    • Using your spudger, slowly apply pressure on the bulb until it comes loose.

Abschluss

To reassemble your device, follow these instructions in reverse order.
