Palm P101UNA Speaker Replacement

Geschrieben von: ironwill13791
  • Kommentare: 0
Palm P101UNA Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. Qb5VnvQZnFD3rFF6

    • Push in the button at the bottom of the phone, and lift the back cap off.

  2. leiG2ChXPJNqKNAK

    • Remove the battery by pulling out the little tab.

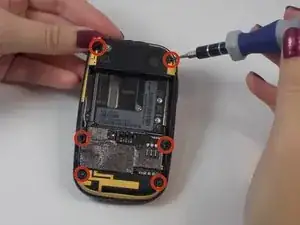

  3. U6vnObRPq3THR4Ad

    • Using the 1.5mm hex screwdriver, remove the 6 hex screws from the inner-most casing.

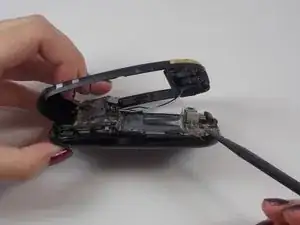

  4. FAGdmokgrXtnUQ2U

    • Using the spudger, remove the inner case from the phone.

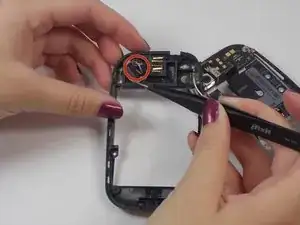

  5. FMwjIpxoayL26nNe
    FMwjIpxoayL26nNe

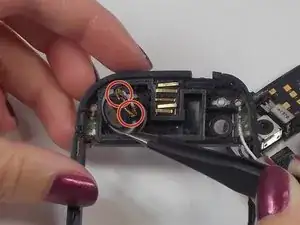

    VRHx1SmvRUDvmohK

    • Unplug the wire from the speaker using the tweezers.

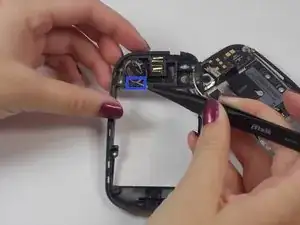

  6. HsC4jKDoJoamajRx

    • Pry out the speaker from the back of the phone using tweezers.

    • Applying pressure from the back of the speaker may help.

Abschluss

To reassemble your device, follow these instructions in reverse order.
