Palm Treo 600 Keyboard Replacement

Geschrieben von: Clement Poisson
  • Kommentare: 0
Palm Treo 600 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

Replace the keyboard!!

  1. obnTCBVjIWtTQTIZ

    • On the back of the device, locate the 3 rubber plugs, and use a plastic spudger to remove them.

  2. YAem6KvW6JpdEyP3
    YAem6KvW6JpdEyP3
    AloIJ1q3GPojNAxU

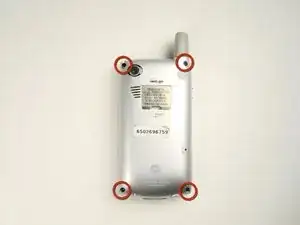

    • Use the T6 Torx Screwdriver to remove all 4 screws.

    • You have to first remove the Stylus to access the 4th screw.

  3. VIXJeTyoDDosj5KB
    VIXJeTyoDDosj5KB
    UFI6ndJ5KKRBCNdA

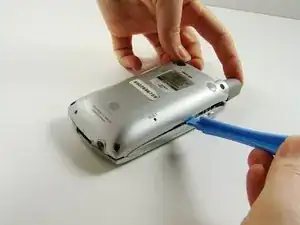

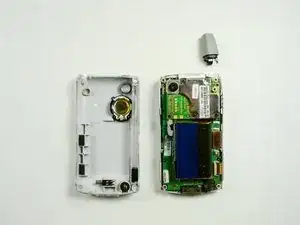

    • Using a plastic opening tool, carefully separate the front and back cases.

    • Note: The antenna will detach from the phone.

  4. BRBBQuNaJHTBdIUs
    BRBBQuNaJHTBdIUs
    ekCmuEAXoIMQgCXw

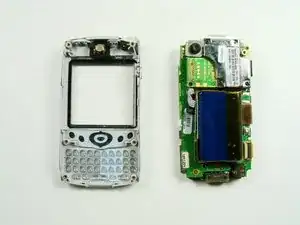

    • Using a T6 Torx Screwdriver, remove the two screws.

    • The motherboard will now be loose from the front case.

  5. al5TDMhHeGyeJNCm

    • Using the spudger, flip open the clasp that holds the data ribbon in place.

  6. kZtFTWTT4dAWOhyZ

    • Pull out the ribbon.

    • The keyboard will disconnect from the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
