Palm Treo 680 Microphone Replacement

Remove the battery cover by pressing on the small rectangular button located on the back of the phone.

Remove the battery by pulling it out towards you.

Remove the stylus in order to access the screw.

Remove the 27mm top-left screw using a T6 Torx screwdriver.

Using the spudger, remove the rubber rectangular cover located in the upper rear, right-hand corner.

Remove the 27mm screw using the T6 Torx screwdriver.

Remove the remaining two 27mm screws from the bottom using the T6 screwdriver.

Turn the phone so the screen is facing the right side.

Use a spudger to carefully separate the back panel from the front panel to access components inside the phone.

Separate the covers from the left side of the device as indicated in the picture.

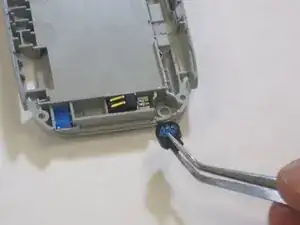

Using a pair of tweezers, grasp the blue rubber microphone.

Pull the rubber microphone up and back to remove it.

Now you have successfully removed the microphone.
