Palm Treo 680 screen replacement

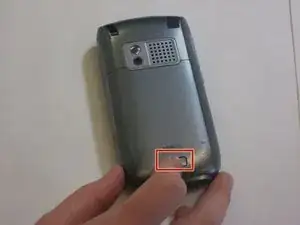

Remove the battery cover by pressing on the small rectangular button located on the back of the phone.

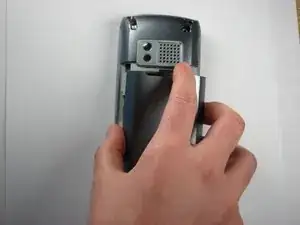

Remove the battery by pulling it out towards you.

Remove the stylus in order to access the screw.

Remove the 27mm top-left screw using a T6 Torx screwdriver.

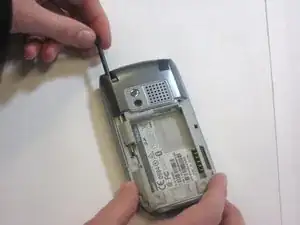

Using the spudger, remove the rubber rectangular cover located in the upper rear, right-hand corner.

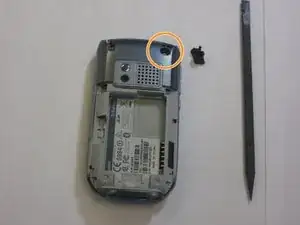

Remove the 27mm screw using the T6 Torx screwdriver.

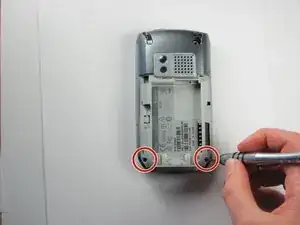

Remove the remaining two 27mm screws from the bottom using the T6 screwdriver.

Turn the phone so the screen is facing the right side.

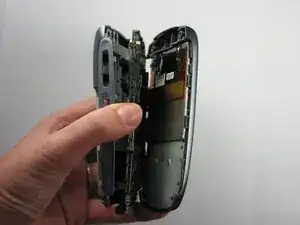

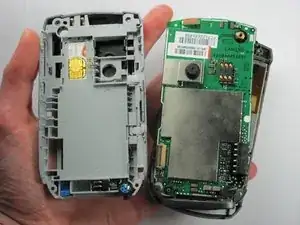

Use a spudger to carefully separate the back panel from the front panel to access components inside the phone.

Separate the covers from the left side of the device as indicated in the picture.

Take the front the pannel and notice that the screen is attached by a piece of silver tape.

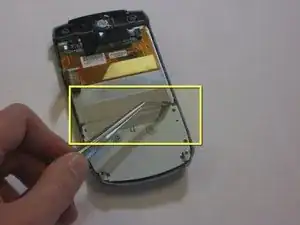

Using a pair of tweezers, carefully peel off this piece of silver tape.

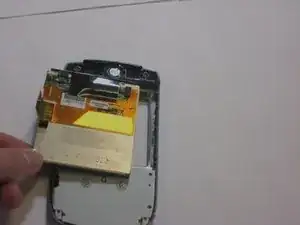

Remove the screen from the front pannel.

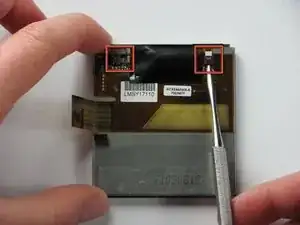

Obtain a small metal spudger and flip up the 2 tiny plastic flaps that hold the tiny orange ribbons in place.

Do the same thing for the other flap on the opposite side.

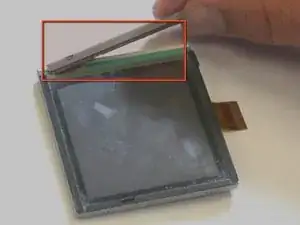

Flip the screen over a 180 degrees and take off the metal piece that cushions the screen.

Flip the screen over another a 180 degrees and place pressure on the bottom ribbon (Where my left thumb is).

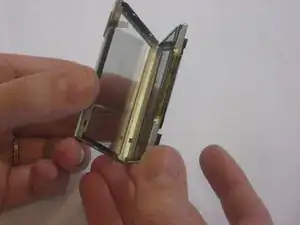

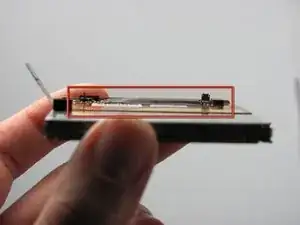

Slightly Pull apart the touch screen from the LCD screen by placing your thumbs where my thumbs are. DO NOT PULL THE TWO SCREENS COMPLETELY APART YET.

Move your thumbs to the other corner of the screen and repeat the same procedure in step 9.

Carefully peel the touch screen away from the LCD screen.

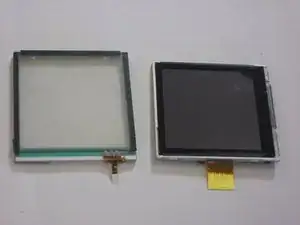

Now you should have both the touch screen and LCD screen detached from one another.
