Palm Treo 700P Antenna Replacement

Geschrieben von: John Rainier Solanzo
  • Kommentare: 0
Palm Treo 700P Antenna Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

3 - 5 Minuten

Einleitung

Follow this guide to access and remove the antenna of the cell phone.

  1. UOX5gc5TRsGJnGjr
    UOX5gc5TRsGJnGjr
    Kj6VPuIKIU5o1G6d
    KIKPyYCigtOUA2uM

    • Press the button located just above the Sprint™ logo and then slide the cover down.

  2. fEhBWSNIPBOKLXi3
    fEhBWSNIPBOKLXi3
    wtPwsS4THsNOrAED

    • Use the small notch on the left hand side of the phone to remove the battery.

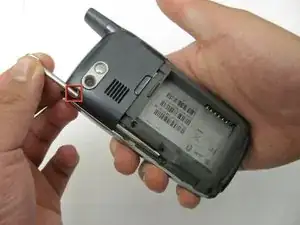

  3. aFHJbeQlAoxWlDRM

    • Remove the stylus from the phone.

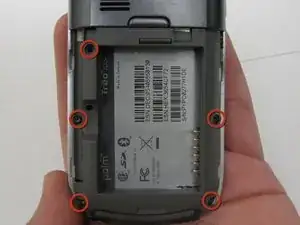

  4. kBjILK5uVEv4CB2M

    • After removing the battery and stylus, unscrew the 5 Torx screws using a T-5 Torx screw driver.

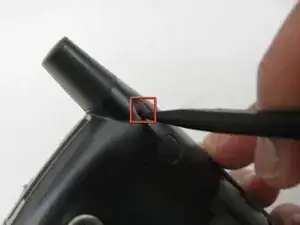

  5. 4LCTQWs4hym1JHed

    • Using the spudger, remove the small rubberized patch under the antenna.

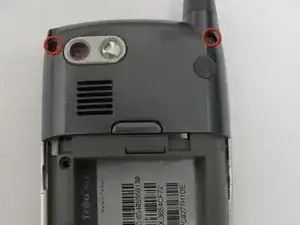

  6. UK3W2brMNCYrlyQq

    • Unscrew the last two screws using the same T-5 Torx screw driver.

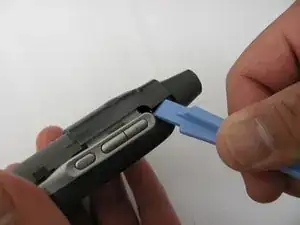

  7. BgteidDfhEc1cAWR

    • Using the plastic opening tool, carefully pry open the back case to loosen the antenna.

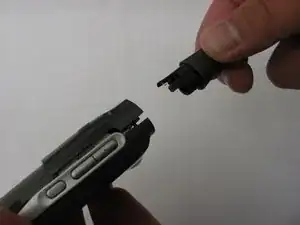

  8. YaVEUeOWb5ObHwX3

    • The antenna will now be loose, gently pull the antenna out of the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
