Palm Treo 755p Back Cover Replacement

Geschrieben von: Mike Shaw
  • Kommentare: 1
Palm Treo 755p Back Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

Remove the back cover to reveal internal components, such as the circuit board, keyboard and screen.

  1. J3BLDECfdfNTSyi6
    J3BLDECfdfNTSyi6
    UA6XZTDO2GCZZJru
    sfWSGUO1DMT5PavB

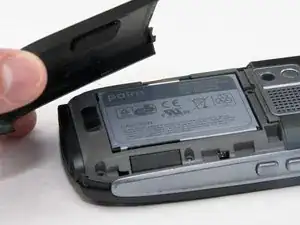

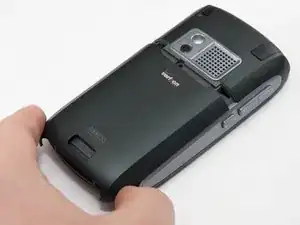

    • Press the button on the back cover to release the battery cover.

    • Slide off the battery cover.

  2. bFWILjpdx4QdLAbf
    bFWILjpdx4QdLAbf
    N11Cg24cy2sMJKii

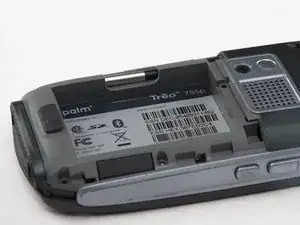

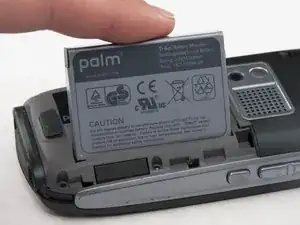

    • Remove the battery by lifting up on one side.

  3. XVbiyoI34xWUEiti
    XVbiyoI34xWUEiti
    lpqZQHVx3hC5PFNB

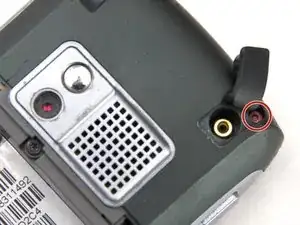

    • Remove the stylus by pulling up on the large top to reveal the top left case screw.

    • Pull away the black flap to reveal the top right case screw.

  4. mR5BuePnGU5OFcNL

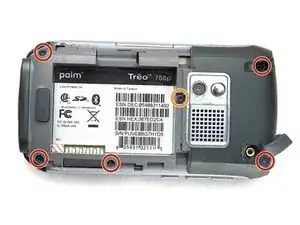

    • Use a T5 screwdriver to remove the five 7 mm black/red back case screws.

    • Use a T5 screwdriver to remove the middle 3.1 mm screw.

  5. yxFdnbFAE6Fpx2hp
    yxFdnbFAE6Fpx2hp
    KPMi3mwLsmbdBFTt

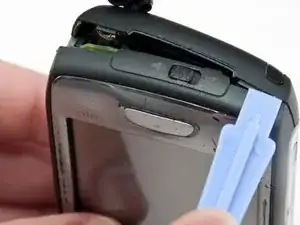

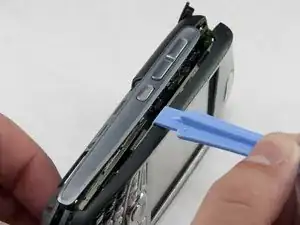

    • Use the plastic opening tool to pry open the device. Start on the volume control side (left side of the screen) and work your way up along the edge and across the top.

    • The side volume control buttons may fall out after opening the device.

  6. rNmMkKGvtmwxeRaS
    rNmMkKGvtmwxeRaS
    WUjoSNIjX3RaikGm

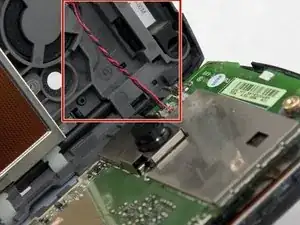

    • Slowly unfold the back casing away from the front casing revealing the red and black wound wire speaker cable, marked by the red box.

    • Potential for device damage: Be gentle while separating the halves to prevent breaking the red and black wound wire speaker cable that bridges both halves.

    On units that have not been opened, the wires are often held to the silver plate on the right by yellow tape. Carefully remove the yellow tape first. Save the tape if it can be reused. If it cannot be reused, you can leave the wires as shown, when you reinstall the connector, or you can use a new piece of yellow tape to fasten the wires to the silver plate as they were originally fastened.

    Wm Neal Lewis -

  7. uGNcTYMiPAMfuU1t
    uGNcTYMiPAMfuU1t
    YmsB4JypjNLIDQCV
    j4ikIvZVII6Vl6pm

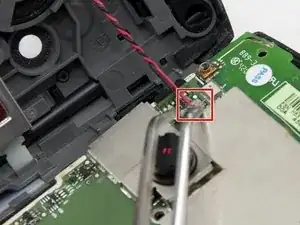

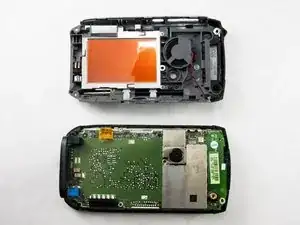

    • Using tweezers, squeeze the plastic head of the black and red wound wire cable. This will detach the cable from the circuit board and fully separate the two halves.

Abschluss

To reassemble your device, follow these instructions in reverse order.
