Remove the keyboard in order to replace the rubber button pad, keypad, or keyboard circuit.

  1. J3BLDECfdfNTSyi6
    J3BLDECfdfNTSyi6
    UA6XZTDO2GCZZJru
    sfWSGUO1DMT5PavB
    • Press the button on the back cover to release the battery cover.

    • Slide off the battery cover.

  2. bFWILjpdx4QdLAbf
    bFWILjpdx4QdLAbf
    N11Cg24cy2sMJKii
    • Remove the battery by lifting up on one side.

  3. XVbiyoI34xWUEiti
    XVbiyoI34xWUEiti
    lpqZQHVx3hC5PFNB
    • Remove the stylus by pulling up on the large top to reveal the top left case screw.

    • Pull away the black flap to reveal the top right case screw.

  4. mR5BuePnGU5OFcNL
    • Use a T5 screwdriver to remove the five 7 mm black/red back case screws.

    • Use a T5 screwdriver to remove the middle 3.1 mm screw.

  5. yxFdnbFAE6Fpx2hp
    yxFdnbFAE6Fpx2hp
    KPMi3mwLsmbdBFTt
    • Use the plastic opening tool to pry open the device. Start on the volume control side (left side of the screen) and work your way up along the edge and across the top.

    • The side volume control buttons may fall out after opening the device.

  6. rNmMkKGvtmwxeRaS
    rNmMkKGvtmwxeRaS
    WUjoSNIjX3RaikGm
    • Slowly unfold the back casing away from the front casing revealing the red and black wound wire speaker cable, marked by the red box.

    • Potential for device damage: Be gentle while separating the halves to prevent breaking the red and black wound wire speaker cable that bridges both halves.

    On units that have not been opened, the wires are often held to the silver plate on the right by yellow tape. Carefully remove the yellow tape first. Save the tape if it can be reused. If it cannot be reused, you can leave the wires as shown, when you reinstall the connector, or you can use a new piece of yellow tape to fasten the wires to the silver plate as they were originally fastened.

    Wm Neal Lewis -

  7. uGNcTYMiPAMfuU1t
    uGNcTYMiPAMfuU1t
    YmsB4JypjNLIDQCV
    j4ikIvZVII6Vl6pm
    • Using tweezers, squeeze the plastic head of the black and red wound wire cable. This will detach the cable from the circuit board and fully separate the two halves.

  8. FWXgJQPikCTkpnDD
    • Gently peel off the protective yellow tape covering the ribbon cable using tweezers or your fingers.

    • ATTENTION: Save the tape for reassembly.

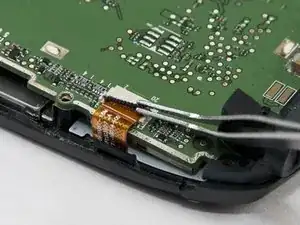

  9. wcOx3PVeiu2qmsgL
    wcOx3PVeiu2qmsgL
    IVxIg21HbaGSBdgL
    • Using tweezers flip up the black plastic snap covering the small ribbon cable.

    • Using tweezers gently pull out the ribbon cable to detach it from the circuit board.

  10. AoCCMShEdXOcfCLQ
    • With the screen facing down. Use the Phillips 00 screwdriver attachment to remove the silver, 0.124 inch long screw on the left side of the circuit board above the ribbon cable.

    • WARNING: Do not over-tighten the screw during reassembly.

  11. CvouA6RCB5TZlTMK
    CvouA6RCB5TZlTMK
    AAGUMyVDH1KZVOUV
    QO2sxdjp6XilwqYY

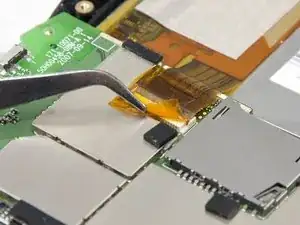

    • Pivot the circuit board away from the casing keeping the screen face down.

    • Gently peel away the tape holding the ribbon cable to the screen.

    • ATTENTION: Save the tape for reassembly.

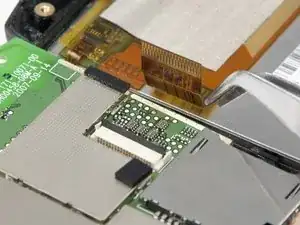

  12. MnDwgsKBC2XGTjSc
    MnDwgsKBC2XGTjSc
    ghpTGGoLkVweEFgj

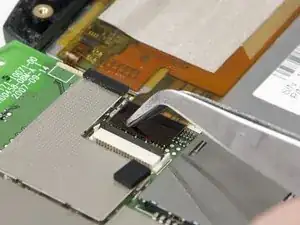

    • Using tweezers flip up the black plastic snap covering the ribbon cable attached to the screen.

    • Gently pull out the ribbon cable freeing the circuit board from the casing.

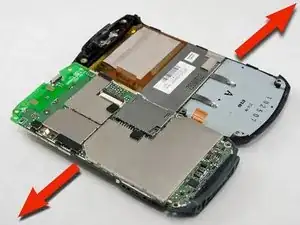

  13. GFQPSmLBJCLxhCXL
    GFQPSmLBJCLxhCXL
    GWdQFDPt6aqknyaB
    • Separate the circuit board from front cover.

  14. TQHl6ZOeWHpBCZIU
    TQHl6ZOeWHpBCZIU
    WmOxHqBOIjdS3pXM

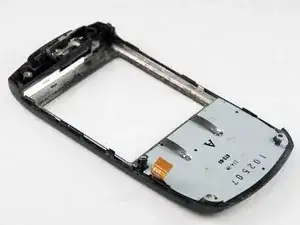

    • Using your fingers gently lift the display screen panel out of the casing by either grasping it from the back or popping it out of the front.

  15. CadkSNpncGFsauXA
    • Using the Phillips 00 screwdriver attachment remove the two silver, 0.121 inch long screws connecting the keypad to the casing.

    • WARNING: Do not over-tighten the screws during reassembly or the keyboard will not work properly.

  16. hbPBJOaHdvBuftRb

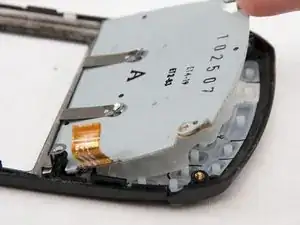

    • Lift the metal keyboard backing from underneath the metal straps and slide it out backwards away from the casing.

  17. f4M4oHRI6HYxSOJF

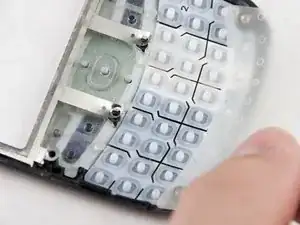

    • Lift up and remove the transparent rubber key liner.

  18. B31rHYrIZq4E2EPc
    B31rHYrIZq4E2EPc
    ClNlab1qWSArxhxx
    SlRvOuLV1RCuqUji

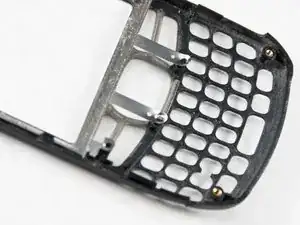

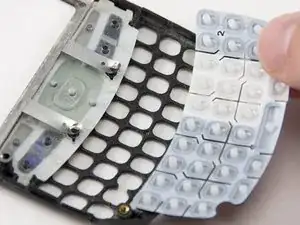

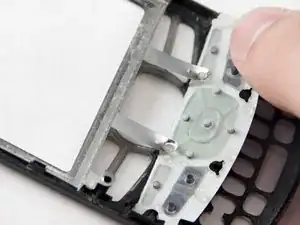

    • Lift up and remove the rubber keypad and button pads.

Abschluss

To reassemble your device, follow these instructions in reverse order.
