Palm Zire 21 Screen Replacement

Geschrieben von: Jeremy Craft
  • Kommentare: 0
Palm Zire 21 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to replace a screen on a Palm Zire 21

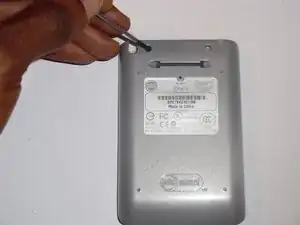

  1. mdfpDgGBVBXMHB2x
    mdfpDgGBVBXMHB2x
    wevt41nX4Pk1pcEV

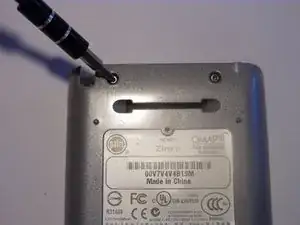

    • Remove the two 0.8mm screws located on the back of the device.

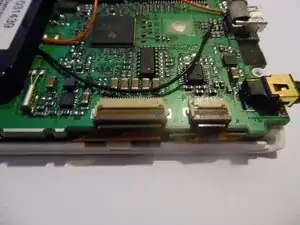

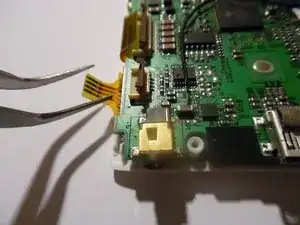

  2. 1Fdt6FEUL3DkyaFu
    1Fdt6FEUL3DkyaFu
    oT2gLrZcUY25vEKK
    BAyG6mutOAy6LgaG

    •  Using tweezers, or something similar flip up the tab, releasing the wires located under the flap

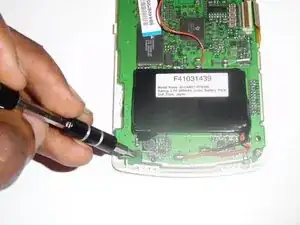

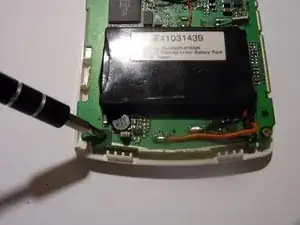

  3. pntvZjUB51BPwIDs
    pntvZjUB51BPwIDs
    GgBFaYgOPOvwxQtn

    • Using a Philips head screwdriver, remove the two screws located at the bottom of the board.

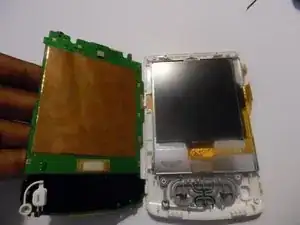

  4. VYXNGDAVQ6f6a2Jc
    VYXNGDAVQ6f6a2Jc
    u6YStwxUXJNcXJ3O

    • Gently, remove the motherboard by lifting up exposing the screen.

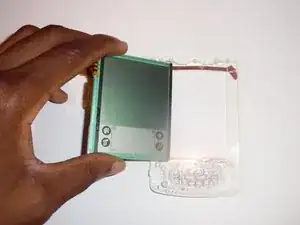

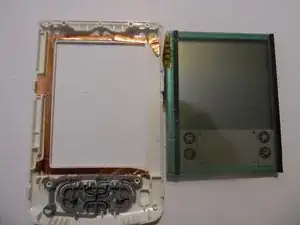

  5. VGQ3xKsmwhMQSWmZ
    VGQ3xKsmwhMQSWmZ
    TgkXslRrEKWZufjs

    • Carefully, remove the screen from the device by lifting up and replacing with a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
