Palm Zire m150 Battery Replacement

Geschrieben von: Kate
  • Kommentare: 1
Palm Zire m150 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

If battery is faulty or needs replacement, follow these simple steps to replace.

  1. T2cWyNS2F2irIoRK
    T2cWyNS2F2irIoRK
    ZjDGXInuDpUNeAPK

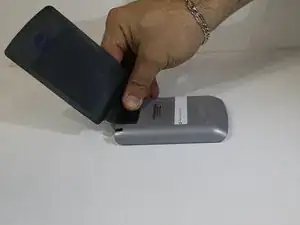

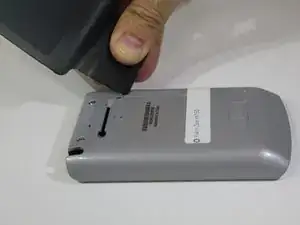

    • To begin, gently pull on the flap to remove.

  2. qEfwQA5NuAXOOGgb

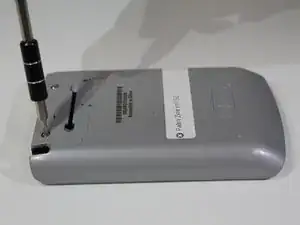

    • Use T6 bit of screwdriver provided in the iFixit toolkit. Unscrew the two screws at the top of the device.

  3. 4B2lgBYETp5OqEqV
    4B2lgBYETp5OqEqV
    5MBNQ1aC3H2xXh2S

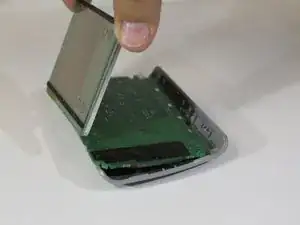

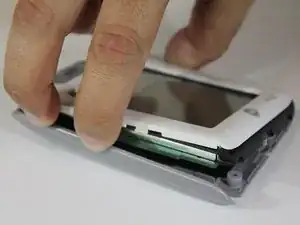

    • Carefully remove the back panel of the device.

  4. typfdY2YRAnhOwSG
    typfdY2YRAnhOwSG
    6HmwqgqwbnxHPVCr

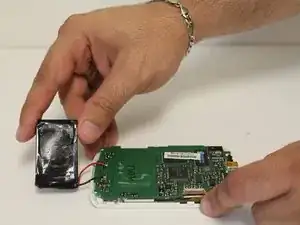

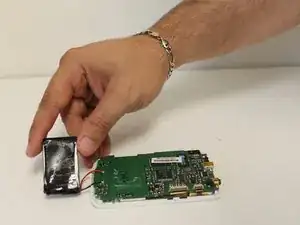

    • Gently remove the battery from the phone.

  5. KmkZT2xBwQHVg6wS

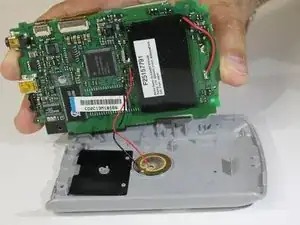

    • Insert new battery where old battery was.

    • To reassemble your device, follow these steps in reverse order

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Kate

Mitglied seit: 26/01/16

528 Reputation

Ein Kommentar

Why is nothing said about soldering of battery terminals, which I read elsewhere as a requirement?

Carlton Barnett -
